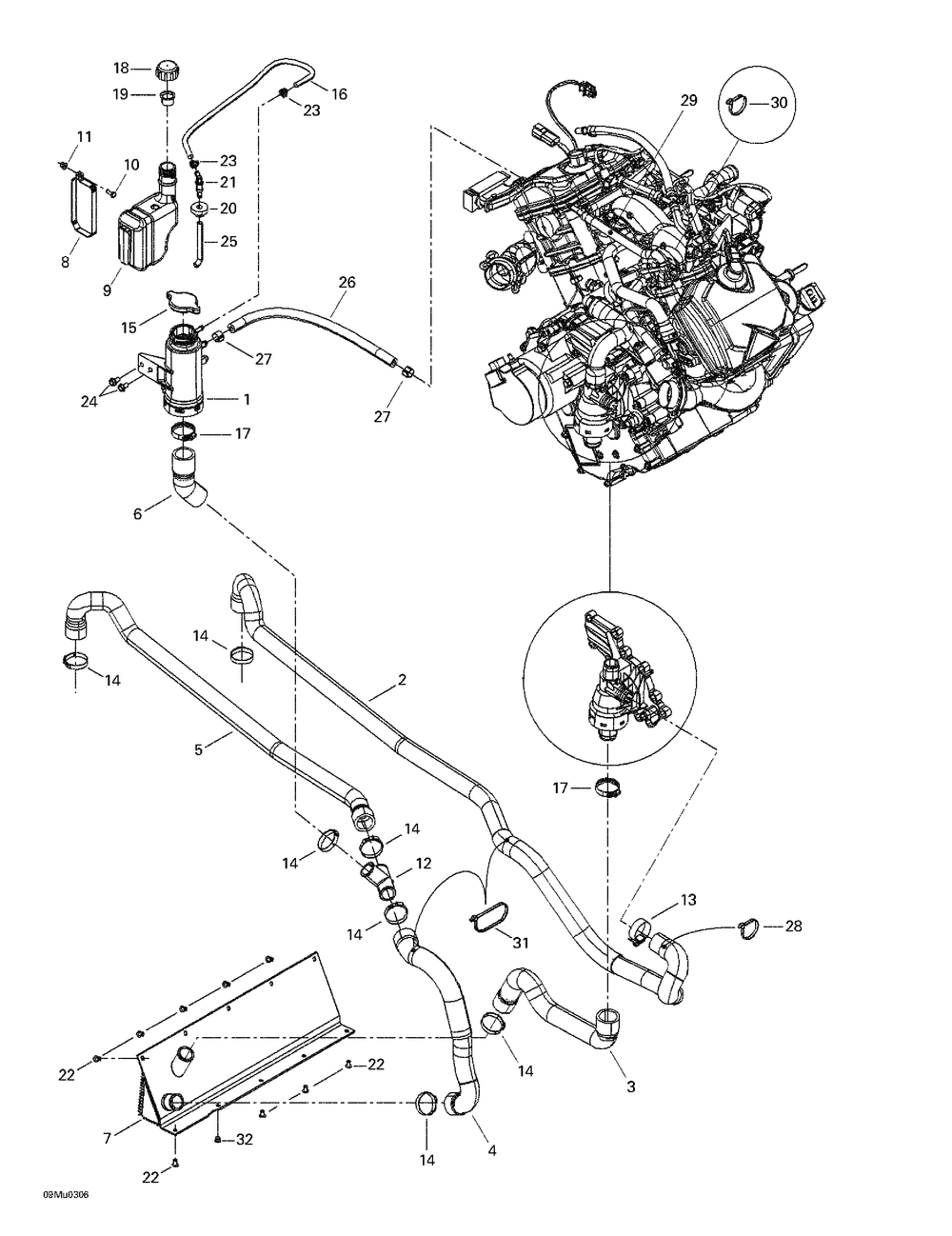

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FILLER NECK ASS Y | 1 | |
| 2 | OUTLET HOSE | 1 | |
| 3 | INLET HOSE | 1 | |
| 4 | BOYAU RAD. AV *RADIATOR HOSE FRONT | 1 | |
| 5 | REAR HOSE RADIATOR | 1 | |
| 6 | TANK HOSE | 1 | |
| 8 | COOLANT TANK SUPPORT | 1 | |
| 9 | COOLANT TANK | 1 | |
| 10 | HEX. SCREW M5 X 12 (10.000 per pack) | 1 | |
| 11 | FLANGED ELASTIC NUT M5 (4.000 per pack) | 1 | |
| 12 | T-Fitting | 1 | |
| 13 | TRIDON GEAR CLAMP (10.000 per pack) | 1 | |
| 14 | Oetiker Gear Clamp | 7 | |
| 15 | Pressure Cap | 1 | |
| 16 | POLYURETHANE HOSE 5.2 MM (30.000 per pack) | 0 | |
| 17 | TRIDON GEAR CLAMP (5.000 per pack) | 2 | |
| 18 | TANK CAP | 1 | |
| 19 | PROTECTION CAP | 1 | |
| 20 | GROMMET | 1 | |
| 21 | ELBOW MALE CONNECTOR (5.000 per pack) | 1 | |
| 22 | Pop Rivet 3/16" | 9 | |
| 23 | Spring Clamp | 2 | |
| 24 | Hex. Flanged Screw M6 X 12 | 2 | |
| 26 | BOYAU 8MM *HOSE-8MM (3.000 per pack) | 0 | |
| 27 | Oetiker Clamp | 2 | |
| 28 | Tie-Rap 180 mm | 1 | |
| 29 | Tubing 16 mm | 0 | |
| 30 | Tie-Rap 142 mm | 1 | |
| 31 | Tie-Rap 350 mm | 1 | |
| 32 | Pop Rivet 3/16" | 1 |
