SKI-DOO MX Z 500/600/600 HO/700/800 MX Z 500/600/600 HO/700/800 01- Crankshaft And Pistons

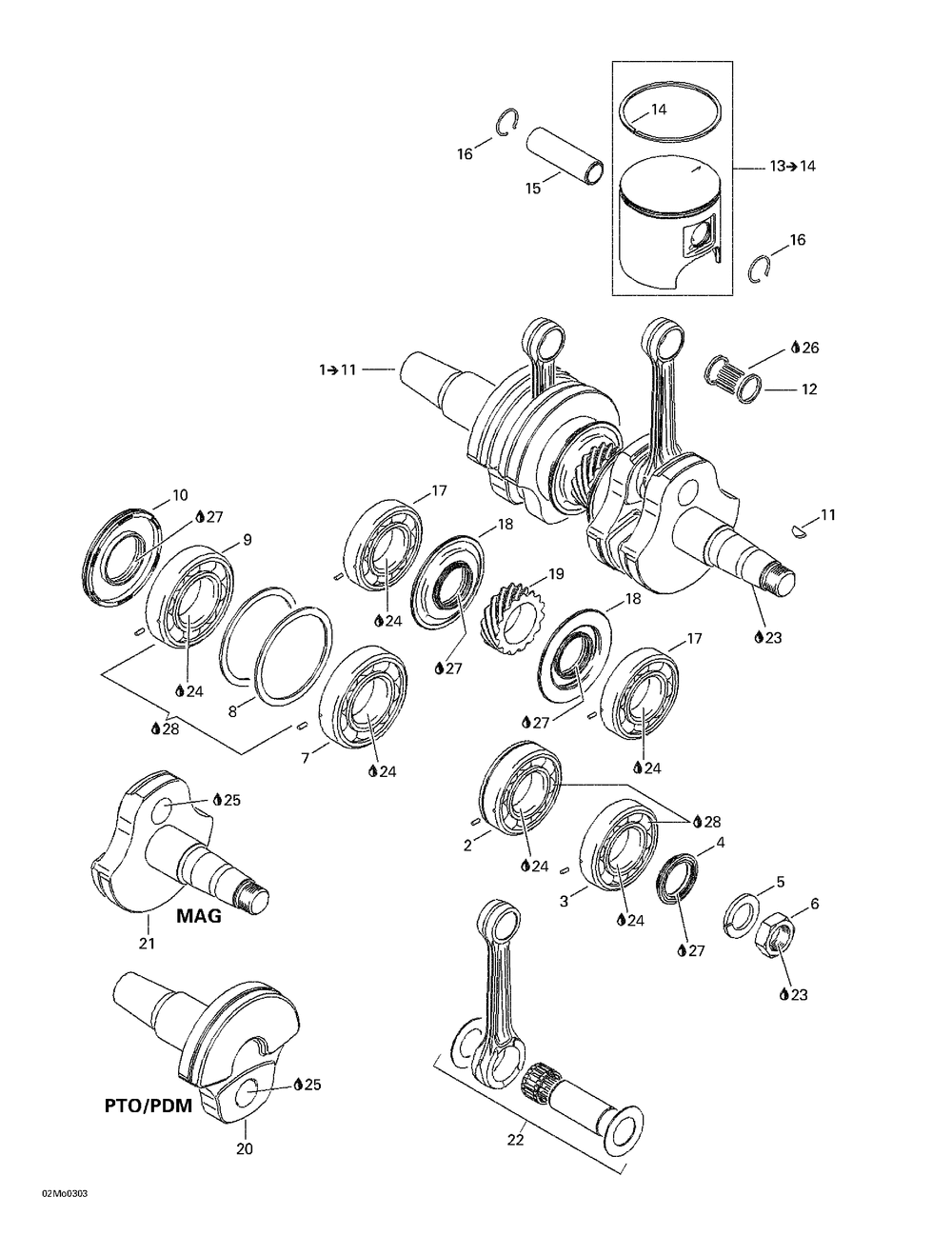

01- Crankshaft And Pistons
№ Наименование Примечание Кол-во
SEMI-TRAPEZ RING STANDARD 2
VILEBREQUIN PTO*CRANKSHAFT-PTO 1
NEEDLE BEARING 2
SEMI-TRAPEZ RING 2
SEMI-TRAPEZ RING 800 SDI 2
GUDGEON PIN (2.000 per pack) 2
OVERSIZE SEMI-TRAPEZ RING 69.75 MM MX Z 500. 0
BALL BEARING 1
SEMI-TRAPEZ RING 1ST 0
SEMI-TRAPEZ RING 2
CRANKSHAFT PTO 1
CRANKSHAFT MAG SIDE 1
CRANKSHAFT MAG 1
PISTON ASS Y WITH RINGS 71.87 MM INCLUDES ITEMS 13 TO 14 2
ENS.TIGE REP. *KIT-ROD REPAIR MAG-SIDE 1
ENS.TIGE REP. *KIT-ROD REPAIR PTO-SIDE 1
BALL BEARING 6208 1
BALL BEARING 6208 MX Z 800. 1
REBUILD-CRANKSHAFT 693/593HO MX Z 600. 1
CENTRAL GEAR 1
PISTON CIRCLIP (5.000 per pack) 4
PISTON ASStahos_Y 1 RING 77.88 MM INCLUDES ITEMS 13 TO 14 2
REBUILD-CRANKSHAFT 793 MX Z 800. 1
OVERSIZE PISTON ASStahos_Y 1 RING 69.65 MM MX Z 500. 0
PISTON ASStahos_Y 75.88 MM STANDARD Includes 13 to 14 2
ROD REPAIR KIT PTO SIDE MX Z 500. 1
BALL BEARING MX Z 600. 1
BALL BEARING MX Z 600. 1
RONDELLE *WASHER 2
PISTON 8187 *PISTON-ASSY 8187 MX Z 800. 2
OIL SEAL 2
CRANKSHAFT ASS Y MX Z 600. 1
OIL SEAL 1
PISTON ASStahos_Y 76.13 MM OVERSIZE Includes 13 to 14 0
PISTON PIN 2
ROD REPAIR KIT MAG SIDE 1
ROD REPAIR KIT PTO SIDE 1
1 REBUILD-CRANKSHAFT 493 2003 Includes 1 - 11. MX Z 500. 1
2 BALL BEARING MX Z 500. MX Z 600. 1
3 BALL BEARING 6206 1
4 OIL SEAL 1
5 RONDELLE-FREIN *WASHER-LOCK 22 (10.000 per pack) 1
6 HEX. NUT M22 X 1.5 1
8 RETAINING DISK 2
10 OIL SEAL 550 F. 1
11 WOODRUFF KEY (10.000 per pack) 1
12 NEEDLE BEARING 2
13 PISTON ASStahos_Y 1 RING 69.40 MM Includes 13 - 14. MX Z 500. 2
14 SEMI-TRAPEZ RING 69.50 MM MX Z 500. 2
15 GUDGEON PIN 2
16 PISTON CIRCLIP (10.000 per pack) 4
18 OIL SEAL 2
19 CENTRAL GEAR 15 TEETH 1
20 CRANKSHAFT PTO SIDE MX Z 500. MX Z 600. 1
21 CRANKSHAFT MAG SIDE 1
22 ROD REPAIR KIT MAG SIDE MX Z 500. 1
23 LOCTITE 243 10 ML 0
24 LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ 0
25 LOCTITE 648 10 ML 0
26 HUILE 2T 12X1 *OIL 2T 12X1 MINERAL (12.000 per pack) 0
27 PETAMO GREASE GHY133N 400 G 0
28 ISOFLEX GREASE TOPAS NB52 50 G 0
