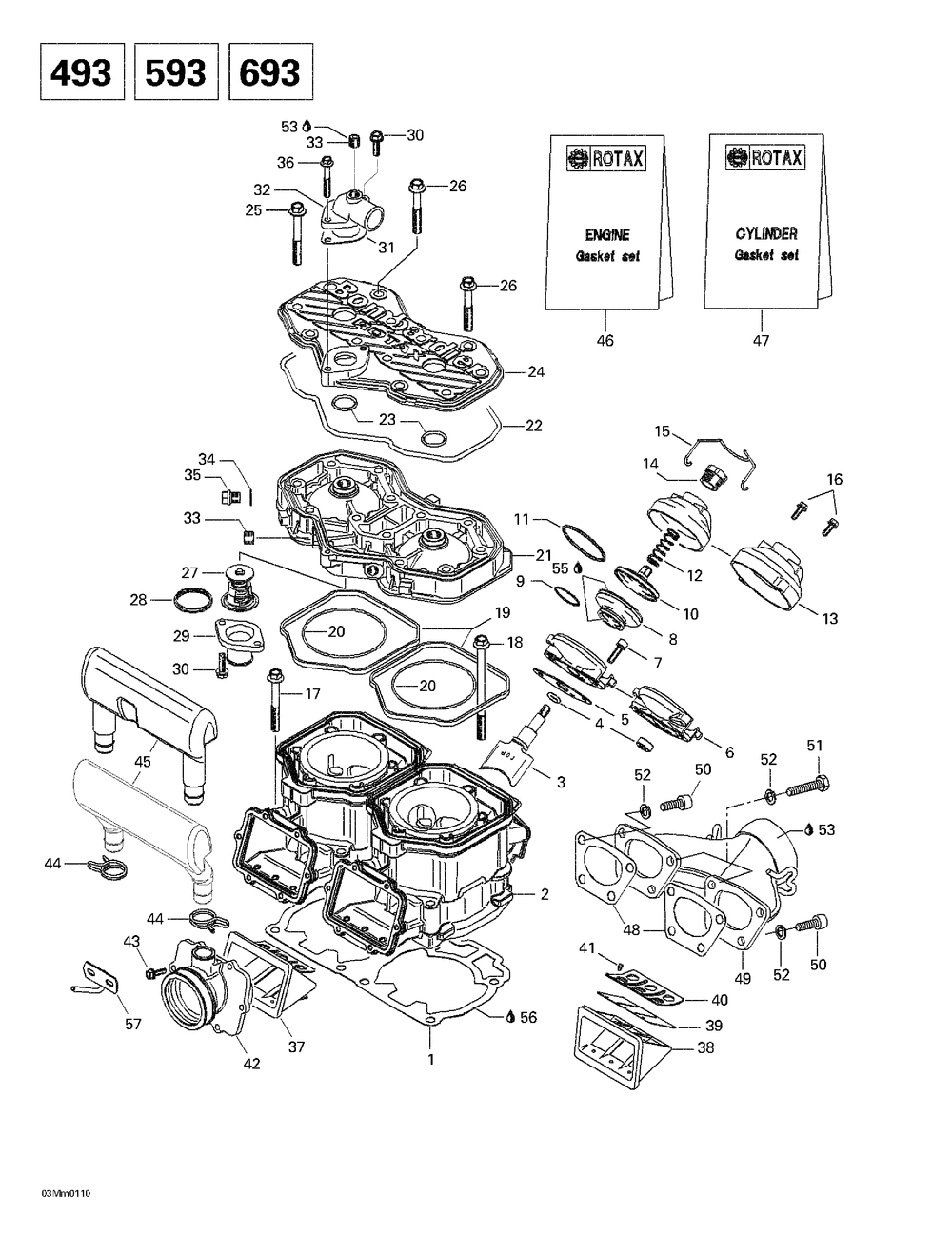

SKI-DOO MX Z 500/600/700 MX Z 500/600/700 01- Cylinder Exhaust Manifold Reed Valve
01- Cylinder Exhaust Manifold Reed Valve
№ Наименование Примечание Кол-во
CARBURETOR SOCKET MX-Z 600. 2
Socket Head Screw M6 X 25 8
ENS.JOINT ETANC*KIT-GASKET ENGINE MX-Z 600. 1
CARBURETOR SOCKET MX-Z 700. 2
WASHER-LOCK BLACK DIN.127B (10.000 per pack) 8
SPRING (5.000 per pack) 2
O-RING 2
EXHAUST VALVE MX-Z 600. 2
CYLINDER WITH SLEEVE MX-Z 600. 2
JOINT *GASKET 2
REED PEDAL STOP 2
OIL SEAL (5.000 per pack) 2
CYLINDER GASKET SET MX-Z 700. 1
JOINT *GASKET 0.6MM 0
DOUBLE GASKET 0.6 MM MX Z 500. 0
ENS.JOINT ETANC*KIT-GASKET ENGINE MX-Z 700. 1
ENS.JOINT ETANC*SET-GASKET CYLINDER MX-Z 600. 1
CYLINDER HEAD 1
EXHAUST VALVE 2
HEX. SCREW M8 X 68.5 (5.000 per pack) 8
JOINT *GASKET 0.8MM 0
JOINT *GASKET 0.7MM 0
JOINT *GASKET 0.5MM 0
DOUBLE GASKET 0.8 MM 0
JOINT *GASKET (6.000 per pack) 2
JOINT 0.7 *GASKET 0.7 0
VALVE HOUSING 2
EXHAUST VALVE 2
JOINT 0.6 *GASKET 0.6 0
INTAKE RESONATOR 1
JOINT 0.5 *GASKET 0.5 0
DOUBLE GASKET 0.5 MM MX Z 500. 0
EXHAUST MANIFOLD 600 1
TETE-CYLINDRE *HEAD-CYLINDER Summit 700. 1
DOUBLE GASKET 0.7 MM MX Z 500. 0
REED PEDAL 6
O-RING 2
1 DOUBLE GASKET 0.8 MM MX Z 500. 0
2 CYLINDER WITH SLEEVE MX-Z 500. 2
3 EXHAUST VALVE MX Z 500. 2
4 O-RING (10.000 per pack) 2
5 JOINT *GASKET (5.000 per pack) 2
7 SOCKET HEAD SCREW M6 X 20 (10.000 per pack) 4
8 EXHAUST BELLOWS MX Z 500. MX Z 600. MX Z 700. 2
9 SPRING CLAMP (5.000 per pack) 2
10 EXHAUST VALVE 2
11 HOSE SPRING 2
12 SPRING (5.000 per pack) 2
13 VALVE COVER Legend 500. 2
14 ADJUSTER SCREW 2
15 SPRING CLIP MX-Z 500. (2.000 per pack) 2
16 SCREW-TAPPING M5 X 20 (10.000 per pack) 4
17 SCREW-HEX COLLAR 4
18 SCREW-HEX COLLAR 4
19 RUBBER RING 2
20 O-RING MX Z 500. (3.000 per pack) 2
22 O-RING MX Z 500. MX Z 600. MX Z 700. 1
23 O-Ring 2
24 CYLINDER HEAD COVER 1
25 HEX. COLLAR SCREW M8 X 65 10
26 HEX. SCREW M8 X 56.5 2
27 THERMOSTAT Skandic 600. 1
28 SEALING RING 1
29 BENT OUTLET SOCKET 1
30 SCREW-TAPPING 3
31 JOINT *GASKET 1
32 BENT OUTLET SOCKET 1
33 PLUG SCREW 2
36 HEX. COLLAR SCREW M6 X 40 (5.000 per pack) 1
37 REED VALVE ASS Y Includes 23 to 27 2
39 REED PEDAL 2
40 REED PEDAL STOP 6
41 PHILLIPS SCREW M3 X 5 (10.000 per pack) 6
42 CARBURETOR SOCKET 2
43 TAPPING SCREW M5 X 16 (10.000 per pack) 12
44 CLAMP 2
45 INTAKE RESONATOR 1
46 ENGINE GASKET SET Grand Touring 500. 1
47 CYLINDER GASKET SET MX Z 500. 1
48 JOINT *GASKET 500 MX Z 500. 2
49 EXHAUST MANIFOLD 500 MX Z 500. 1
50 Socket Head Screw M8 X 25 6
51 HEX. SCREW M8 X 20 (10.000 per pack) 2
52 WASHER-LOCK DIN.127B (50.000 per pack) 8
53 SEALANT LOCTITE 80 ML Grand Touring 500. Grand Touring 600. 0
54 LOCTITE 243 10 ML 0
55 DOW CORNING 111*DOW CORNING 111 0
56 LOCTITE 518 50 ML 0
57 ATTACHE CARB.SO*BRACKET-CARB.WELD MX-Z 600. MX-Z 700. 1
