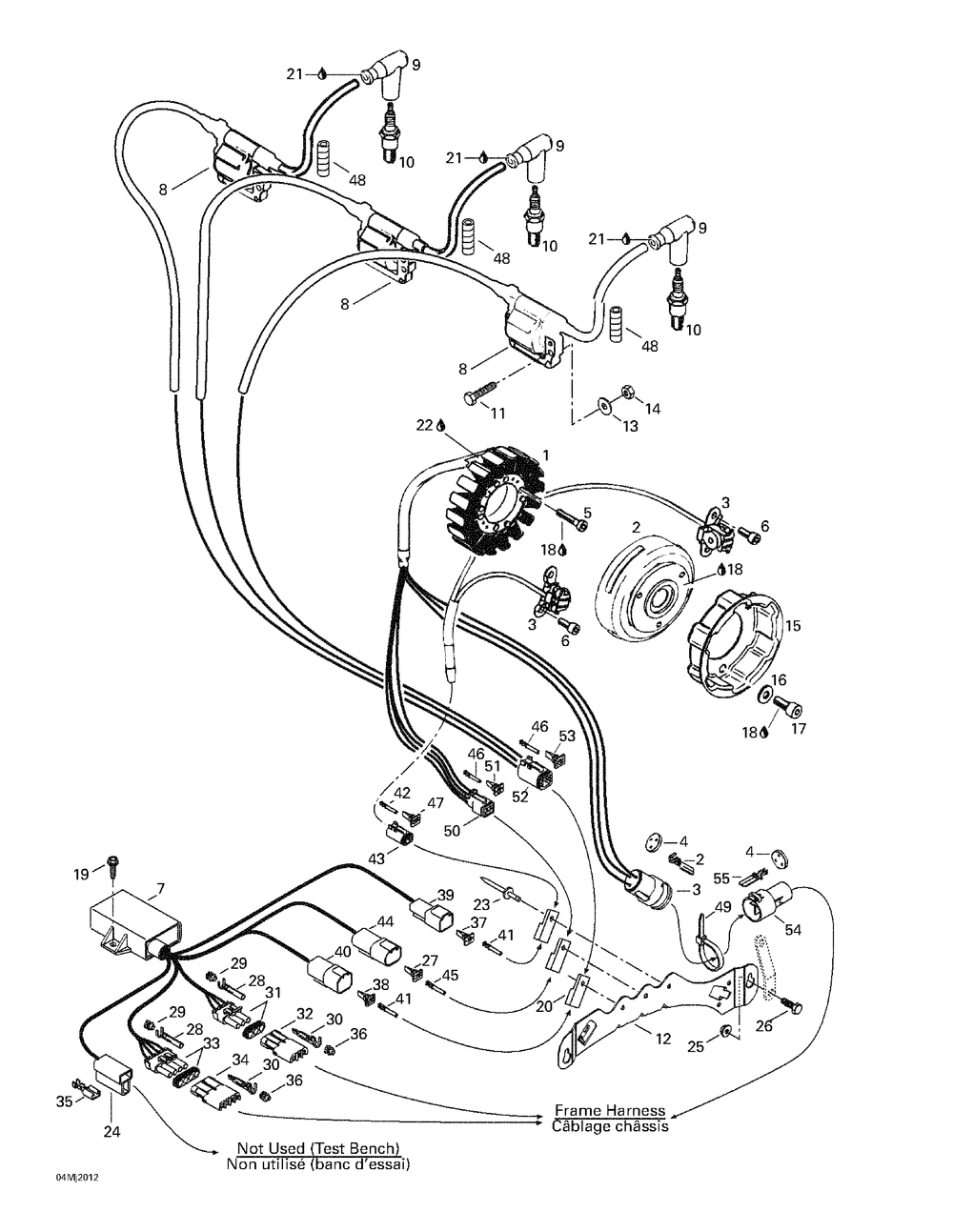

03- Magneto 12V 290W

№	Наименование	Кол-во
1	PLAQUE REACTEUR*PLATE-STATOR A Includes 1 - 7.	1
4	JOINT *SEAL	0
5	SOCKET HEAD SCREW M6 X 30 (10.000 per pack)	3
6	Allen Screw M6 X 14	4
9	SPARK PLUG CAP	3
10	SPARK PLUG NGK BR9ES (10.000 per pack)	3
11	HEX. SCREW M6 X 20 (10.000 per pack)	6
13	WASHER-LOCK DIN.128 (10.000 per pack)	6
14	Hex. Nut M6	6
15	POULIE DEMARRAG*PULL.STARTING	1
16	FLAT WASHER (3.000 per pack)	3
17	SOCKET HEAD SCREW M8 X 12 (10.000 per pack)	3
18	LOCTITE 243 10 ML	0
19	Hex. Flanged Plastite Screw M4.8 X 16	2
20	Clip	3
21	DIELECTRIC GREASE 150 G	0
24	FEMALE TERMINAL HOUSING 24 CIRCUITS (10.000 per pack)	0
25	FLANGED ELASTIC NUT M5 (4.000 per pack)	2
26	HEX. SCREW M5 X 14 (10.000 per pack)	2
27	MALE LOCK 4 CIRCUITS	0
28	FEMALE TERMINAL (5.000 per pack)	0
29	Wire Seal	0
30	Male Terminal	0
31	MALE HOUSING 3 CIRCUITS	0
32	FEMALE TERMINAL HOUSING 3 CIRCUITS (5.000 per pack)	0
33	MALE HOUSING 4 CIRCUITS (5.000 per pack)	0
34	BLOC 4 CIRC.FEM*HOUSING-TAB	0
36	JOINT DE FIL *SEAL-WIRE (5.000 per pack)	0
37	FEMALE WEDGE 4 CIRCUITS (10.000 per pack)	0
38	CALE 6 CIRC.FEM*WEDGE-6 WAYS F (5.000 per pack)	0
39	FEMALE HOUSING 4 CIRCUITS	0
41	MALE TERMINAL (10.000 per pack)	0
42	Female Terminal	0
43	MALE CONNECTOR 4 CIRCUITS	0
44	MALE TERMINAL HOUSING 4 CIRCUITS	0
45	MALE TERMINAL (10.000 per pack)	0
46	FEMALE TERMINAL (5.000 per pack)	0
47	CALE 4 CIRC.MAL*WEDGE-4 WAYS M (10.000 per pack)	0
48	TUBING 10 MM	0
49	Tie-Rap 180 mm	1
52	MALE CONNECTOR 6 CIRCUITS	0
53	MALE LOCK 6 CIRCUITS (5.000 per pack)	0
54	MALE HOUSING	1
55	MALE TERMINAL (25.000 per pack)	3
