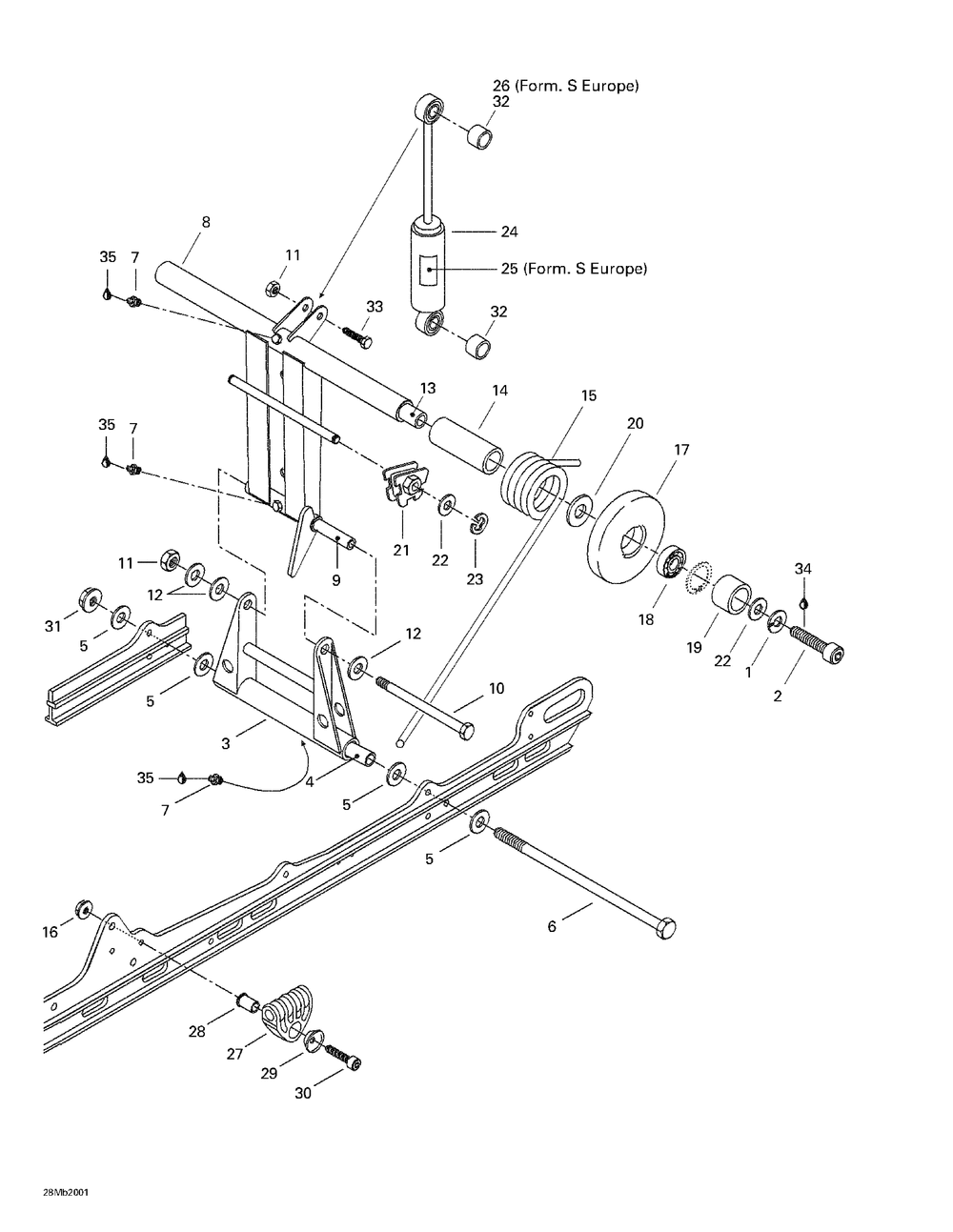

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| RH ADJUST CAM | 1 | ||
| LH SPRING | 1 | ||
| 1 | Helicoidal Lock Washer M10 | 2 | |
| 2 | SOCKET SCREW M10 X 35 (10.000 per pack) | 2 | |
| 3 | PIVOT ARM | 1 | |
| 5 | FLAT WASHER (10.000 per pack) | 4 | |
| 6 | BOLT M8 X 248MM | 1 | |
| 7 | GREASE FITTING (10.000 per pack) | 3 | |
| 9 | UPPER AXLE PIVOT ARM | 1 | |
| 10 | BOLT M8 SHORT | 1 | |
| 11 | Hex. Elastic Stop Nut M8 | 2 | |
| 12 | Flat Washer 8 mm | 3 | |
| 14 | DOUILLE *BUSHING | 2 | |
| 15 | RH SPRING | 1 | |
| 16 | Hex. Flanged Elastic Nut M8 | 2 | |
| 17 | ROUE SUPPORT *WHEEL-IDLER Includes 15 - 16. | 2 | |
| 18 | BALL BEARING | 2 | |
| 20 | RONDELLE *WASHER (5.000 per pack) | 2 | |
| 21 | LH ADJUST CAM | 1 | |
| 22 | Flat Washer 10 mm | 4 | |
| 24 | AMORTISSEUR *SHOCK | 1 | |
| 26 | CUSHION (5.000 per pack) | 2 | |
| 27 | SPRING SUPPORT | 2 | |
| 28 | SPRING GUIDE AXLE | 2 | |
| 29 | COUSSINET RETEN*CUSHION-RETAIN. | 2 | |
| 30 | SOCKET HEAD SCREW M8 X 45 (25.000 per pack) | 2 | |
| 32 | CUSHION Model-LE & SE (2.000 per pack) | 2 | |
| 33 | HEX. SCREW M8 X 40 (10.000 per pack) | 1 | |
| 34 | LOCTITE 243 10 ML | 0 | |
| 35 | SUSPENSION GREASE 10 X 400 G | 0 |
