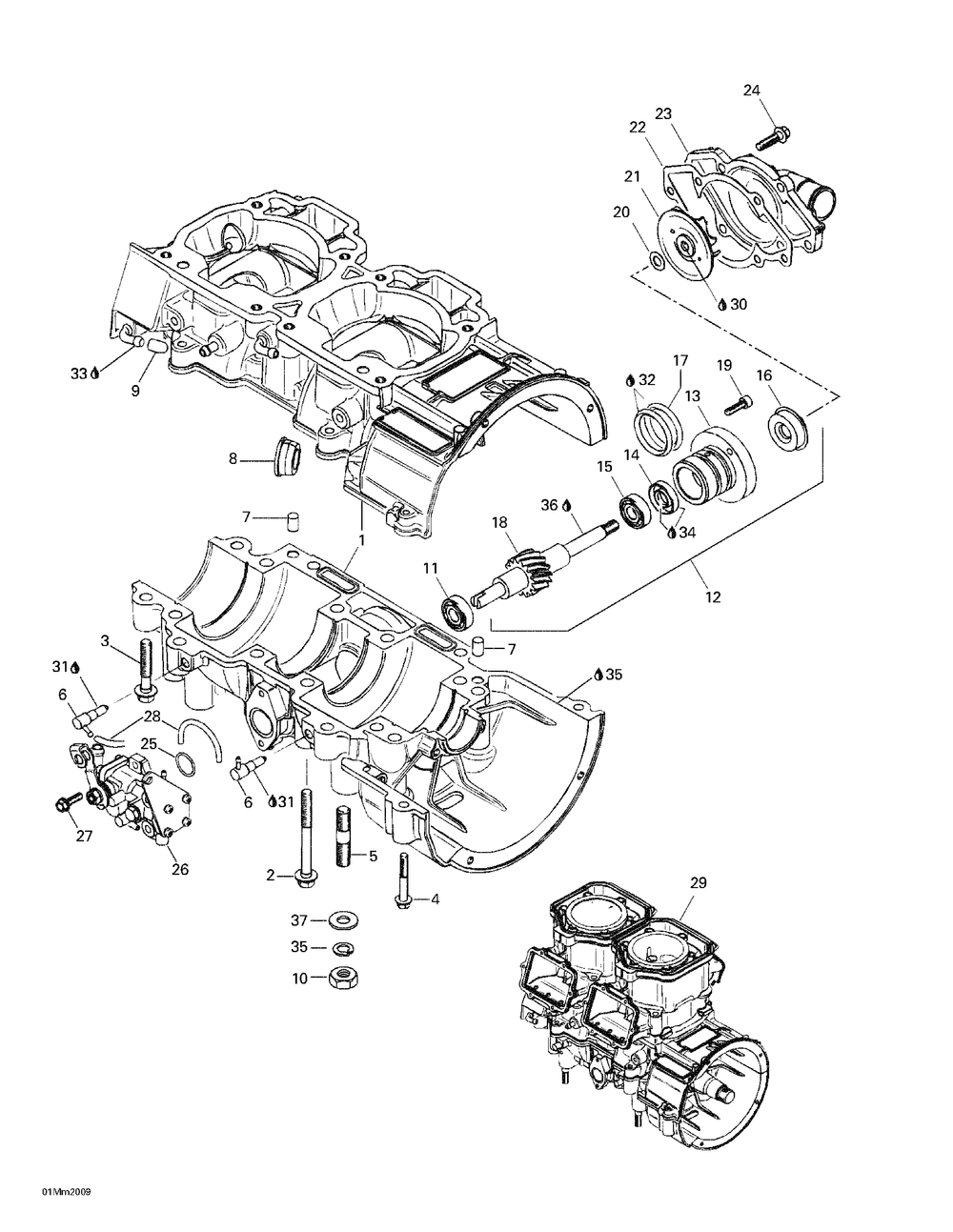

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 4 | HEX. COLLAR SCREW M6 X 45 (5.000 per pack) | 2 | |
| 5 | STUD M10 X 23 | 4 | |
| 6 | CHECK VALVE | 2 | |
| 7 | Center Pin 8 X 12 | 2 | |
| 8 | CABLE GROMMET | 1 | |
| 9 | Cap | 1 | |
| 10 | Hex. Nut M10 | 1 | |
| 11 | BALL BEARING | 1 | |
| 12 | WATER PUMP/OIL PUMP ASS Y Includes 14 to 20 | 1 | |
| 14 | OIL SEAL | 1 | |
| 16 | ROTARY SEAL | 1 | |
| 17 | O-RING | 2 | |
| 19 | SOCKET HEAD SCREW M5 X 16 | 2 | |
| 20 | RONDELLE *WASHER | 1 | |
| 21 | WATER IMPELLER | 1 | |
| 22 | JOINT *GASKET | 1 | |
| 23 | WATER PUMP HOUSING | 1 | |
| 24 | HEX. SCREW M6 X 25 | 6 | |
| 25 | O-RING (10.000 per pack) | 1 | |
| 26 | OIL PUMP ASStahos_Y 600 | 1 | |
| 27 | TAPPING SCREW M5 X 16 (10.000 per pack) | 2 | |
| 28 | OIL HOSE (5.000 per pack) | 0 | |
| 29 | CHECK VALVE Skandic 600. | 0 | |
| 30 | LOCTITE 243 10 ML | 0 | |
| 31 | LOCTITE 648 10 ML | 0 | |
| 32 | DOW CORNING 111*DOW CORNING 111 | 0 | |
| 34 | PETAMO GREASE GHY133N 400 G | 0 | |
| 35 | SEALING COMPOUND 30 ML | 0 | |
| 36 | HUILE 2T 12X1 *OIL 2T 12X1 MINERAL (12.000 per pack) | 0 | |
| 38 | WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) | 4 |
