SKI-DOO MX Z X 400 LC MX Z X 400 LC 01- Engine Support And Muffler (593)

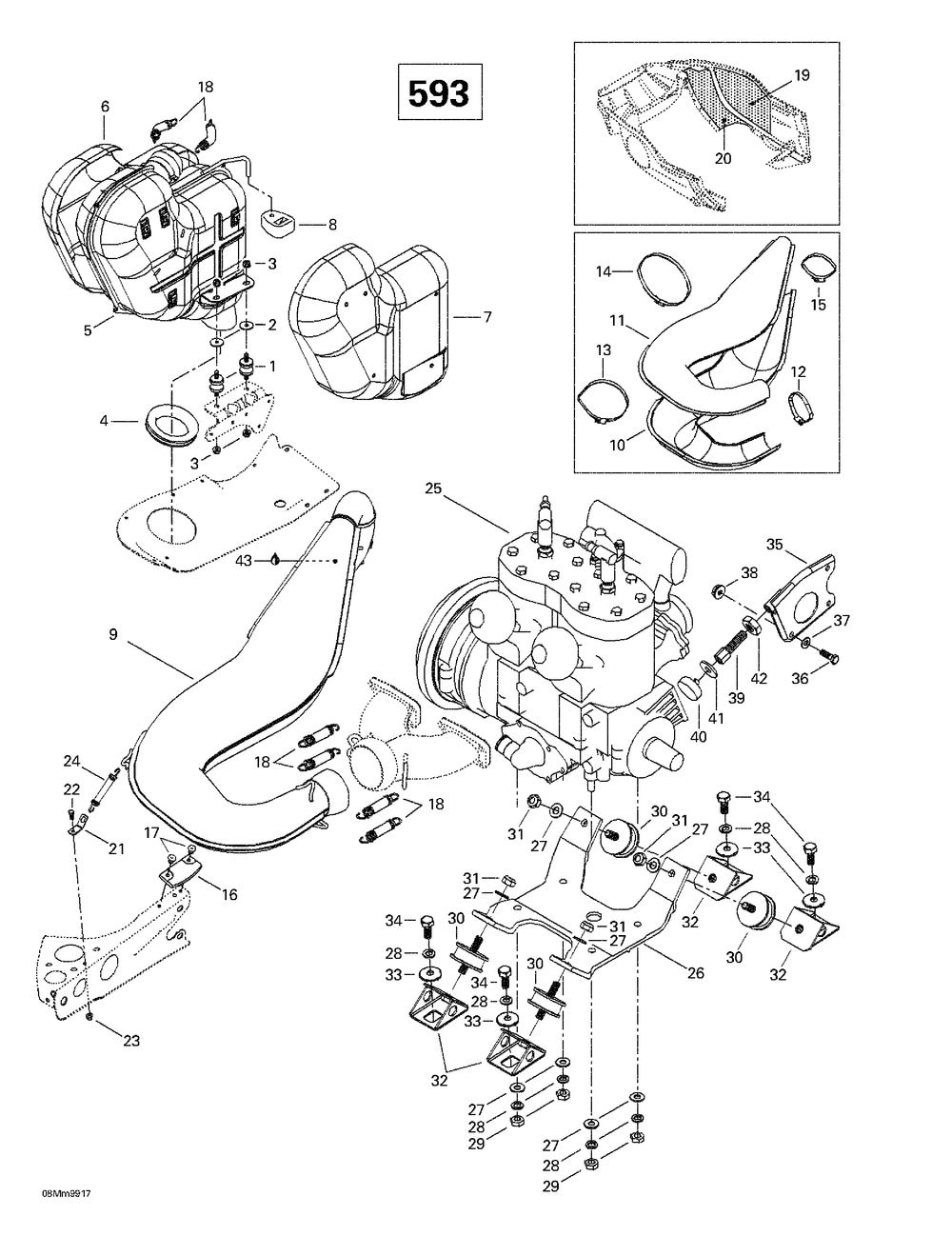

01- Engine Support And Muffler (593)
№ Наименование Примечание Кол-во
1 TAMPON ANCRAGE *MOUNT-RUBBER MXZ X 440 LC. 2
2 INSULATED WASHER (10.000 per pack) 2
3 Hex. Flanged Elastic Nut M8 4
4 EXHAUST GROMMET 1
8 RUBBER BUMPER 1
10 ENVELOPPE INF.A*ENVELOPPE-LOW.ASSY 1
11 UPPER ENVELOPPE 1
12 NORMA CLAMP 1
13 BRIDE SERRAGE *CLAMP-GEAR Grand Touring 500. 1
15 NORMA CLAMP 1
16 RUBBER PAD 1
17 Pop Rivet 3/16" 2
18 Spring 6
19 REFLECTIVE SHEET 1
20 REFLECTIVE SHEET 1
21 SPRING BRACKET 1
22 HEX. SCREW M5 X 12 (10.000 per pack) 1
23 FLANGED ELASTIC NUT M5 (4.000 per pack) 1
24 SPRING (5.000 per pack) 1
26 ENGINE SUPPORT 1
27 FLAT WASHER 10 MM (10.000 per pack) 8
28 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 8
29 HEX. NUT M10 (10.000 per pack) 4
30 RUBBER MOUNT 4
31 ELASTIC LOCKING NUT M10 Formula DLX 500 LC. (10.000 per pack) 4
32 ENGINE SUPPORT 4
33 RONDELLE-FREIN *WASHER-LOCK (5.000 per pack) 4
34 HEX. SCREW M10 X 25 (10.000 per pack) 4
35 SUPPORT PLATE 1
36 HEX. SCREW M8 X 20 (10.000 per pack) 1
37 FLAT WASHER 8 MM (10.000 per pack) 1
38 Hex. Elastic Stop Nut M8 1
39 STOPPER SCREW 1
40 STOPPER 1
41 RONDELLE *WASHER (10.000 per pack) 1
42 RH HEX. JAM NUT M12 (5.000 per pack) 1
43 SEALANT LOCTITE 80 ML Grand Touring 500. Grand Touring 600. 0
