SKI-DOO GSX SE 800RETEC XR137 GSX SE 800RETEC XR137 05- Pulley System _19M1525

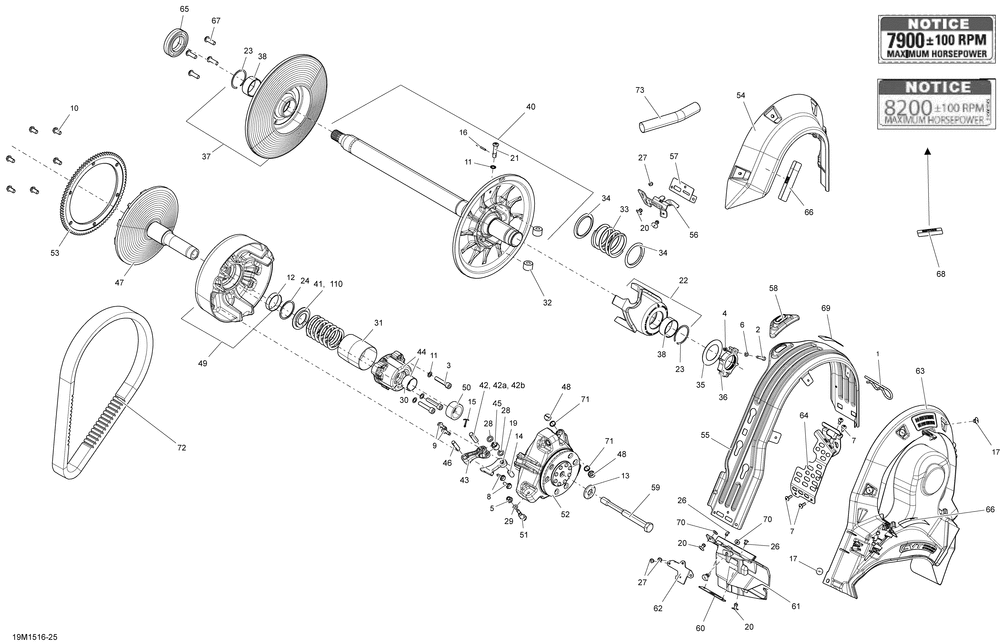

05- Pulley System _19M1525
№ Наименование Примечание Кол-во
1 GOUP.SURETE *PIN-HAIR (5.000 per pack) 1
2 SOCKET SCREW M5 X 25 (10.000 per pack) 1
3 SOCKET HEAD SCREW M8 X 40 Model-SE (5.000 per pack) 3
4 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 1
5 Hex. Flanged Elastic Nut M6 3
6 FLAT WASHER M5 (10.000 per pack) 1
7 Torx Screw M5 X 14 4
8 SERRATED HEX. FLANGE BOLT M6 (6.000 per pack) 6
9 FLANGED HEX. SCREW M6 X 18 SCOTCH GRIP (6.000 per pack) 6
10 HEX. FLANGE SCREW M8 X 16 (6.000 per pack) 6
11 Lock Washer 8 mm 5
12 BUSHING 1
13 CONICAL SPRING WASHER M14 1
14 SPRING PIN M10 X 22 (3.000 per pack) 3
15 COTTER PIN (3.000 per pack) 3
16 SPRING PIN M3 X 30 (2.000 per pack) 2
17 Black Pop Rivet 3/16" 5
19 RAMP 414 Package-Enduro (3.000 per pack) 3
20 Pop Rivet 3/16" 2
21 PIVOT STUD 2
22 CAM ASS Y 1
23 CIRCLIP 2
24 CIRCLIP 1
27 AVEX RIVET (50.000 per pack) 3
28 STOPPER WASHER (6.000 per pack) 6
29 RONDELLE *WASHER (6.000 per pack) 3
30 BUSHING 1
31 GUARD 1
32 Roller 2
33 SPRING 1
34 Swivel Abutment 2
35 RONDELLE *WASHER 1
36 AJUST POULIE *PULLEY ADJUST 1
37 SLIDING FLANGE ASS Y 1
38 BUSHING 2
40 FIX FLANGE ASS Y 1
41 SPRING SEAT 1
42 GOUPILLE *PIN (3.000 per pack) 3
43 LEVER 3
44 SPRING COVER ASS Y 1
45 ROLLER (3.000 per pack) 3
46 LEVER AXLE (3.000 per pack) 3
47 FIXED FLANGE ASS Y 1
48 SLIDER SHOE (6.000 per pack) 6
49 SLIDING FLANGE ASS Y 1
50 BUSHING 1
51 CALIBRATION SCREW (3.000 per pack) 3
52 GOVERNOR CUP ASS Y 1
53 RING GEAR 1
54 SIDE PROTECTOR 1
55 BELT GUARD 1
56 FRONT BELT GUARD BRACKET 1
57 REINFORCEMENT 1
58 GUIDE 1
59 TRA 7 BOLT (M14 X 153.5 MM) 1
64 BELT GUARD BRACKET 1
65 BALL BEARING 1
66 DECAL ENGLISH 1
67 HEX. BUTTON HEAD SCREW M8 X 25 (4.000 per pack) 4
68 RPM STICKER ENGLISH 1
69 SAFETY BELT GUARD DECAL 1
71 O-RING (6.000 per pack) 6
72 COURROIE *DRIVE BELT 1
73 PROTECTOR TUBE 25 MM - 210 MM 1
110 SPRING YELLOW/GREEN Model-800 E-TEC 1
