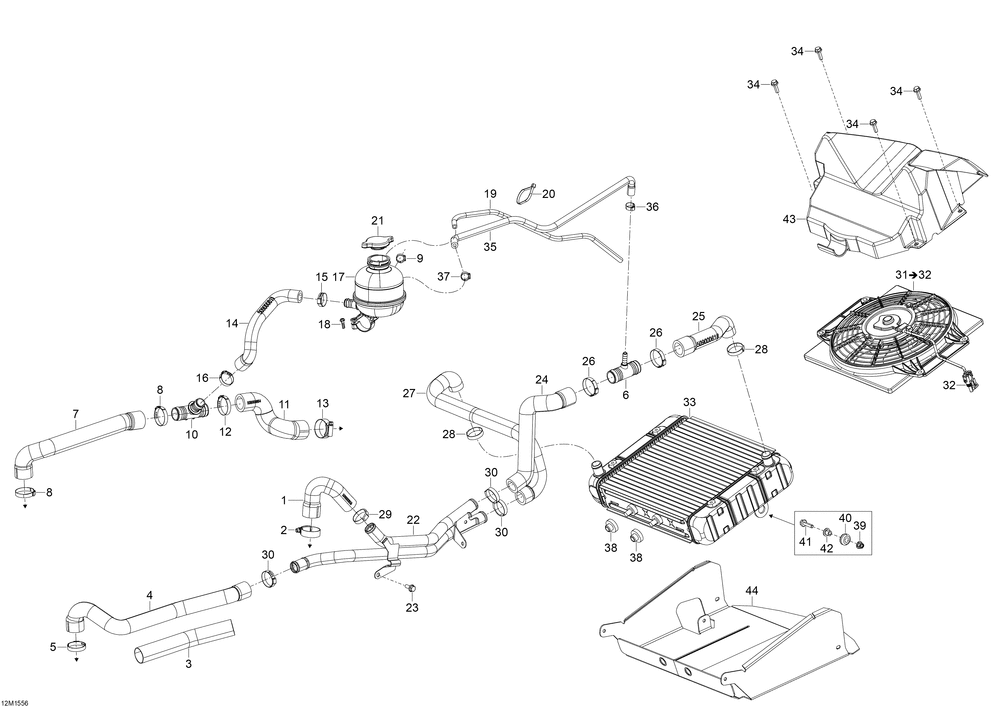

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ENGINE OUTLET HOSE | 1 | |
| 2 | ABA GEAR CLAMP | 1 | |
| 3 | PROTECTOR TUBE 32 MM | 1 | |
| 4 | HOSE | 1 | |
| 5 | Oetiker Gear Clamp | 1 | |
| 6 | T-FITTING | 1 | |
| 7 | RADIATOR RETURN HOSE | 1 | |
| 9 | Oetiker Gear Clamp | 1 | |
| 10 | T-FITTING | 1 | |
| 11 | ENGINE INLET HOSE | 1 | |
| 14 | FILLING HOSE | 1 | |
| 15 | Oetiker Gear Clamp | 1 | |
| 16 | Crimp Clamp | 1 | |
| 17 | COOLING TANK | 1 | |
| 18 | HEX. FLANGED SCREW K50 X 16 (5.000 per pack) | 1 | |
| 19 | BOYAU *HOSE | 1 | |
| 20 | Tie-Rap 180 mm | 1 | |
| 21 | Pressure Cap | 1 | |
| 22 | WATER PIPE | 1 | |
| 23 | Hex. Flanged Screw M6 X 16, Scotch Grip | 1 | |
| 24 | RADIATOR HOSE | 1 | |
| 25 | RADIATOR HOSE | 1 | |
| 27 | RADIATOR HOSE | 1 | |
| 28 | Oetiker Gear Clamp | 2 | |
| 29 | Oetiker Gear Clamp | 1 | |
| 30 | OETIKER CLAMP | 1 | |
| 31 | FAN ASS Y | 1 | |
| 32 | FEMALE TERMINAL | 2 | |
| 32 | MALE CONNECTOR 2 CIRCUITS | 1 | |
| 33 | RADIATOR | 1 | |
| 34 | Flanged Screw M6 X 20 Scotch Grip | 4 | |
| 35 | BOYAU PURGE *BREATHER HOSE | 1 | |
| 36 | Crimp Clamp | 1 | |
| 38 | Grommet | 2 | |
| 39 | Hex. Flanged Elastic Nut M6 | 2 | |
| 40 | Grommet | 2 | |
| 41 | Hex. Flanged Screw M6 X 25 | 2 | |
| 42 | BUSHING | 2 | |
| 43 | OUTLET DUCT ASS Y | 1 | |
| 44 | RADIATOR SUPPORT | 1 |
