SKI-DOO MXZ X 600HOETEC XS120 MXZ X 600HOETEC XS120 05- Drive System 600HOETEC_17M1502

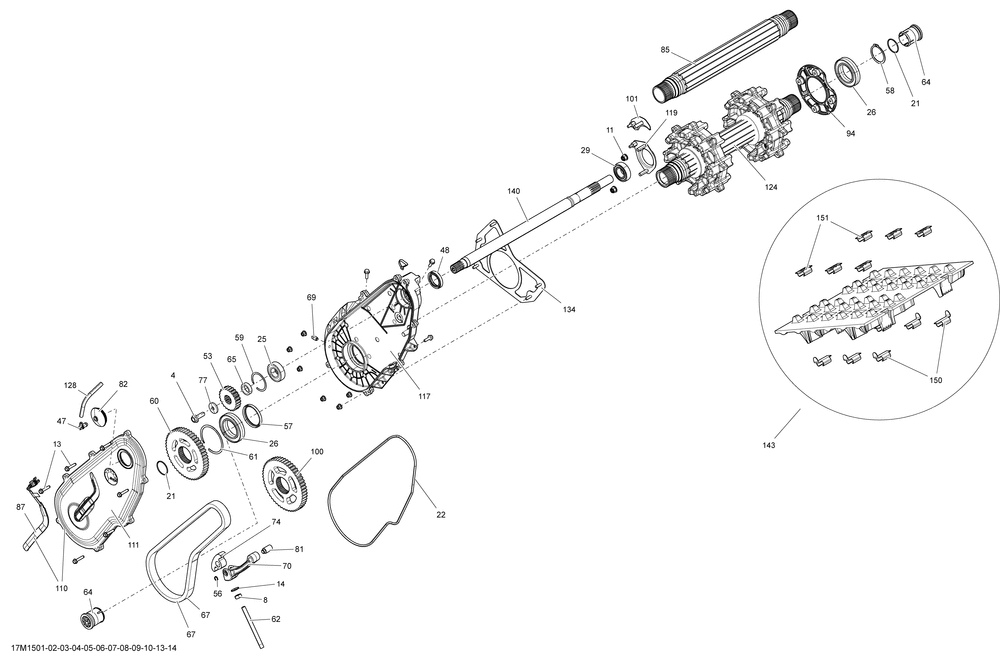

05- Drive System 600HOETEC_17M1502
№ Наименование Примечание Кол-во
4 HEX. FLANGED SCREW M10 X 30 SCOTCH GRIP (5.000 per pack) 1
8 Hex. Nut M10 1
11 Hex. Flanged Elastic Nut M8 0
14 BONDED WASHER 3/8 X 7/8 (5.000 per pack) 1
21 O-RING 2
22 O-RING 1
25 Ball Bearing 1
26 Ball Bearing 2
47 MALE CONNECTOR (5.000 per pack) 1
48 OIL SEAL 1
53 SPROCKET 25 TEETH (LARGE) Engine 800 ETEC Package Adrenaline X Enduro 1
56 Circlip 1
57 SEAL 1
58 CIRCLIP 2
59 CIRCLIP 1
60 SPROCKET 45 TEETH Package Sport 1
61 CIRCLIP 1
62 ADJUSTMENT SCREW 1
64 MAGNETIC CAP 3
65 SHIM 1
67 DRIVE CHAIN 104 LINKS Package Sport 1
69 MAGNETIC PLUG 1
70 CHAIN TENSIONER 1
74 SLIDER CHAIN 1
77 SPRING WASHER M10 (3.000 per pack) 1
81 TENSIONNER AXLE 1
82 CAP 1
87 CAPTEUR *SENSOR 1
94 HOUSING BEARING 1
101 BEARING HOUSING 1
110 COUVERCLE *COVER ASS Y 1
111 CASTING COVER 1
117 CHAIN CASE 1
124 DRIVE AXLE ASS Y 1
128 Hose, Polyurethane 1
134 PLATE ASSY 1
143 TRACK ASS Y 15X120X1.2RS Package Sport TNT 1
143 TRACK ASS Y 15X120X1.25IR Track 15X120X1.2IR 1
150 GUIDE *CLIP Model-Europe 28
151 AGRAFE DE GUIDE*CLEAT-GUIDE 56
