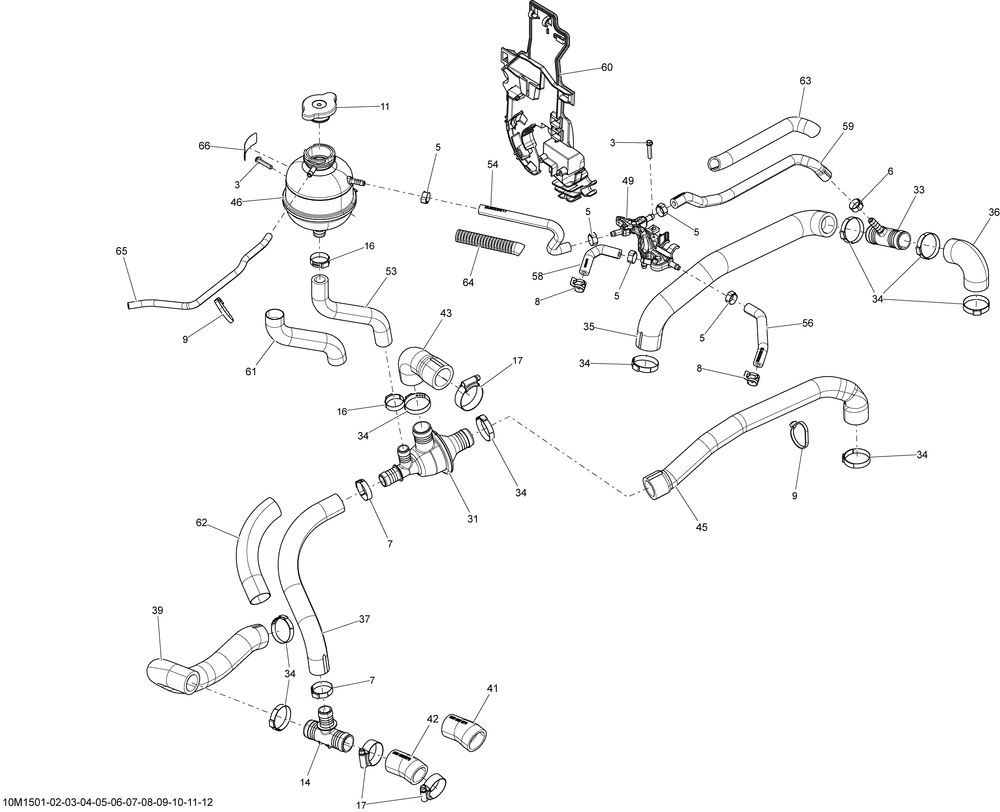

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 3 | HEX. FLANGED SCREW K50 X 25 | 2 | |
| 5 | Oetiker Clamp | 5 | |
| 6 | Crimp Clamp | 1 | |
| 7 | Crimp Clamp | 2 | |
| 8 | NORMA SPRING CLAMP (2.000 per pack) | 2 | |
| 9 | Tie-Rap 180 mm | 0 | |
| 11 | Pressure Cap | 1 | |
| 14 | T-FITTING | 1 | |
| 16 | Oetiker Gear Clamp | 2 | |
| 17 | ABA GEAR CLAMP | 0 | |
| 31 | THERMOSTAT HOUSING | 1 | |
| 33 | T-FITTING | 1 | |
| 34 | Oetiker Gear Clamp | 0 | |
| 35 | RADIATOR HOSE | 1 | |
| 36 | RADIATOR HOSE | 1 | |
| 37 | BYPASS HOSE | 1 | |
| 39 | RADIATOR HOSE | 1 | |
| 41 | ENGINE INLET HOSE 800R E-TEC | 1 | |
| 43 | ENGINE OUTLET HOSE | 1 | |
| 45 | THERMOSTAT OUTLET HOSE | 1 | |
| 46 | COOLANT TANK | 1 | |
| 49 | BLEED COLLECTOR | 1 | |
| 53 | FILLING HOSE | 1 | |
| 54 | HOSE | 1 | |
| 56 | BLEEDER HOSE | 1 | |
| 58 | BLEEDER HOSE | 1 | |
| 59 | BLEEDER HOSE | 1 | |
| 60 | TANK SUPPORT | 1 | |
| 61 | PROTECTOR TUBE 32 MM | 1 | |
| 63 | Tubing 16 mm | 1 | |
| 64 | Tubing 13 mm (10.000 per pack) | 1 | |
| 65 | HOSE 6 MM (15.000 per pack) | 1 | |
| 66 | WARNING DECAL | 1 |
