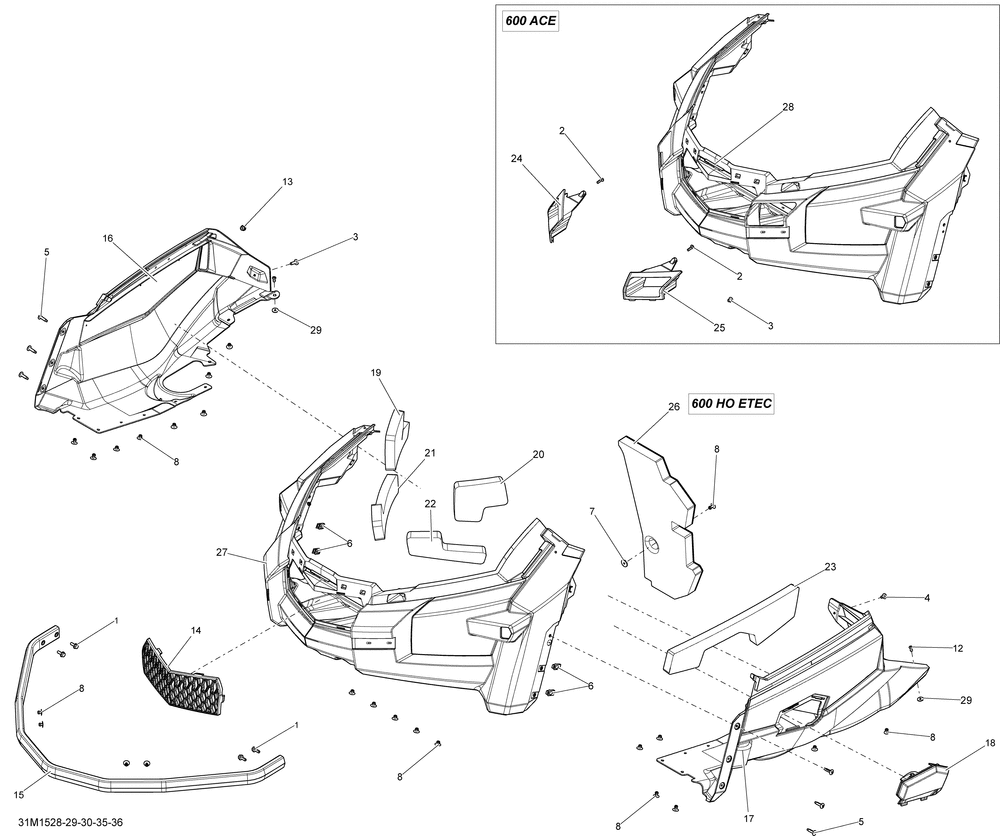

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | Hex. Flanged Screw M6 X 16 | 4 | |
| 3 | Torx Truss Screw M6 X 20 | 1 | |
| 4 | Torx Truss Screw M6 X 12 | 1 | |
| 5 | TORX SCREW M6 X 25 | 6 | |
| 6 | Panel Nut M6 X 1.0 | 4 | |
| 8 | Pop Rivet 3/16" | 0 | |
| 12 | Pop Rivet 3/16" | 2 | |
| 13 | Insert | 1 | |
| 14 | GRILLE COQUE *GRILL-PAN BOTTOM | 1 | |
| 15 | BLACK FRONT BUMPER | 1 | |
| 16 | BLACK RH BOTTOM PAN | 1 | |
| 17 | BLACK LH BOTTOM PAN | 1 | |
| 18 | BLACK BOTTOM PAN DOOR | 1 | |
| 19 | RH UPPER BOTTOM PAN FOAM | 1 | |
| 20 | LH UPPER BOTTOM PAN FOAM | 1 | |
| 21 | RH LOWER BOTTOM PAN FOAM | 1 | |
| 22 | LH LOWER BOTTOM PAN FOAM | 1 | |
| 23 | LH BOTTOM PAN FOAM | 1 | |
| 27 | BLACK BOTTOM PAN | 1 | |
| 29 | RONDELLE *WASHER (10.000 per pack) | 2 |
