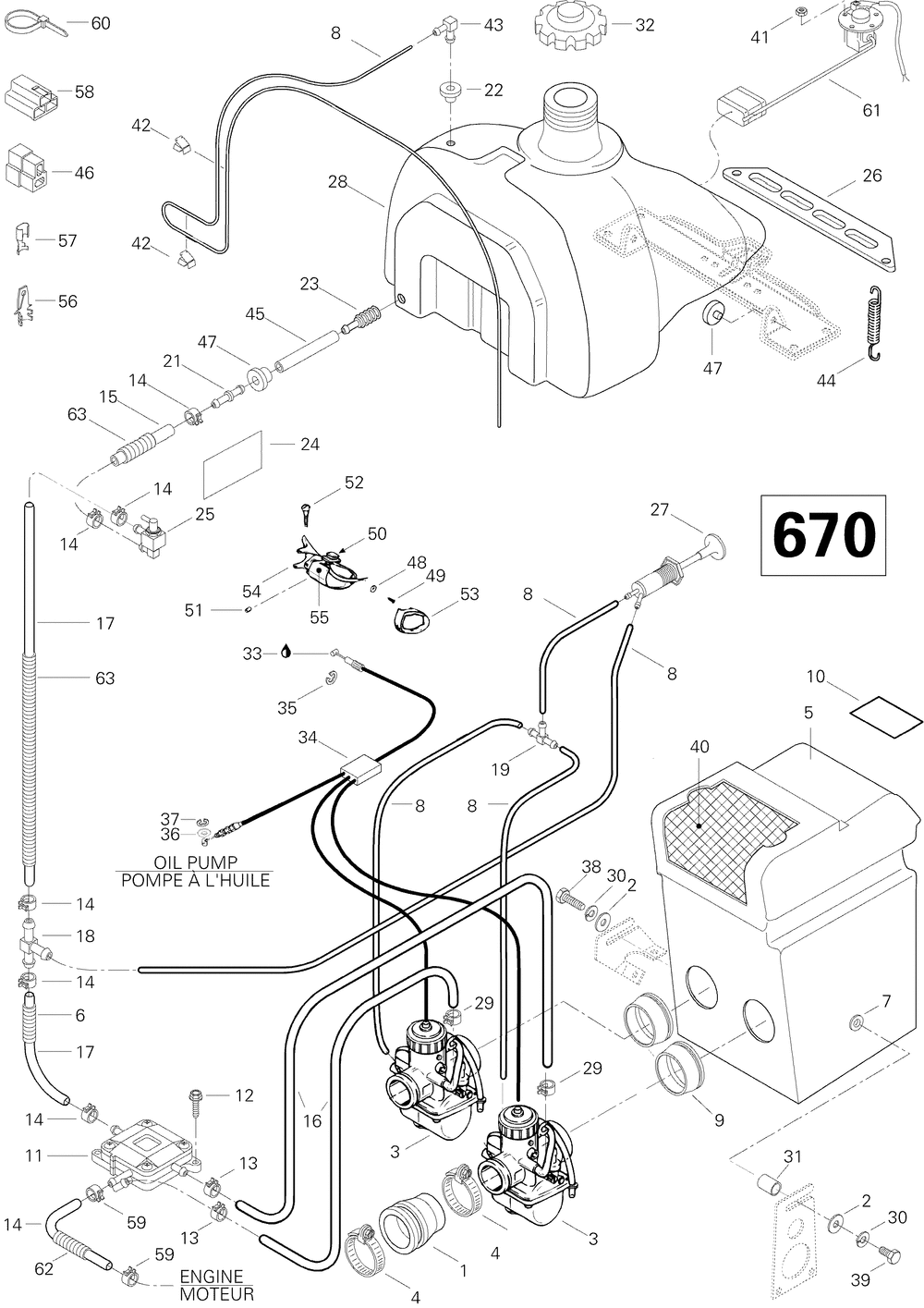

02- Fuel System 670SE
№ Наименование Примечание Кол-во
2 Flat Washer 2
7 JACK NUT M6 Grand Touring SE. (10.000 per pack) 2
8 BOYAU AMORCE *LINE-PRIMER Formula 500. Formula 500 Deluxe. (30.000 per pack) 0
12 HEX. FORMING SCREW M6 X 20 MX Z 670 HO. (10.000 per pack) 2
13 Spring Clamp 2
14 UNIVERSAL SPRING CLAMP (10.000 per pack) 6
16 Hose, Polyurethane 0
17 DUIT ESSENCE*FUEL LINE (10.000 per pack) 0
18 T-FITTING Formula Z. Formula 583. (10.000 per pack) 1
19 T-FITTING (10.000 per pack) 1
20 HOSE 1/4 Formula 500. Formula 500 Deluxe. 0
21 MALE CONNECTOR (5.000 per pack) 1
22 GROMMET 1
23 FUEL FILTER 1
27 AMORCEUR *PRIMER 1
30 WASHER-LOCK BLACK DIN.127B (10.000 per pack) 2
32 CAP-FUEL TANK 1
35 CIRCLIP (10.000 per pack) 1
36 FLAT WASHER 8 MM NYLON (5.000 per pack) 1
37 CIRCLIP (10.000 per pack) 1
38 HEX. SCREW M6 X 25 (10.000 per pack) 1
39 HEX. FLANGED SCREW M6 X 35 (10.000 per pack) 1
41 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 5
42 CLIP (10.000 per pack) 2
43 MALE CONNECTOR (5.000 per pack) 1
44 SPRING (10.000 per pack) 2
45 BOYAU POLYURE *HOSE-POLYURETHANE 0
46 MALE HOUSING (5.000 per pack) 0
47 GROMMET (2.000 per pack) 3
49 SCREW-THREAD CUT.PH.PAN TYPE25 (10.000 per pack) 1
50 KILL SWITCH 1
51 SOCKET SET SCREW M8 X 10 (5.000 per pack) 1
52 FLANGED SCREW (10.000 per pack) 4
53 THROTTLE COVER 1
56 MALE TERMINAL (10.000 per pack) 0
57 FEMALE TERMINAL (10.000 per pack) 3
59 Spring Clamp 2
60 Tie-Rap 180 mm 2
62 TUBING 13 MM (10.000 per pack) 0
63 TUBING 16 MM 0
