08- Rear Suspension 670SE

Корзина пуста
SKI-DOO Grand Touring 670SE Grand Touring 670SE 08- Rear Suspension 670SE

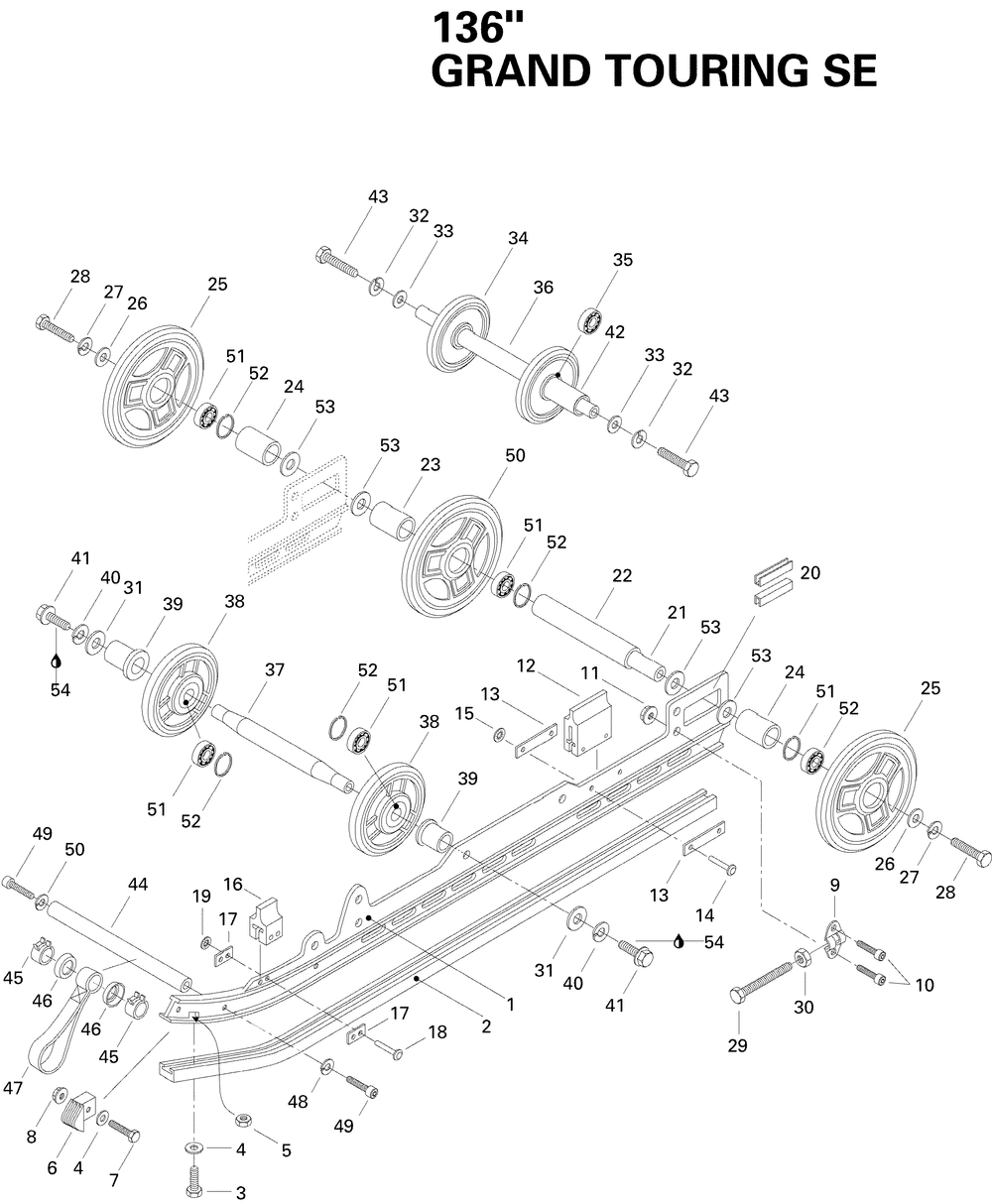

08- Rear Suspension 670SE
№ Наименование Примечание Кол-во
3 HEX. SCREW M6 X 20 (10.000 per pack) 2
4 Flat Washer 4
5 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 2
7 HEX. SCREW M6 X 30 (10.000 per pack) 2
8 HEX. FLANGED ELASTIC NUT M6 (10.000 per pack) 2
10 SOCKET HEAD SCREW M8 X 25 (10.000 per pack) 4
11 HEX. FLANGED ELASTIC NUT M8 (10.000 per pack) 4
14 RIVET-STEEL SOLID (10.000 per pack) 4
15 PUSH NUT (10.000 per pack) 4
16 FRONT RUBBER STOPPER 2
21 REAR AXLE 1
24 OUTER SPACER 2
26 RONDELLE *WASHER (10.000 per pack) 2
27 WASHER-LOCK SPRING DIN.128A-A2 (10.000 per pack) 2
28 SCREW-HEXAGONAL (10.000 per pack) 2
30 ELASTIC LOCKING NUT M10 Formula DLX 500 LC. (10.000 per pack) 2
31 FLAT WASHER 10 MM (10.000 per pack) 2
32 WASHER-LOCK DIN.127B Formula Deluxe 380. (50.000 per pack) 2
33 FLAT WASHER 8 MM (10.000 per pack) 2
34 IDLER WHEEL Includes 48 - 49. 2
35 BALL BEARING 2
38 WHEEL 135 Formula 500. Formula 500 Deluxe. Formula 583. 2
41 HEX. SCREW M10 X 35 Formula Deluxe 500. (10.000 per pack) 2
43 HEX. SCREW M8 X 35 (10.000 per pack) 2
49 SOCKET SCREW M10 X 35 (10.000 per pack) 2
51 BALL BEARING 5
52 CIRCLIP (10.000 per pack) 5
53 SHIM (10.000 per pack) 4
54 LOCTITE 271 10 ML 0
