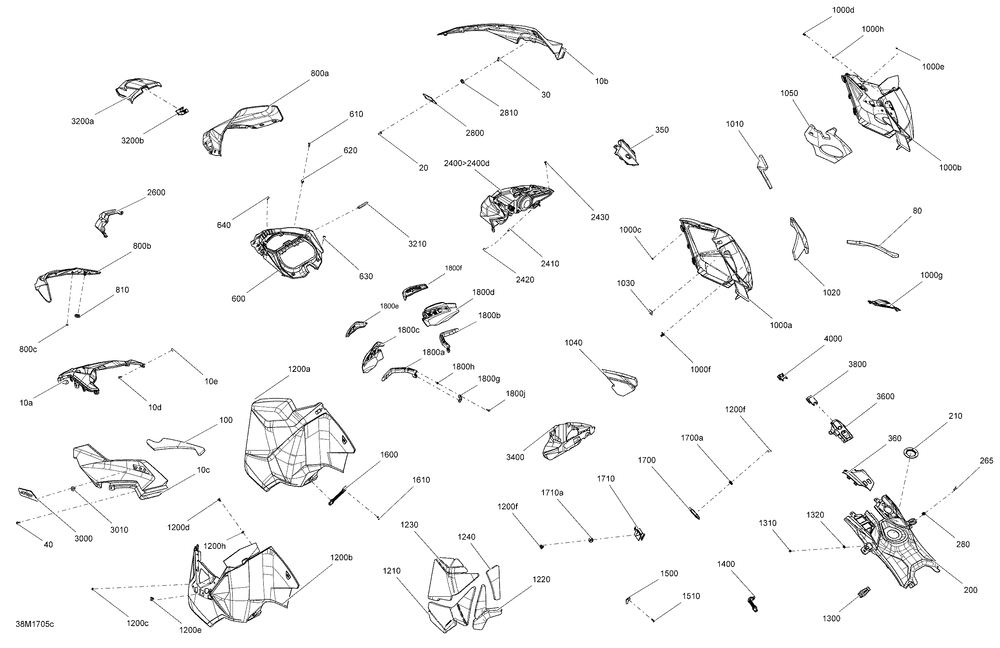

SKI-DOO MXZ - 2-STROKE - 600HO E-TEC MXZ - 2-STROKE - 600HO E-TEC 09- Hood - Package Iron Dog
09- Hood - Package Iron Dog
№ Наименование Примечание Кол-во
10a DEEP BLACK CENTER HOOD 1
10b DEEP BLACK RH HOOD Black-Black Model 1
10c DEEP BLACK LH HOOD Black-Black Model 1
10d Pop Rivet 3/16" 8
10e RONDELLE *WASHER (10.000 per pack) 8
20 Torx Screw M5 X 20 6
30 PANEL NUT M5 X 0.8 (10.000 per pack) 8
40 TORX SCREW M5 X 26 2
80 RH REAR HOOD FOAM 1
100 LH REAR HOOD FOAM 1
200 BLACK REAR CONSOLE 1
210 CONSOLE NUT 1
265 Torx Truss Screw M6 X 20 2
280 Panel Nut M6 X 1.0 2
350 RH FRONT CONSOLE 1
360 DEEP BLACK LH FRONT CONSOLE 1
400>400a DEEP BLACK RH CONSOLE 1
400a BLACK CAP (5.000 per pack) 3
410 Screw M4 X 16 2
600 DEEP BLACK INDICATOR SUPPORT 1
640 DART GS Black A19N Model (10.000 per pack) 2
800a WINDSHIELD 135 XRS 1
800b SHORT WINDSHIELD SUPPORT 1
800c Push Nut 6
810 RONDELLE *GROMMET 3
1000a DEEP BLACK RH PANEL 1
1000b DEEP BLACK RH PANEL TRIM 1
1000c PUSH NUT 5
1000e PLAQUE *PLATE 4
1000f TIGE *PIN 1
1000g RH PANEL VENT GRID 1
1010 RH CENTER PANEL FOAM 1
1020 RH REAR PANEL FOAM 1
1030 HEAT SHIELD 2
1040 RH UPPER PANEL FOAM 1
1050 RH LOWER PANEL FOAM 1
1200a DEEP BLACK LH PANEL 1
1200b DEEP BLACK LH FLASHING PANEL 1
1210 LH CENTER PANEL FOAM 1
1220 LH LOWER PANEL FOAM 1
1230 LH UPPER PANEL FOAM 1
1240 LH REAR PANEL FOAM 1
1300 PANEL LATCH 2
1310 HEXALOB SCREW M4 X 10 2
1320 WELD NUT M4 2
1400 RH PANEL LATCH 1
1500 LATCH SUPPORT 1
1510 TORX-TRUSS M/SM5 X 20 (6.000 per pack) 1
1600 LH PANEL LATCH 1
1610 POP RIVET 3/16tahos_ (25.000 per pack) 1
1700>1700a RH PANEL CLIP ASS Y 1
1700a RING 1
1710>1710a LH PANEL CLIP ASS Y 1
1800a LH ARM 1
1800b RH ARM 1
1800c LH DEFLECTOR 1
1800d RH DEFLECTOR 1
1800e BLACK LH CAP 1
1800f BLACK RH CAP 1
1800g BRIDE *BRIDE 2
1800h Torx Screw Truss Head K50X20 T20 2
1800j Torx Screw M5 X 20 4
2600 HEADLIGHT TRIM CAP Black 1
2800 RH HOOD FILLER PLATE 1
3000 LH HOOD FILLER PLATE 1
3200a UPPER STORAGE ACCESS COVER 1
3200b COVER LATCH 1
3210 SEAL JOINT 2
3400 TRUNK 1
3600 CONSOLE SUPPORT 1
3800 SUPPORT CONSOLE CAP 1
4000 DEEP BLACK SUPPORT CONSOLE CAP 1
