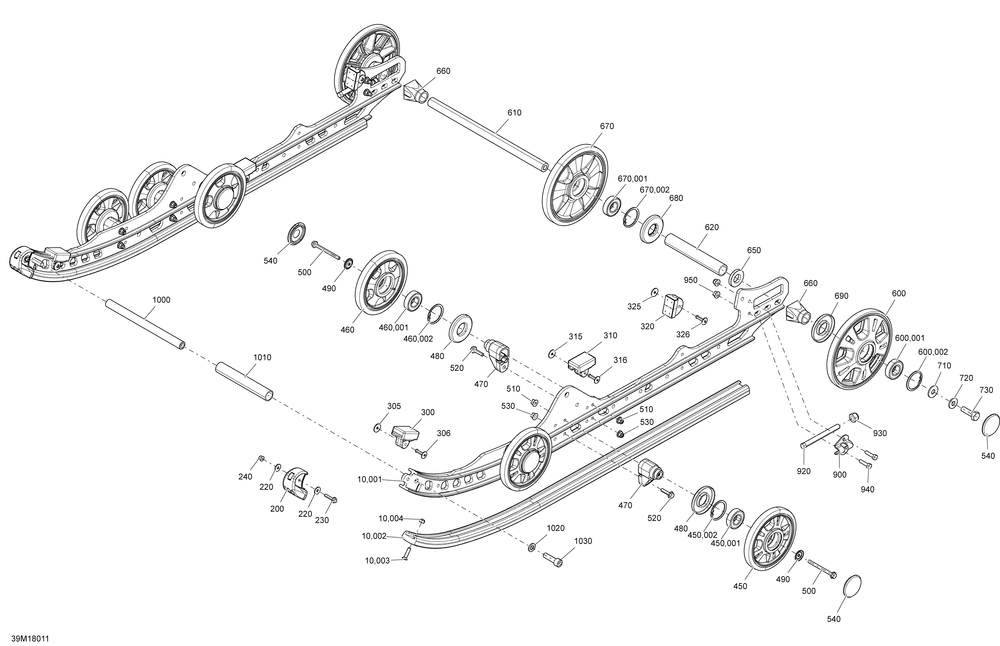

08- Suspension Rear MXZ Engine 600 ACE - Inferior

Корзина пуста
SKI-DOO MXZ 600 ACE MXZ 600 ACE 08- Suspension Rear MXZ Engine 600 ACE - Inferior
08- Suspension Rear MXZ Engine 600 ACE - Inferior
№ Наименование Примечание Кол-во
10.001 RUNNER 120 1
10.002 BLACK SLIDER SHOE 120" 1
10.003 PHILLIPS SCREW M6 X 25 (4.000 per pack) 1
10.004 Elastic Stop Nut M6 1
200 RUNNER PROTECTOR 2
220 RONDELLE *WASHER (4.000 per pack) 4
230 HEX. FLANGED SCREW M5 X 25 2
240 FLANGED ELASTIC NUT M5 (4.000 per pack) 2
300 RUBBER STOPPER 2
305 RONDELLE * WASHER (6.000 per pack) 2
306 POP RIVET 3/16" 2
320 RUBBER STOPPER 2
450 DEEP BLACK WHEEL ASS Y 141 MM 4
450.001 BALL BEARING 1
450.002 RETAINING RING 1
470 CASTED SUPPORT 6
480 LABYRINTH SEAL 6
490 WHEEL CUP M6 6
500 HEX. FLANGE SCREW M6 X 70 6
510 Hex. Flanged Elastic Nut M6 6
520 HEX. FLANGE SCREW M6 X 25 6
540 BLACK WHEEL CAP 6
600 BLACK WHEEL ASS Y 180 MM 2
610 REAR AXLE 1
620 SPACER 1
650 RONDELLE *WASHER 1
660 REAR WHEEL SPACER 3
670 DEEP BLACK WHEEL ASS Y 180 MM 1
680 LABYRINTH SEAL 1
710 RONDELLE *WASHER (3.000 per pack) 2
720 CONICAL SPRING WASHER 10 MM (10.000 per pack) 2
730 SCREW-HEX.CAP WITH NYLON PATCH 2
900 TENSIONER 2
920 HEX SCREW M10 X 100 2
930 Elastic Locking Nut M10 2
940 HEX SCREW M6 X 25 4
1000 AXLE STRAP 1
1010 SPACER 1
1020 Washer 2
1030 SOCKET HEAD SCREW M10 X 35 2
