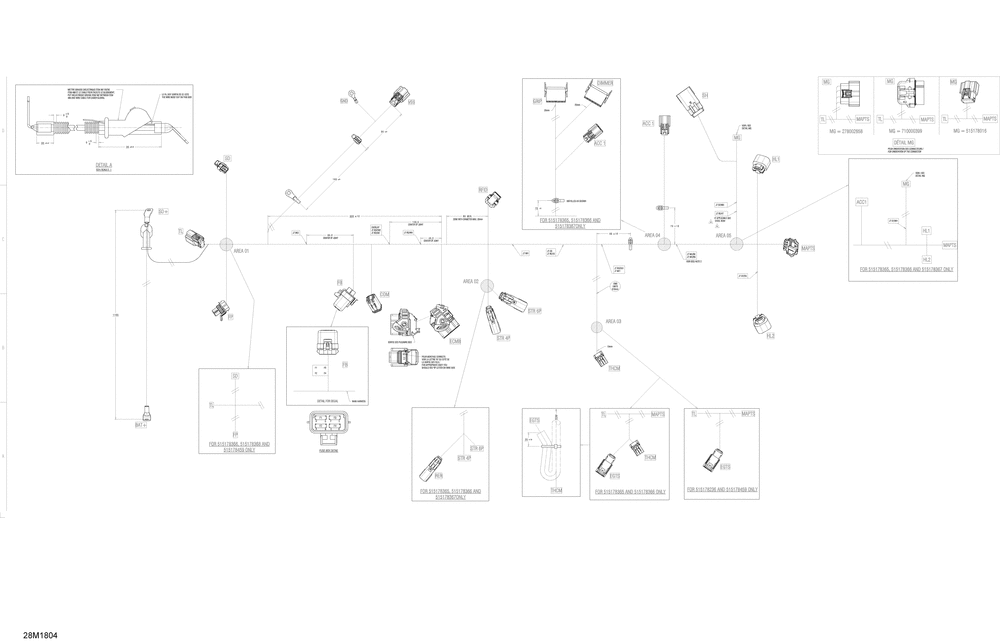

10- Main Harness Manual Start MXZ X - 600R ETEC
№ Наименование Примечание Кол-во
"ACC 1" BLOC 2 CIRC.M *HOUSING-TAB 1
"STR 4P" HOUSING 1
"STR 6P" Male Housing 6 Circuits 1
COM Terminal 1
COM Terminal 1
COM Lock 1
COM Housing 1
ECMB FEMALE TERMINAL HOUSING 48 CIRCUITS 1
ECMB Female Terminal 1
ECMB Female Terminal 1
ECMB Plug 1
ECMB Cover 1
ECMB Female Terminal 1
EGTS Housing Connector 1
EGTS Seal 1
EGTS Terminal 1
F1 Little Fuse, 5 Amperes 1
F2 Little Fuse 1
F4 Little Fuse 7.5 Amperes 1
FB Wire Seal 1
FB FUSE FOAM 1
FB WIRE SEAL (10.000 per pack) 1
FB Seal Plug 1
FB CLIP 1
FB FUSE BOX COVER 1
FB BOITIER FUSIBLE*FUSE BOX 1
FB TREMINAL FEM 1
FP Lock 1
FP Female Terminal 1
FP Seal 1
FP Housing 1
GND OPEN BARREL (10.000 per pack) 1
HL1 Terminal 1
HL1 Seal Wire 1
HL1 CONNECTEUR *HOUSING 1
MAPTS FEMALE TERMINAL 1
MAPTS JOINT DE FIL *SEAL 1
MAPTS BLOC CONNECT. *CONNECTOR CAPS 1
MG Female Terminal 1
MG Female Housing 1
MG Female Housing 24 Circuits 1
MG Plug 1
MG Female Terminal 1
MG Wire Seal 1
MG Retainer Block 1
RFID Housing 1
RFID Female Terminal 1
RFID Wire Seal 1
SD TERMINAL 1
SD Female Housing 1
SH Male Terminal 1
SH 12 Circuits Male Housing 1
TL HOUSING 1
VSS LOGEMENT *HOUSING 1
3000 WIRING HARNESS 1
