SKI-DOO MXZ X 800RETEC XS MXZ X 800RETEC XS 05- Drive System 800R ETEC_17M1402

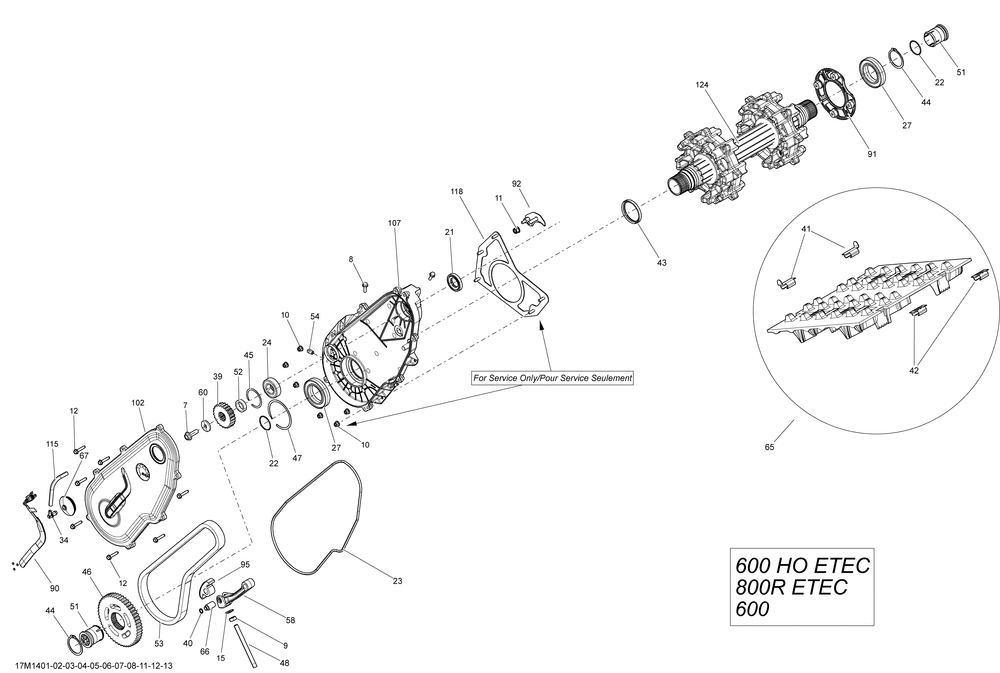

05- Drive System 800R ETEC_17M1402
№ Наименование Примечание Кол-во
7 HEX. FLANGED SCREW M10 X 30 SCOTCH GRIP (5.000 per pack) 1
8 Hex. Flanged Screw M6 X 20 2
9 Hex. Nut M10 1
10 FLANGED ELASTIC NUT M6 (8.000 per pack) 6
11 Hex. Flanged Elastic Nut M8 1
12 HEX. FLANGED SCREW M6 X 30 (10.000 per pack) 7
15 BONDED WASHER 3/8 X 7/8 (5.000 per pack) 1
21 OIL SEAL 1
22 O-RING 2
23 O-RING 1
24 Ball Bearing 1
27 Ball Bearing 2
34 MALE CONNECTOR (5.000 per pack) 1
39 SPROCKET 27 TEETH TNT 800 1
40 Circlip 1
41 GUIDE *CLIP Model-Europe 28
42 CLEAT Model-Europe (50.000 per pack) 56
43 SEAL 1
44 CIRCLIP 2
45 CIRCLIP 1
46 SPROCKET 45 TEETH Package Sport 1
47 CIRCLIP 1
48 ADJUSTMENT SCREW 1
51 MAGNETIC CAP 2
52 SHIM 1
53 DRIVE CHAIN 106 LINKS 1
54 MAGNETIC PLUG 1
58 CHAIN TENSIONER 1
60 SPRING WASHER M10 (3.000 per pack) 1
65 TRACK ASS Y 15X120X1.2RS Package Sport TNT 1
66 TENSIONNER AXLE 1
67 CAP 1
90 CAPTEUR *SENSOR 1
91 HOUSING BEARING 1
95 SLIDER CHAIN 1
102 CHAINCASE COVER ASS Y 1
107 CHAINCASE 1
115 Hose, Polyurethane 1
118 PLATE ASSY 1
124 DRIVE AXLE ASS Y 1
