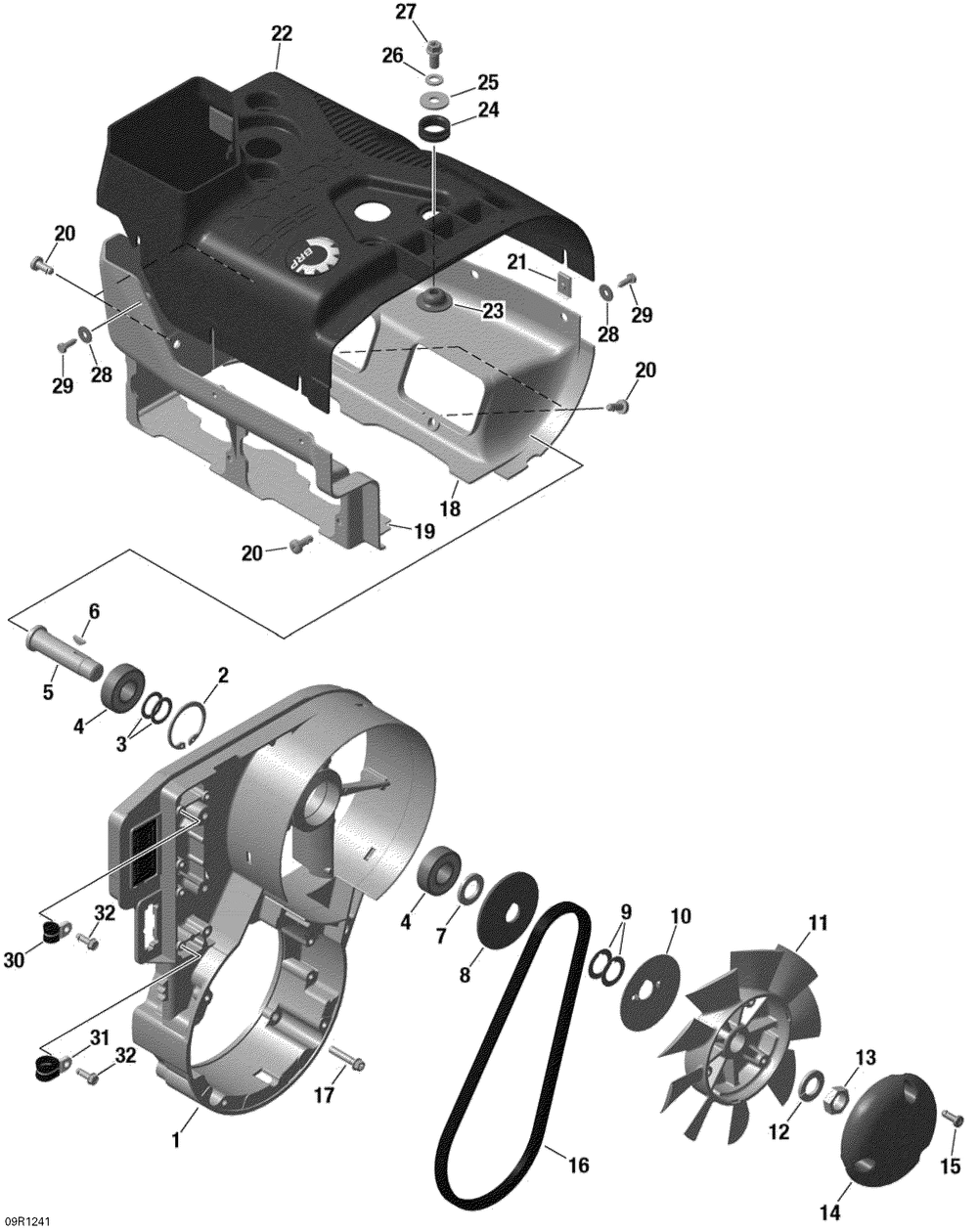

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FAN HOUSING | 1 | |
| 2 | LOCK RING (10.000 per pack) | 1 | |
| 3 | SHIM (10.000 per pack) | 2 | |
| 4 | BALL BEARING | 2 | |
| 5 | FAN AXLE | 1 | |
| 6 | WOODRUFF KEY (10.000 per pack) | 1 | |
| 7 | SPACER BUSHING | 1 | |
| 8 | FLANGE | 1 | |
| 9 | SHIM 0.5 MM (10.000 per pack) | 4 | |
| 9 | SHIM 0.2 MM (5.000 per pack) | 1 | |
| 10 | PROTECTION WASHER | 1 | |
| 11 | FAN | 1 | |
| 12 | RONDELLE-FREIN *WASHER-LOCKtahos_16 (5.000 per pack) | 1 | |
| 13 | NUT M16 | 1 | |
| 14 | FAN COVER | 1 | |
| 15 | SCREW Tightening Torque 4-5 Nm (5.000 per pack) | 3 | |
| 16 | COURROIE VENT. *BELT-V | 1 | |
| 17 | TORX FLANGED SCREW M6 X 30 | 4 | |
| 18 | LOWER COWLING | 1 | |
| 19 | LOWER COWLING | 1 | |
| 20 | TORX SCREW M6 X 16 | 1 | |
| 21 | SPRING NUT 4.8 (2.000 per pack) | 6 | |
| 22 | LOWER COWLING | 4 | |
| 23 | CUP WASHER | 1 | |
| 24 | RUBBER BUSHING | 4 | |
| 25 | RONDELLE *WASHER (5.000 per pack) | 4 | |
| 26 | WASHER-LOCK DIN.128 (10.000 per pack) | 4 | |
| 27 | Flanged Torx Screw M8 X 16 | 4 | |
| 28 | RONDELLE *WASHER | 4 | |
| 29 | TAPPING SCREW M4.8 X 16 Tightening Torque 2-3 Nm (10.000 per pack) | 7 | |
| 30 | CLAMP | 7 | |
| 31 | CLAMP | 1 | |
| 32 | TAPPING SCREW M5 X 16 (10.000 per pack) | 1 |
