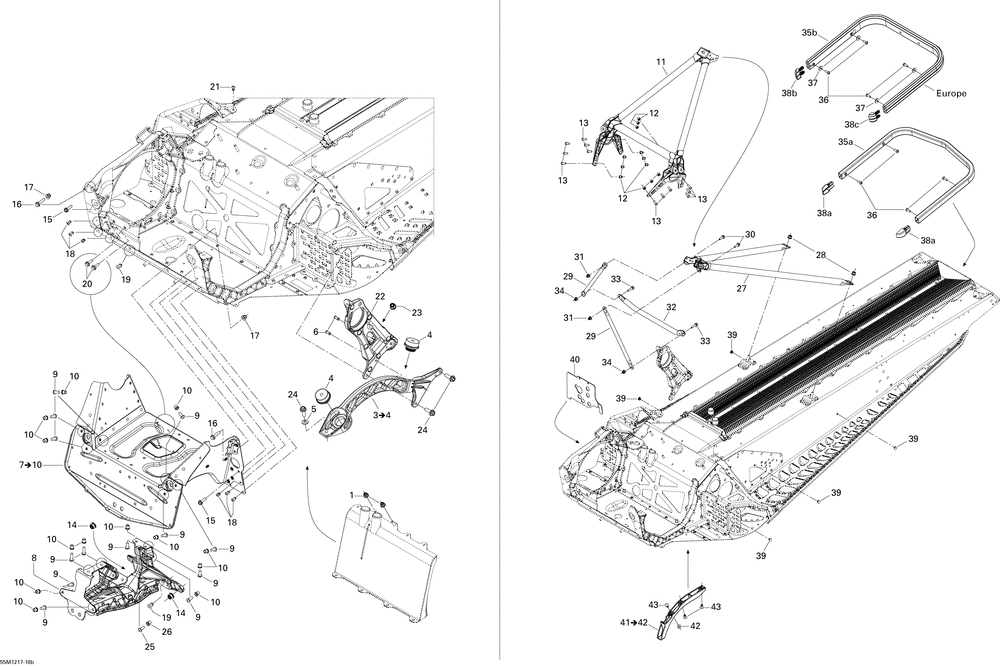

09- Frame and Components SE 137''

№	Наименование	Кол-во
1	Hex. Flanged Elastic Nut M6	2
3	BRACE ASS Y	1
4	RUBBER MOUNT	2
5	CONICAL SPRING WASHER M8 (10.000 per pack)	1
6	POP RIVET 3/16tahos_ (50.000 per pack)	2
7	MODULE S *CROSS MEMBER Includes 7 to 10	1
8	FRONT SUSPENSION SUPPORT	1
9	Hex. Flanged Screw M6 X 20	13
11	FRONT MEMBER Model-1200 4-TEC	1
14	Hex. Flanged Elastic Nut M8	2
15	HEX. FLANGED SCREW M6 X 16 (10.000 per pack)	2
16	Hex. Flanged Screw M6 X 25	2
18	MONOBOLT RIVET 4.8 MM (4.000 per pack)	6
19	MONOBOLT RIVET 6.4 (2.000 per pack)	2
20	Hex. Flanged Screw M6 X 16	2
21	AVEX RIVET (50.000 per pack)	1
22	DRIVEN PULLEY SUPPORT	1
24	HEX. FLANGED SCREW M8 X 25 NYLON (5.000 per pack)	3
27	REAR MEMBER	1
29	UPPER COLUMN SUPPORT Model-1200 4-TEC	2
31	Elastic Flanged Nut M6 X 1.0	2
32	CENTER COLUMN SUPPORT Model-1200 4-TEC	1
35a	BLACK REAR BUMPER North America Model	1
36	TORX-TRUSS SCREW M6 X 18 (5.000 per pack)	4
38a	BLACK CAP North America Model	2
39	BLACK DART 8 MM	5
40	HEAT SHIELD	1
41	FRONT PROTECTOR	1
42	RONDELLE *WASHER (10.000 per pack)	1
43	POP RIVET 3/16tahos_ (25.000 per pack)	3
