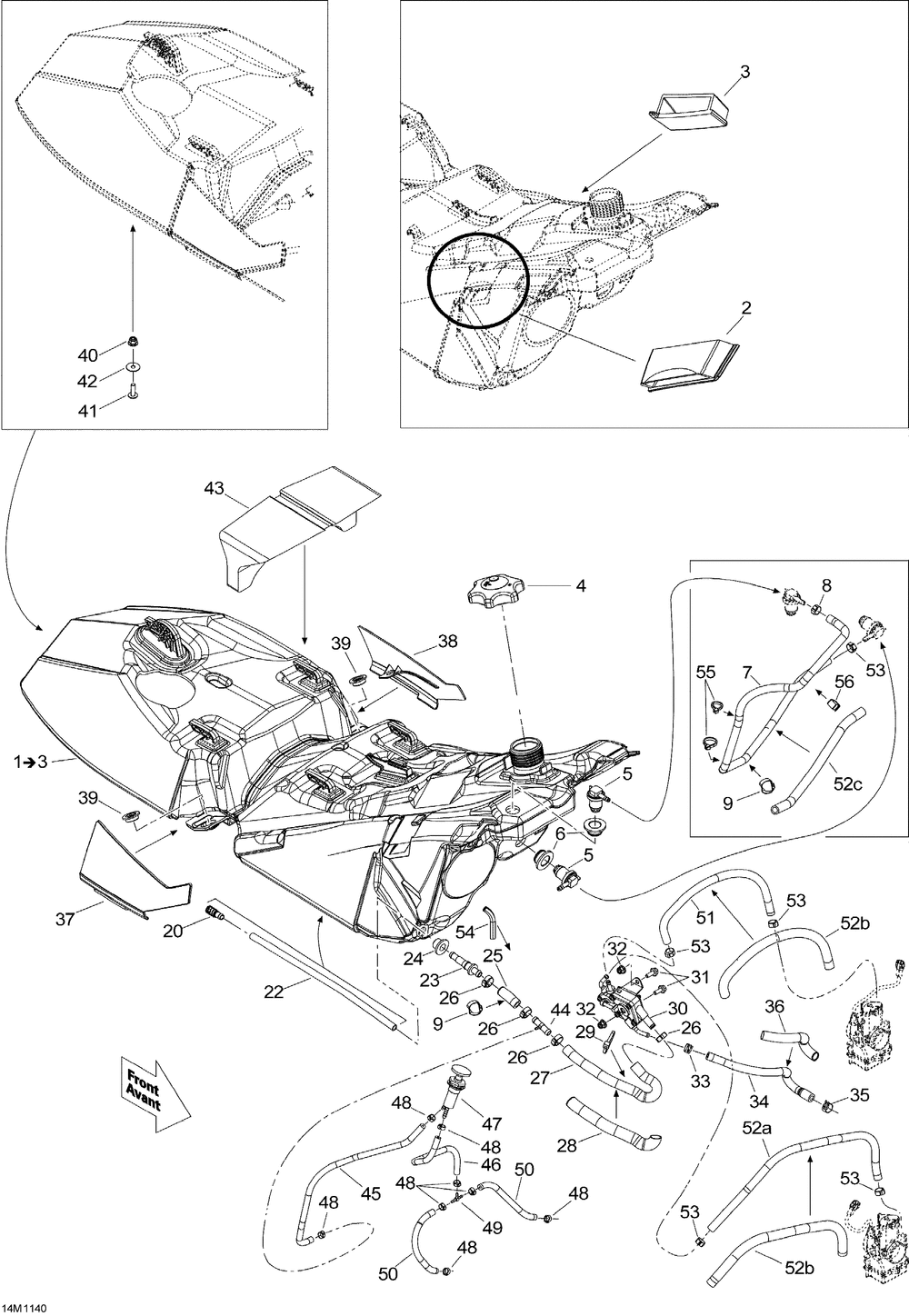

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK Includes 1 to 3 | 1 | |
| 2 | RH PANEL CLIP | 1 | |
| 3 | LH PANEL CLIP | 1 | |
| 4 | FUEL TANK CAP | 1 | |
| 5 | SOUPAPE *REMOTE VENT | 2 | |
| 6 | GROMMET | 2 | |
| 7 | BOYAU *HOSE | 1 | |
| 8 | Oetiker Gear Clamp | 1 | |
| 9 | Tie-Rap 180 mm | 1 | |
| 20 | FUEL FILTER | 1 | |
| 22 | BOYAU *HOSE | 1 | |
| 23 | MALE CONNECTOR (5.000 per pack) | 1 | |
| 24 | GROMMET | 1 | |
| 25 | BOYAU *HOSE | 1 | |
| 26 | OETIKER CLAMP (5.000 per pack) | 4 | |
| 27 | FORMED HOSE | 1 | |
| 28 | Tubing 16 mm | 1 | |
| 30 | FUEL PUMP | 1 | |
| 31 | Hex. Flanged Screw M6 X 16 | 2 | |
| 32 | Hex. Flanged Elastic Nut M6 | 2 | |
| 33 | Spring Clamp | 1 | |
| 34 | FORMED HOSE | 1 | |
| 35 | Universal Spring Clamp | 1 | |
| 36 | Tubing 13 mm (10.000 per pack) | 1 | |
| 37 | CAPUCHON DROIT *R.H. CAP | 1 | |
| 38 | CAPUCHON GAU. *L.H. CAP BOM | 1 | |
| 39 | SHOULDER BUSHING | 2 | |
| 41 | HEX. SCREW M6 X 20 (10.000 per pack) | 1 | |
| 42 | Flat Washer | 1 | |
| 43 | FOAM | 1 | |
| 44 | T-FITTING (10.000 per pack) | 1 | |
| 45 | BOYAU *HOSE | 1 | |
| 47 | AMORCEUR *PRIMER | 1 | |
| 48 | OETIKER CLAMP (5.000 per pack) | 8 | |
| 49 | T-FITTING (10.000 per pack) | 1 | |
| 51 | BOYAU *HOSE | 1 | |
| 54 | Trim (100.000 per pack) | 1 | |
| 55 | Tie-Rap 142 mm | 2 | |
| 56 | CLIP (10.000 per pack) | 1 |
