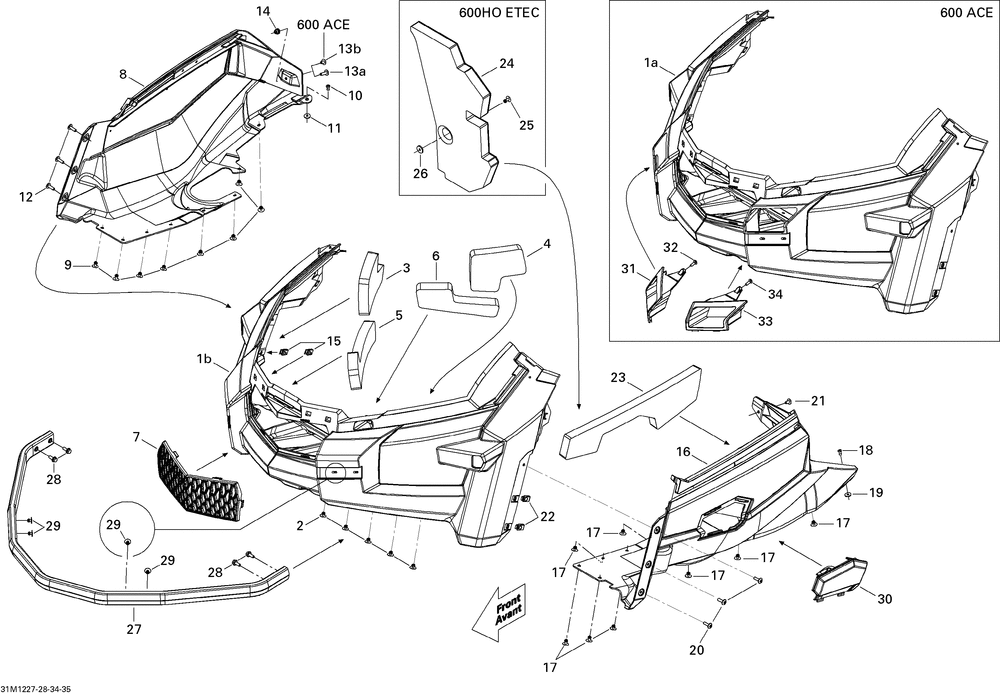

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1a | BOTTOM PAN | 1 | |
| 2 | Pop Rivet 3/16" | 5 | |
| 3 | RH UPPER BOTTOM PAN FOAM | 1 | |
| 4 | LH UPPER BOTTOM PAN FOAM | 1 | |
| 5 | RH LOWER BOTTOM PAN FOAM | 1 | |
| 6 | LH LOWER BOTTOM PAN FOAM | 1 | |
| 7 | GRILLE COQUE *GRILL-PAN BOTTOM | 1 | |
| 8 | BLACK RH BOTTOM PAN | 1 | |
| 10 | Pop Rivet 3/16" | 1 | |
| 11 | RONDELLE *WASHER (10.000 per pack) | 1 | |
| 12 | TORX SCREW M6 X 20 Model-RT STD | 3 | |
| 13b | TORX TRUSS SCREW M6 X 10 | 1 | |
| 15 | Panel Nut M6 X 1.0 | 2 | |
| 16 | BLACK LH BOTTOM PAN | 1 | |
| 21 | Torx Truss Screw M6 X 12 | 1 | |
| 23 | LH BOTTOM PAN FOAM | 1 | |
| 27 | FRONT BUMPER | 1 | |
| 28 | Hex. Flanged Screw M6 X 16 | 4 | |
| 30 | BLACK BOTTOM PAN DOOR | 1 | |
| 31 | RH AIR INLET | 1 | |
| 32 | TRUSS HEAD TORX SCREW K50 X 16 (5.000 per pack) | 1 | |
| 33 | LH AIR INLET | 1 |
