SKI-DOO Freeride 154 800R E-TEC (Racing) Freeride 154 800R E-TEC (Racing) 08- Rear Suspension Runner

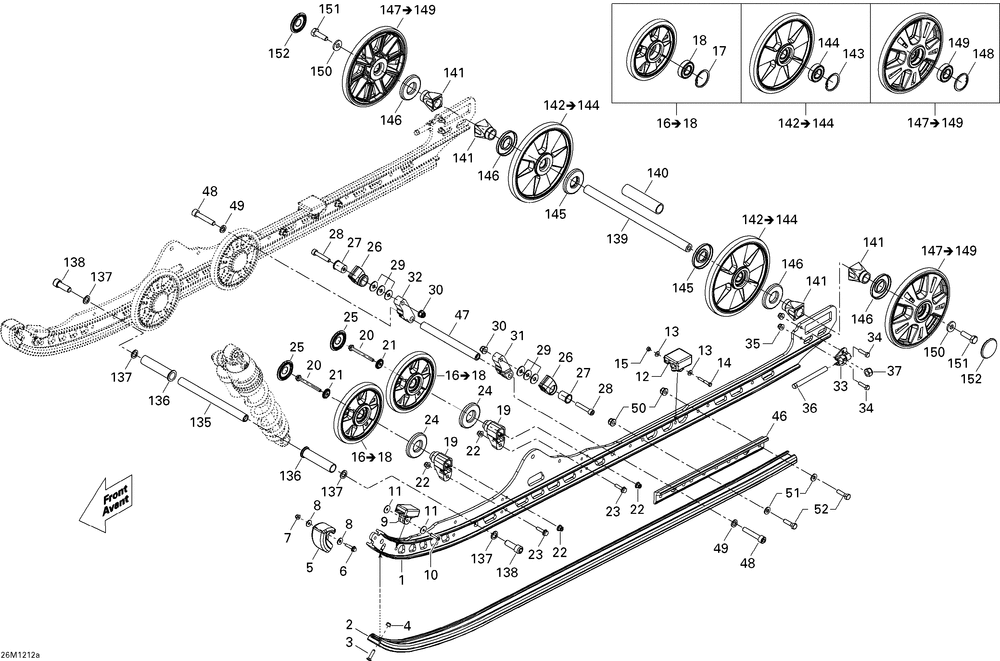

08- Rear Suspension Runner
№ Наименование Примечание Кол-во
1 RUNNER 154" GOLD 1
2 SLIDER SHOE 154" 154" 1
3 PHILLIPS SCREW M6 X 25 (4.000 per pack) 1
4 Elastic Stop Nut M6 1
5 RUNNER PROTECTOR 2
6 HEX. FLANGED SCREW M5 X 25 2
7 FLANGED ELASTIC NUT M5 (4.000 per pack) 2
8 RONDELLE *WASHER (50.000 per pack) 4
9 RUBBER STOPPER 2
10 POP RIVET 3/16" (5.000 per pack) 2
11 RONDELLE * WASHER (6.000 per pack) 4
12 RAIL STOPPER MIDDLE FREERIDE 2
13 RONDELLE *WASHER 4
14 HEX. CAP SCREW M5 X 35 (2.000 per pack) 2
15 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 2
16 BLACK WHEEL ASS Y 152 MM 4
17 RETAINING RING 1
18 BALL BEARING 1
19 CASTED SUPPORT 4
20 HEX. FLANGE SCREW M6 X 70 (2.000 per pack) 4
21 WHEEL CUP M6 4
22 ELASTIC FLANGE NUT M6 (5.000 per pack) 8
23 HEX FLANGED SCREW M6 X 25 (5.000 per pack) 4
24 LABYRINTH SEAL 4
25 BLACK WHEEL CAP 4
26 SPRING SUPPORT 2
27 RETAINER CUSHION (2.000 per pack) 2
28 SOCKET HEAD SCREW M8 X 45 (25.000 per pack) 2
29 Flat Washer 8 mm 6
30 ELASTIC FLANGE NUT M8 (5.000 per pack) 2
31 LH SPRING SUPPORT 1
32 RH SPRING SUPPORT 1
33 TENDEUR *TENSIONER 2
34 HEX. SCREW CAP FULL THREAD M6 X 25 (5.000 per pack) 4
35 Elastic Flanged Nut M6 X 1.0 4
36 HEX SCREW M10 X 100 2
37 ELASTIC LOCKING NUT M10 (2.000 per pack) 2
46 PAINTED REINFORCEMENT RAIL 2
47 AXE *AXLE 1
48 SOCKET SCREW M10 X 55 2
49 Washer 2
50 Hex. Flanged Elastic Nut M8 4
51 Washer 4
52 HEX. CAP SCREW FULL THREAD M8 X 30 4
135 CENTER SHOCK SHAFT 1
136 ENTRETOISE *SPACER 2
137 RONDELLE *WASHER (5.000 per pack) 4
138 SOCKET SCREW M12 X 35 (2.000 per pack) 2
139 REAR AXLE 1
140 REAR SPACER 1
141 REAR WHEEL SPACER 4
142 WHEEL 200 STD Includes 144 to 146 2
145 LABYRINTH SEAL 2
147 WHEEL 200 BLACK Includes 600 to 600002 2
150 RONDELLE *WASHER (2.000 per pack) 2
151 HEX. SCREW WITH NYLON (10.000 per pack) 2
