SKI-DOO Summit FREERIDE 800R E-TEC Summit FREERIDE 800R E-TEC 07- Front Suspension And Ski

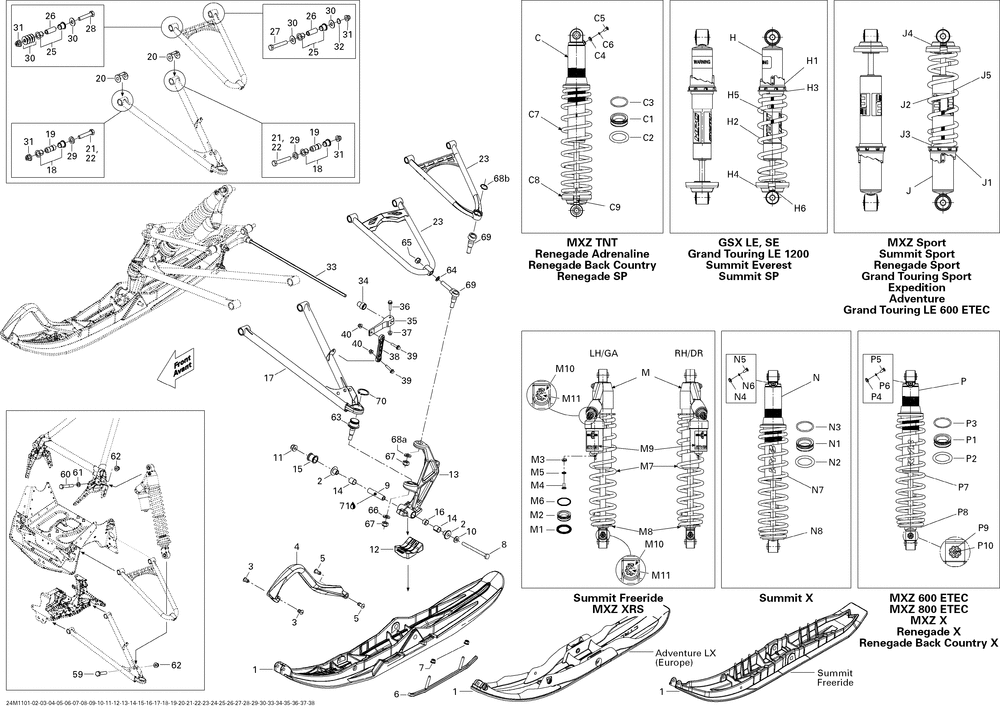

07- Front Suspension And Ski
№ Наименование Примечание Кол-во
M LH FRONT SHOCK HPG SS41-43 Includes 87 to 87h 1
M LH FRONT SHOCK HPG SS38-40 UMBA UMBB Model 1
M RH FRONT SHOCK HPG SS38-40 UMBA UMBB Model 1
M RH FRONT SHOCK HPG SS41-43 Includes 87 to 87h 1
M1 O-RING 2
M10 ADJUSTMENT KNOB 2
M11 SOCKET SCREW M3 X 10 Package Backcountry X (5.000 per pack) 2
M2 PISTON RING 2
M3 AIR VALVE 2
M4 SCREW *VIS 2
M5 O-RING 2
M6 O-RING 2
M7 GOLD SPRING UMBA UMBB Model 2
M7 GOLD SPRING 2
M8 SPRING STOPPER Package BCX Europe 2
M9 SHOCK ADJUSTMENT DECAL 2
1 BLACK PILOT SKI ASS Y GTX Europe 2
2 CUSHION 2
3 RETAINER (16.000 per pack) 2
4 BLACK HANDLE 1
5 RETAINER 2
6 ROUND CARBIDE RUNNER GTX North America 2
6 CARBIDE RUNNER KIT North America models 2
7 Hex. Flanged Elastic Nut M8 4
8 HEX. SCREW M10 X 130 (5.000 per pack) 2
9 SPACER (2.000 per pack) 2
10 RONDELLE *WASHER (25.000 per pack) 2
11 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 2
12 SKI STOPPER 2
13 GOLD RH SKI LEG Summit X Black-White 1
13 GOLD LH SKI LEG Summit X Black-White 1
13 GOLD RH SKI LEG 1
13 GOLD LH SKI LEG 1
14 BUSHING 4
14 BUSHING 4
15 SPACER 2
16 SPACER 4
16 SPACER 2
17 BLACK RH LOWER ARM 1
17 RH LOWER ARM 1
17 BLACK LH LOWER ARM 1
17 LH LOWER ARM 1
18 COUSSINET *BUSHING 8
18 CUSHION 8
19 BUSHING Package-X-T3 X 4
19 ALUMINUM BUSHING 4
20 WEAR PLATE 4
21 SCREW HEX. M10 X 70 4
23 LH UPPER ARM 1
23 RH UPPER ARM 1
23 LH UPPER ARM 1
23 RH UPPER ARM 1
25 COUSSINET *BUSHING 8
25 COUSSINET PIVOT*SWIVEL-BUSHING 8
26 BUSHING 4
27 SCREW HEX. M10 X 65 2
27 SCREW HEX. M10 X 60 (5.000 per pack) 2
28 SCREW HEX. M10 X 50 (4.000 per pack) 2
29 RONDELLE *WASHER (10.000 per pack) 4
30 RONDELLE *WASHER (5.000 per pack) 14
31 HEX. ELASTIC HEX. NUT M10 (5.000 per pack) 8
32 O-RING 2
33 STABILISATEUR *STABILISATOR 1
33 STABILISATEUR *STABILISATOR 1
34 COUSSINET *BUSHING 2
34 COUSSINET *BUSHING 2
35 STABILISATOR LEVER 2
35 STABILISATOR LEVER 2
36 Flanged Hex. Screw M6 X 30 2
37 Elastic Flanged Nut M6 X 1.0 2
38 DETACHABLE DOUBLE BALL JOINT 2
38 Sway Bar Double Joint Link 2
59 HEX. SCREW M10 X 55 (5.000 per pack) 2
60 HEX. SCREW M10 X 65 (5.000 per pack) 2
63 LOWER BALL JOINT 2
64 RONDELLE *WASHER (25.000 per pack) 6
65 Hex. Elastic Hex. Nut M12 2
66 FLAT WASHER 12 MM (10.000 per pack) 4
68b CIRCLIP (2.000 per pack) 2
69 UPPER BALL JOINT 2
69 UPPER BALL JOINT 2
70 Circlip 2
71 SUSPENSION GREASE 10 X 400 G 0
