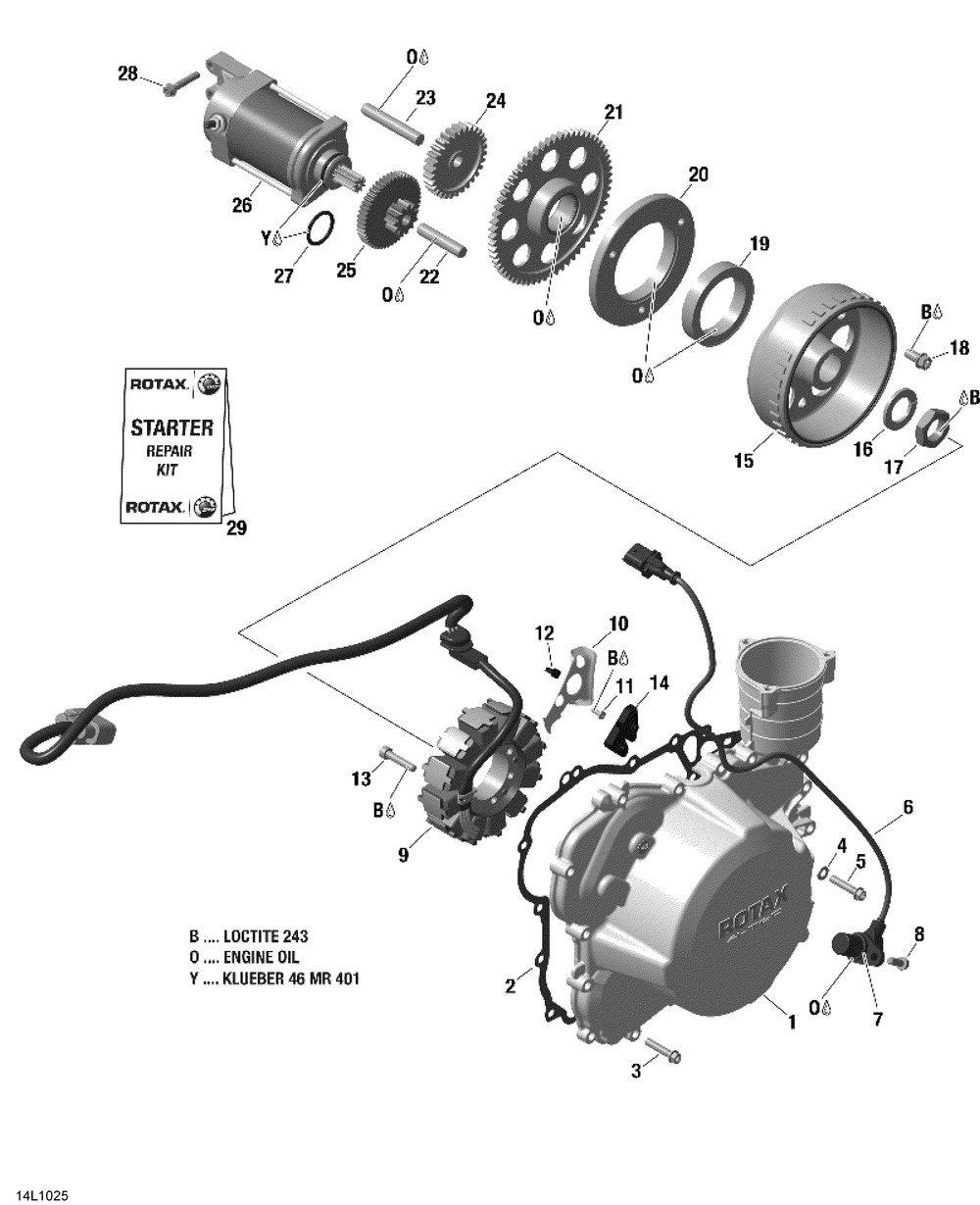

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| B | LOCTITE 243 10 ML | 0 | |
| O | SYNTHETIC OIL 4T 12X1 L. (12.000 per pack) | 0 | |
| Y | KLÜEBER PASTE 46 MR 401 60 G | 0 | |
| 1 | COUVERCLE *IGNITION COVER | 1 | |
| 2 | JOINT ETANCHE *GASKET | 1 | |
| 3 | Flanged Torx Screw M6 X 30 | 16 | |
| 4 | Sealing Washer | 1 | |
| 6 | Crankshaft Position Sensor Ass'y | 1 | |
| 7 | O-Ring | 1 | |
| 8 | Flanged Torx Screw M6 X 16 | 1 | |
| 9 | STATOR ASS Y Includes 9 to 12 | 1 | |
| 10 | CABLE HOLDER | 1 | |
| 11 | TORX SCREW 3.5 X 8 | 2 | |
| 12 | CLAMP | 1 | |
| 13 | Socket Head Screw M6 X 30 | 3 | |
| 14 | SPACER | 1 | |
| 15 | MAGNETO FLYWHEEL | 1 | |
| 16 | RONDELLE-FREIN *WASHER-LOCK 22 (10.000 per pack) | 1 | |
| 17 | HEX. NUT M22 X 1.5 | 1 | |
| 18 | Flanged Torx Screw M8 X 16 | 3 | |
| 19 | SPRAG CLUTCH | 1 | |
| 20 | HOUSING SPRAG CLUTCH | 1 | |
| 21 | FREE WHEEL GEAR 64 TEETH | 1 | |
| 22 | LOCATION PIN | 1 | |
| 23 | NEEDLE PIN | 1 | |
| 24 | GEAR 30 TEETH | 1 | |
| 25 | DOUBLE GEAR | 1 | |
| 26 | STARTER ASS Y Includes 26 to 27 | 1 | |
| 27 | O-Ring | 1 | |
| 29 | CARBON BRUSH SET | 1 |
