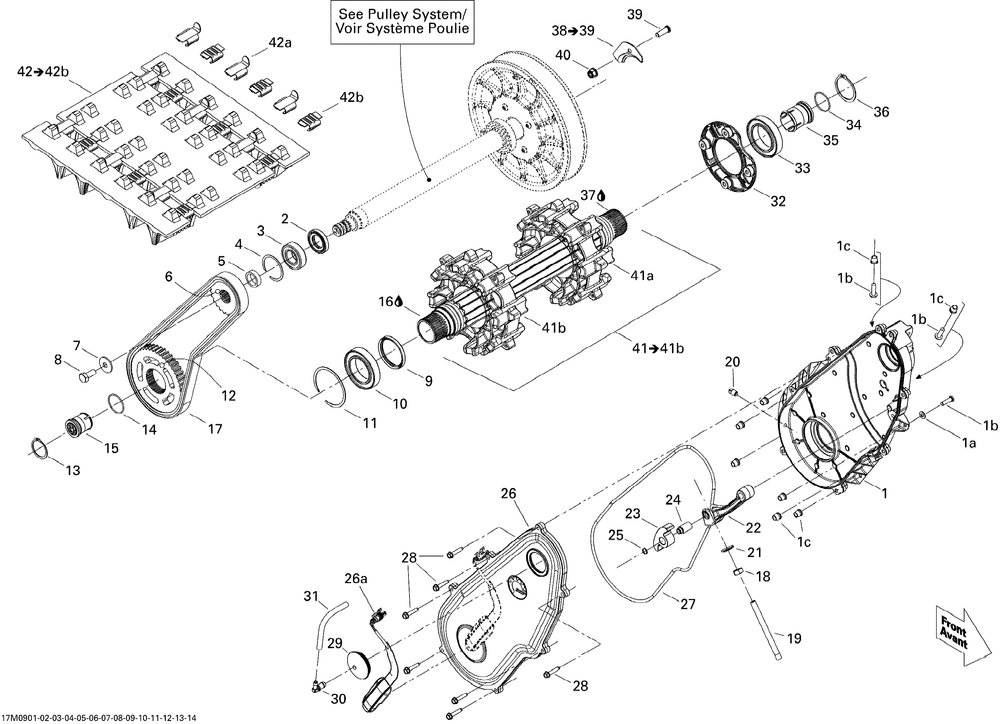

05- Drive System 500SS

№	Наименование	Кол-во
1	CHAINCASE	1
1a	Flat Washer 6 mm	1
1b	Hex. Flanged Screw M6 X 20	3
1c	FLANGED ELASTIC NUT M6 (8.000 per pack)	6
2	OIL SEAL	1
3	Ball Bearing	1
4	CIRCLIP	1
5	SHIM	1
6	SPROCKET 19 TEETH Package Sport Egine 600	1
7	SPRING WASHER M10 (3.000 per pack)	1
8	HEX. SCREW M10 X 25 (10.000 per pack)	1
9	SEAL	1
10	BALL BEARING	1
11	CIRCLIP	1
12	SPROCKET 49 TEETH Package SP 146 154 800ETEC	1
13	CIRCLIP	1
14	O-RING	1
15	MAGNETIC CAP	1
16	SUSPENSION GREASE 10 X 400 G	0
17	DRIVE CHAIN 104 LINKS Package Sport	1
18	Hex. Nut M10	1
19	ADJUSTMENT SCREW	1
20	MAGNETIC PLUG Package Sport	1
21	BONDED WASHER 3/8 X 7/8 (5.000 per pack)	1
22	CHAIN TENSIONER	1
23	SLIDER CHAIN	1
24	TENSIONNER AXLE	1
25	Circlip	1
26	CHAINCASE COVER ASS Y	1
26a	CAPTEUR *SENSOR	1
27	O-RING	1
28	FLANGED HEX. SCREW M6 X 30 Package Sport (10.000 per pack)	7
29	CAP	1
30	MALE CONNECTOR (5.000 per pack)	1
31	Hose, Polyurethane	1
32	BEARING HOUSING	1
33	Ball Bearing	1
38	BEARING HOUSING Includes 76 to 77	1
39	CLINCH STUD M8 X 25	1
40	Hex. Flanged Elastic Nut M8	1
41	DRIVE AXLE ASS Y Includes 41 to 41b	1
42	TRACK ASS Y 15X146X2.0	1
42a	TRACK GUIDE (32.000 per pack)	26
42b	CLEAT (50.000 per pack)	26
