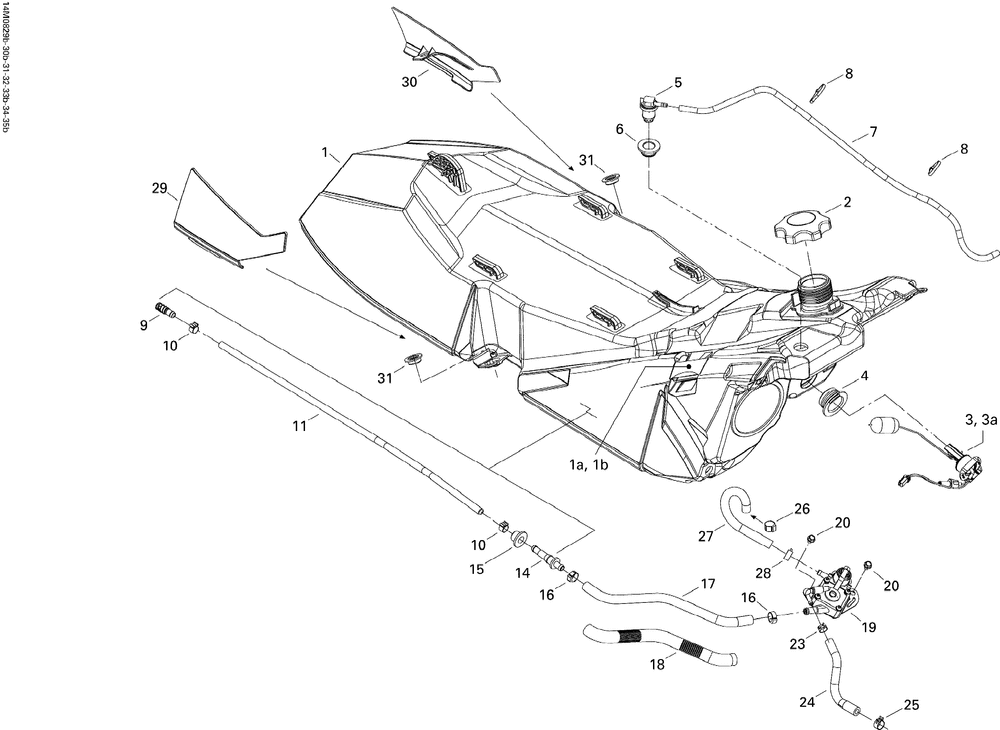

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK ASS Y | 1 | |
| 1a | RH PANEL CLIP | 1 | |
| 1b | LH CLIP | 1 | |
| 2 | FUEL TANK CAP | 1 | |
| 3 | FUEL LEVEL SENSOR ASS Y | 1 | |
| 3a | FUSE 0.5 AMPÈRE | 1 | |
| 4 | PASSE-FILS *GROMMET | 1 | |
| 5 | CHECK VALVE | 1 | |
| 6 | GROMMET | 1 | |
| 7 | Hose, Polyurethane | 1 | |
| 8 | Tie-Rap 180 mm | 2 | |
| 9 | FUEL FILTER | 1 | |
| 10 | NORMA SPRING CLAMP (5.000 per pack) | 2 | |
| 11 | BOYAU *HOSE | 1 | |
| 14 | MALE CONNECTOR (5.000 per pack) | 1 | |
| 15 | GROMMET | 1 | |
| 16 | OETIKER CLAMP (5.000 per pack) | 2 | |
| 17 | FORMED HOSE | 1 | |
| 18 | Tubing 16 mm | 1 | |
| 19 | FUEL POMPE | 1 | |
| 20 | HEX. FLANGED SCREW M6 X 10 (5.000 per pack) | 2 | |
| 23 | Spring Clamp | 1 | |
| 24 | FORMED HOSE | 1 | |
| 25 | Universal Spring Clamp | 1 | |
| 26 | Oetiker Clamp | 1 | |
| 27 | FORMED HOSE | 1 | |
| 28 | UNIVERSAL SPRING CLAMP (10.000 per pack) | 1 | |
| 29 | CAPUCHON DROIT *R.H. CAP | 1 | |
| 30 | CAPUCHON GAU. *L.H. CAP BOM | 1 | |
| 31 | SHOULDER BUSHING | 2 |
