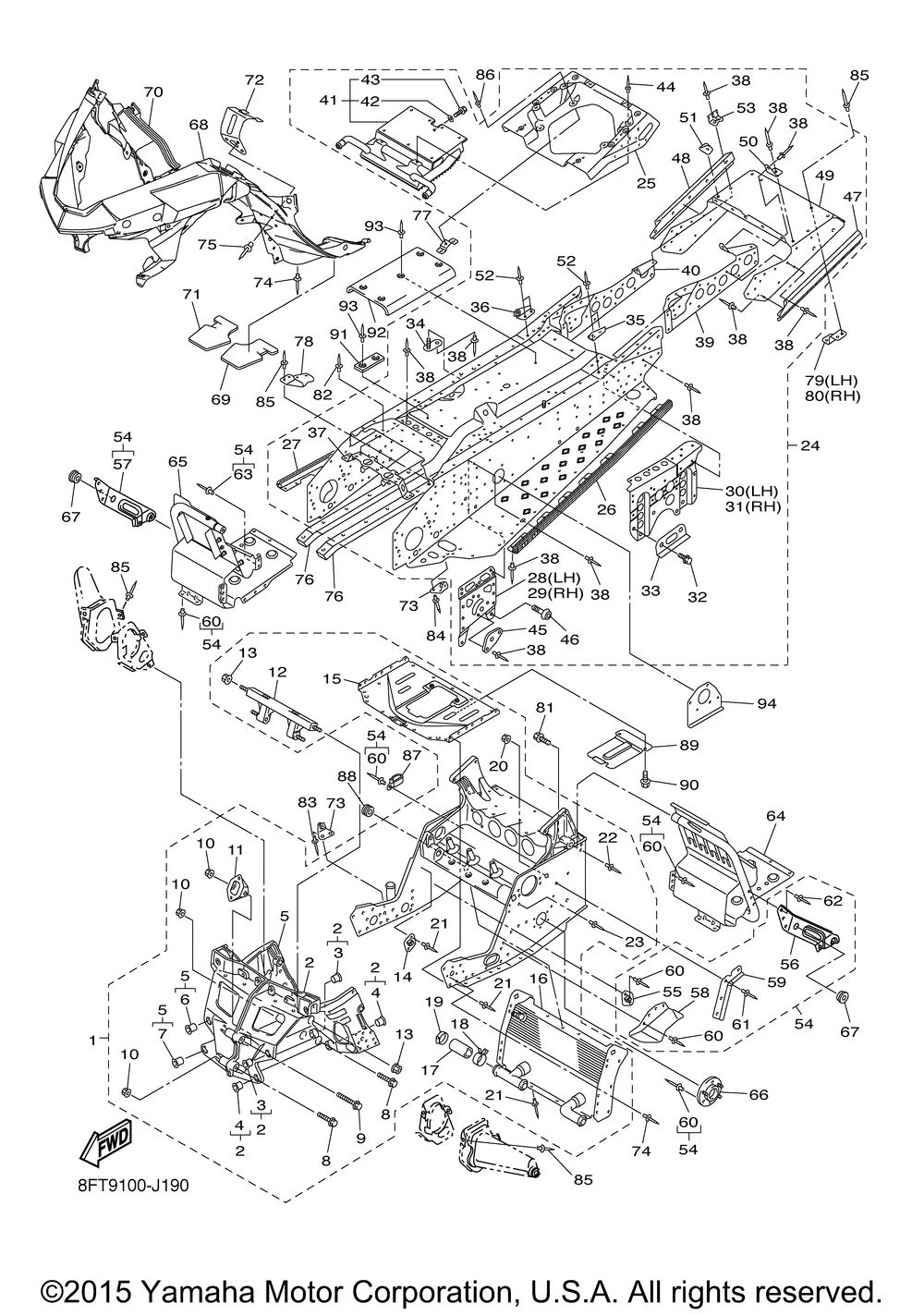

Yamaha APEX LTX_GT RX10LTZW/RX10LTGTZL/RX10LTGTZB APEX LTX_GT RX10LTZW/RX10LTGTZL/RX10LTGTZB FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BULKHEAD 1
3 BUSH SOLID 2
4 BUSH SOLID 2
5 BULKHEAD 2 1
8 BOLTFLANGE 3
9 BOLTFLANGE 1
10 NUT SELF LOCKING 4
11 BRACKET REGULATOR 1
12 BRACKET STEERING 1 1
13 NUTSELF-LOCKING 4
14 BRACKET CHAIN HOUSI 1
15 PROTECTOR 1
16 HEAT EXCHANGER ASSY 1
17 HOSE 7 1
18 CLIPSCISSOR 1
19 HOSE CLAMP ASSY 1
21 RIVET BLIND (4.7X16.4 YELLOW) 40
22 RIVET BLIND (4.8X17 YELLOW) 11
23 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 16
24 REAR FRAME COMP. 1
24 REAR FRAME COMP. 0
25 REINEFORCEMENT FRAM 1
26 REINFORCEMENT FOOTR 1
27 REINFORCEMENT FOOTR 1
28 BRACKET MAIN TRACK 1
29 BRACKET MAIN TRACK 1
30 BRACKET RR.TRACK SU 1
31 BRACKET RR.TRACK SU 1
32 BOLT FLANGE 4
33 PATCH 8 2
34 BRACKET FUEL TANK 2
35 BRACKET 1 1
36 BRACKET 2 1
37 PROTECTOR MUFFLER 1
39 PATCH 3 1
40 PATCH 4 1
41 HEAT EXCHANGER ASSY 1
42 WASHERSEAL 1
43 BOLT FLANGE 1
44 RIVET BLIND (5 per pack) 2
45 BRACKET MAIN TRACK 2
46 BOLT BUTTON HEAD 2
47 MEMBER SIDE 1 1
48 MEMBER SIDE 2 1
49 PANEL SUB FRAME 5 1
50 PATCH 8 1
51 PATCH 9 1
52 RIVET BLIND (5 per pack) 8
53 BRACKET REFLECTOR 1 2
54 FRAME CONNECTION KIT 1
56 BRACKET 5 1
57 BRACKET 6 1
58 COVER 2 1
59 CLAMP WIREHARNESS 1
61 RIVET BLIND (4.8X18.6 BLACK) 4
63 RIVET BLIND 4
64 FOOTREST COMP. 1 1
65 FOOTREST COMP. 2 1
66 HOUSING REINF SUB-A (L.H) 1
67 GROMMET 2
68 FRAME UNDER 1 1
69 DAMPER 2 1
70 FRAME UNDER 2 1
71 DAMPER 3 1
72 BRACKET GUARD FITTI 1
73 BRACKET 3 6
75 RIVET BLIND (4.7X19.5 BLACK) 3
76 PROTECTOR FRAME 2
77 BRACKET 7 2
78 BRACKET 7 4
79 BRACKET 3 1
80 BRACKET 4 1
81 BOLTFLANGE(8AB) 2
82 RIVET BLIND 12
83 RIVETBLIND (4.8X15.2 SILVER) 8
87 CLAMP 0
88 GROMMET 0
89 PROTECTOR FRAME FR 1
90 BOLT BUTTON HEAD 2
91 SPACER 4
92 SHIELD HEAT 1
93 RIVETBLIND (4.8X12.3) 13
94 PATCH 2 1
