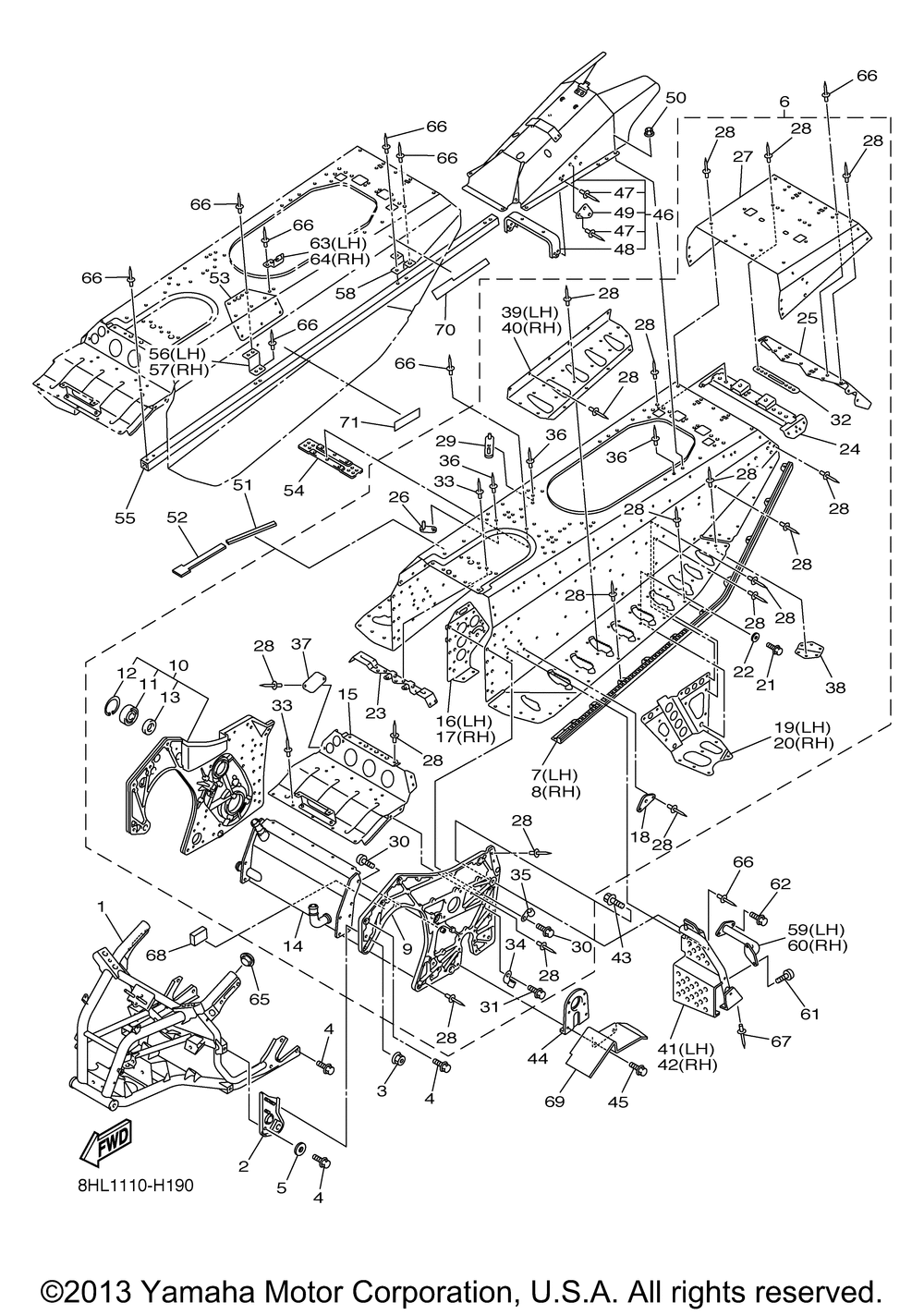

Yamaha FXNYTRO XTX FX10XTYL/FX10XTYW FXNYTRO XTX FX10XTYL/FX10XTYW FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BRACKET ENGINE 1
3 NUTSELF-LOCKING 3
4 BOLTFLANGE (JN5) 12
5 WASHERPLATE 1
6 REAR FRAME COMP. 1
7 REINFORCEMENT FOOTR 1
8 REINFORCEMENT FOOTR 1
9 REINF. HOUSING 1 1
10 HOUSING REINF SUB-A (R.H) 1
11 BEARING 1
12 CIRCLIP 54G 1
13 OIL SEAL 1
14 HEAT EXCHANGER ASSY 1
15 PANEL SUB FRAME 4 1
16 BRACKET MAIN TRACK 1
17 BRACKET MAIN TRACK 1
18 BRACKET MAIN TRACK 2
19 BRACKET RR.TRACK SU 1
20 BRACKET RR.TRACK SU 1
21 BOLT FLANGE 4
22 WASHER PLATE 4
23 PROTECTOR MUFFLER 1
24 BRACKET 7 1
25 REINEFORCEMENT FRAM 1
26 BRACKET FUEL TANK 2
27 PANEL SUB FRAME 6 1
28 RIVET BLIND (4.7X16.4 YELLOW) 1
29 BRACKET 8 4
30 BOLT BUTTON HEAD 2
31 BOLT FLANGE 8
32 NUT 1
33 RIVET BLIND (4.8X12 YELLOW) 11
34 CLAMP 1
35 CLAMP 1
36 RIVET BLIND (4.8X12.1 YELLOW) 6
37 PLATE COVER 1
38 PATCH 1 2
39 PATCH 3 1
40 PATCH 4 1
41 FOOTREST COMP. 1 1
42 FOOTREST COMP. 2 1
43 BOLTFLANGE 2
44 HOUSING REINF SUB-A (L.H) 1
45 BOLT FLANGE 2
46 PANEL SUB FRAME 5 1
48 STAY MUFFER 1
49 BRACKET SEAT FITTIN 2
50 NUT CROWN 8
51 SEAL GUARD 2
52 SEAL GUARD 2
53 PATCH 7 2
54 PATCH 8 1
55 PROTECTOR FRAME AP 2
56 BRACKET 5 1
57 BRACKET 6 1
58 BRACKET PROTECTOR R 2
59 BAR FOOTREST 1 1
60 BAR FOOTREST 2 1
61 BOLT BUTTON HEAD 4
62 BOLT FLANGE 4
63 BRACKET REAR FENDER 1
64 BRACKET REAR FENDER 1
65 CAP 2
67 RIVET BLIND 4
68 DAMPER 1
69 PROTECTOR FRAME 1
70 GRAPHIC 1 UR FOR DPBSE 2
70 GRAPHIC 1 UR FOR BWS1 2
71 PLATE EPA OFFROAD 2 1
