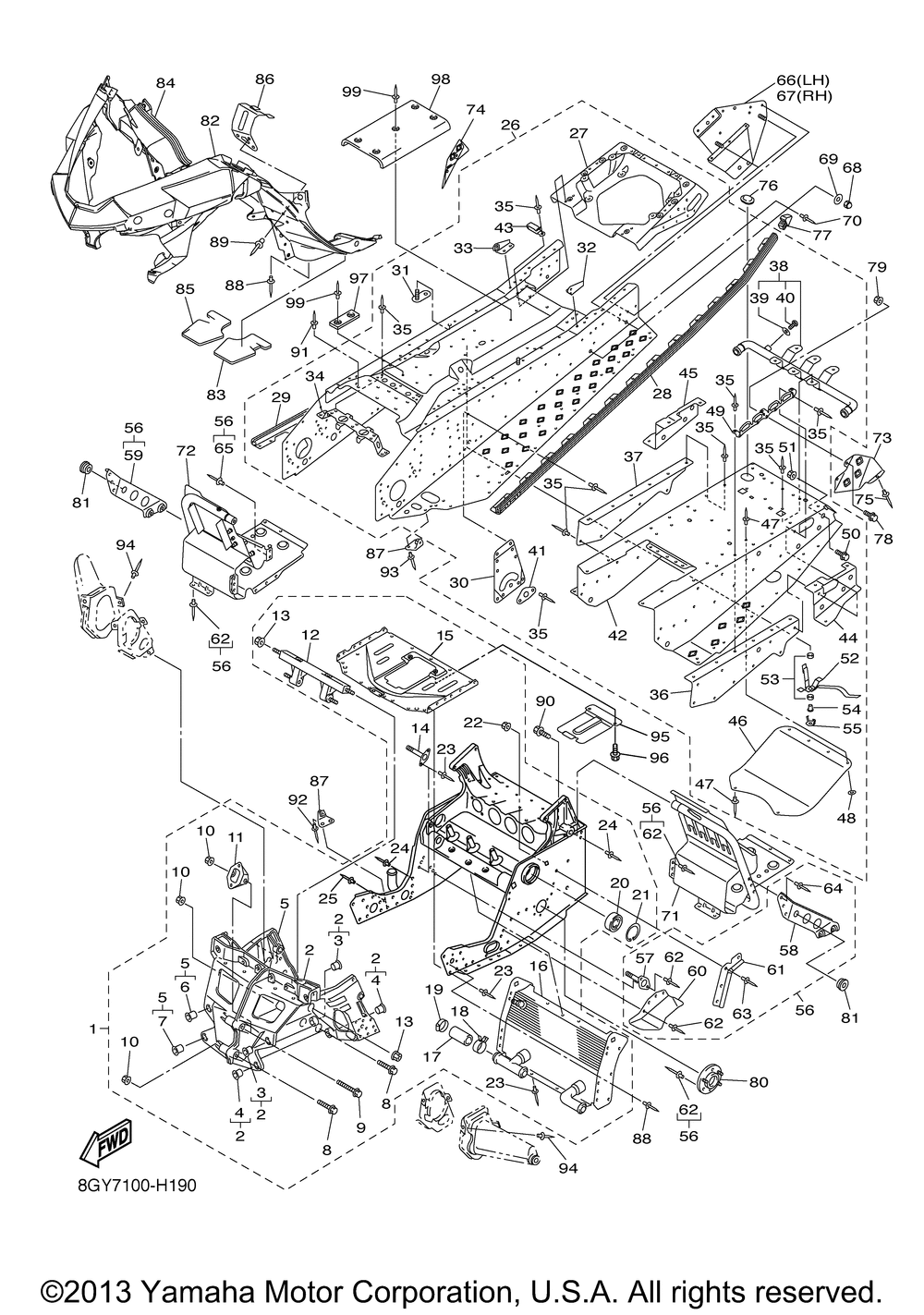

Yamaha APEX MTX RX10MTYL/RX10MTYB APEX MTX RX10MTYL/RX10MTYB FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BULKHEAD 1
3 BUSH SOLID 2
4 BUSH SOLID 2
5 BULKHEAD 2 1
8 BOLTFLANGE 3
9 BOLTFLANGE 1
10 NUT SELF LOCKING 4
11 BRACKET REGULATOR 1
12 BRACKET STEERING 1 1
13 NUTSELF-LOCKING 4
14 BRACKET CHAIN HOUSI 1
15 PROTECTOR 1
16 HEAT EXCHANGER ASSY 1
17 HOSE 7 1
18 CLIPSCISSOR 1
19 HOSE CLAMP ASSY 1
20 BEARING 1
21 CIRCLIP 54G 1
23 RIVET BLIND (4.7X16.4 YELLOW) 55
24 RIVET BLIND (4.8X17 YELLOW) 11
25 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 1
26 REAR FRAME COMP. 1
27 REINEFORCEMENT FRAM 1
28 REINFORCEMENT FOOTR 1
29 REINFORCEMENT FOOTR 1
30 BRACKET MAIN TRACK 2
31 BRACKET FUEL TANK 2
32 BRACKET 1 1
33 BRACKET 2 1
34 PROTECTOR MUFFLER 1
36 PATCH 3 1
37 PATCH 4 1
38 HEAT EXCHANGER ASSY 1
39 WASHERSEAL 1
40 SCREW PAN HEAD 1
41 BRACKET MAIN TRACK 2
42 PANEL SUB FRAME 5 1
43 CLAMP 1
44 PATCH 1 1
45 PATCH 2 1
46 PROTECTOR FRAME 3 1
47 RIVET BLIND 6
48 WASHERPLATE 6
49 HOOK 2
50 BOLT FLANGE 2
51 Гайка с фланцем 2
52 STAY MUFFER 1
53 DAMPER MUFFLER 2
54 COLLAR 1
55 STAY MUFFLER 1
56 FRAME CONNECTION KIT 1
57 BRACKET CHAIN HOUSI 2
58 BRACKET 5 1
59 BRACKET 6 1
60 COVER 2 1
61 CLAMP WIREHARNESS 1
63 RIVET BLIND (4.8X18.6 BLACK) 4
65 RIVET BLIND 4
66 BRACKET RR.TRACK SU 1
67 BRACKET RR.TRACK SU 1
68 NUT 4
69 WASHER PLATE 4
70 RIVET BLIND (5 per pack) 10
71 FOOTREST COMP. 1 1
72 FOOTREST COMP. 2 1
73 PROTECTOR FRAME A 1
74 PROTECTOR FRAME B 1
76 CAP 1
77 PLUG 2
80 HOUSING REINF SUB-A (L.H) 1
81 GROMMET 2
82 FRAME UNDER 1 1
83 DAMPER 2 1
84 FRAME UNDER 2 1
85 DAMPER 3 1
86 BRACKET GUARD FITTI 1
87 BRACKET 3 6
89 RIVET BLIND (4.7X19.5 BLACK) 3
90 BOLTFLANGE(8AB) 2
91 RIVET BLIND 12
92 RIVETBLIND (4.8X15.2 SILVER) 8
93 RIVET BLIND (5 per pack) 4
95 PROTECTOR FRAME FR 1
96 BOLT BUTTON HEAD 2
97 SPACER 4
98 SHIELD HEAT 1
99 RIVETBLIND (4.8X12.3) 13
