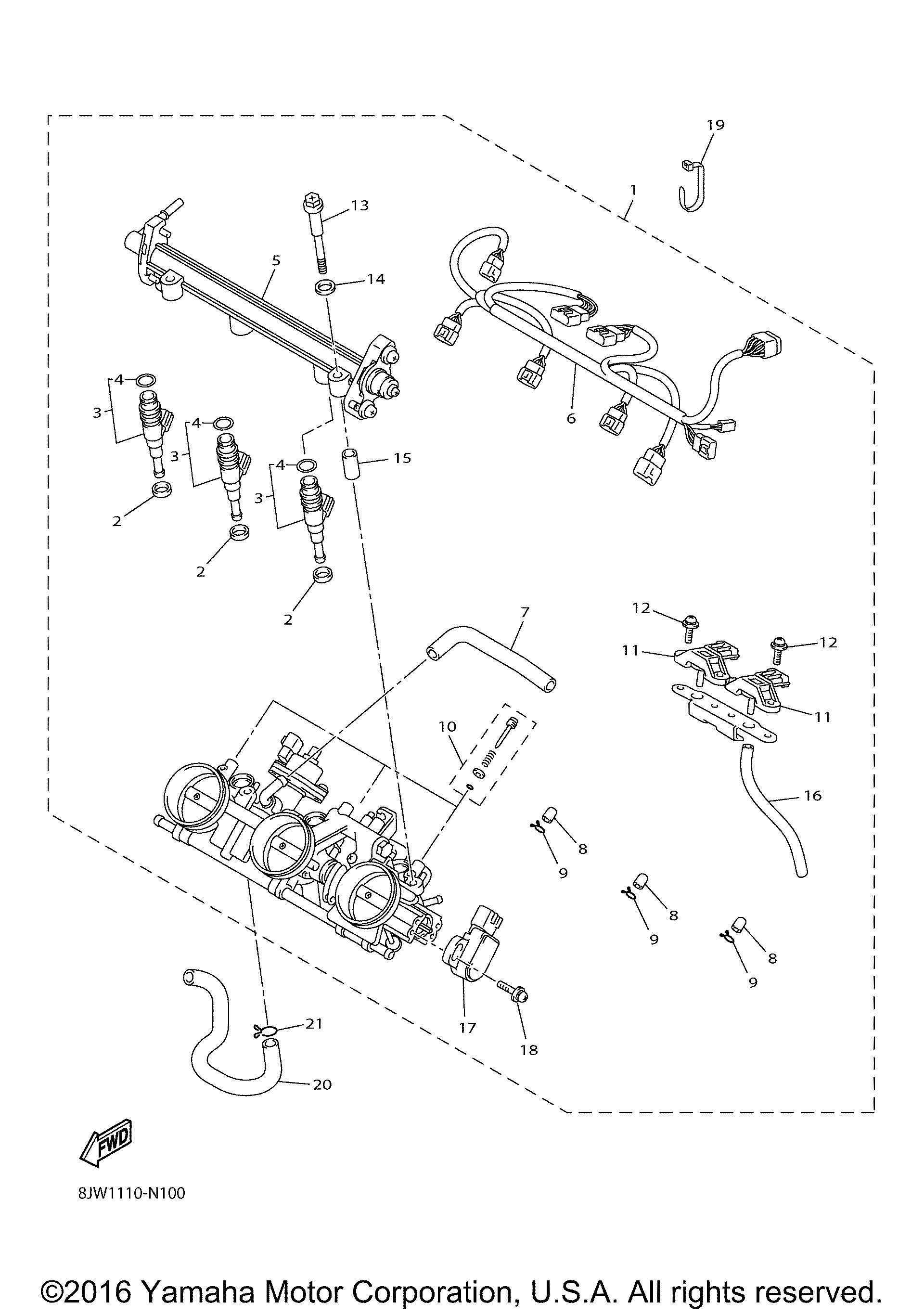

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | THROTTLE BODY ASSY | 1 | |
| 2 | GASKET MANIFOLD | 3 | |
| 3 | INJECTOR ASSY | 3 | |
| 4 | O-RING | 1 | |
| 5 | PIPE INLET ASSEMBLY | 1 | |
| 6 | EXTENSION WIRE HARN | 1 | |
| 7 | HOSE AIR | 1 | |
| 8 | CAP | 6 | |
| 9 | CLIPPIPE | 6 | |
| 10 | ADJUST SCREW SET | 3 | |
| 11 | SENSOR PRESSURE | 2 | |
| 12 | SCREW | 4 | |
| 13 | BOLT 1 | 2 | |
| 14 | WASHER | 2 | |
| 15 | COLLAR | 2 | |
| 16 | PIPE | 1 | |
| 17 | THROTTLE SENSOR ASSY | 1 | |
| 18 | SCREW | 2 | |
| 19 | TIE CABLE-8.5/7.5/7 (8 INCH) UR UN (10 per pack) | 1 | |
| 19 | CLAMP 2 (11.5 INC (11.5 INCH) UN (10 per pack) | 1 | |
| 20 | HOSE 1 | 1 | |
| 21 | CLAMP 24 (2 per pack) | 1 |
