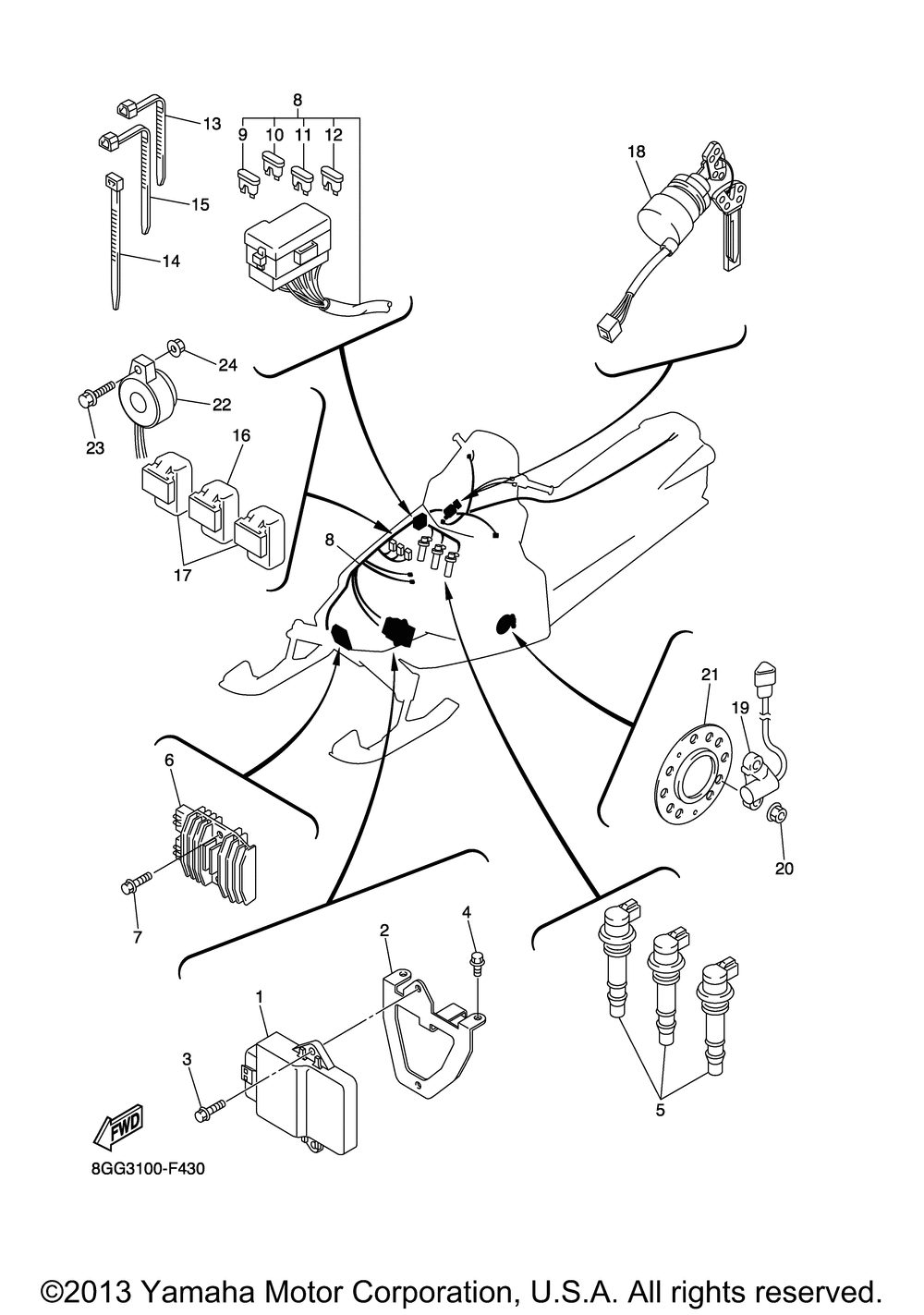

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | IGNITOR UNIT ASSY | 1 | |
| 2 | BRACKET UNIT | 1 | |
| 3 | BOLTFLANGE | 2 | |
| 4 | BOLTFLANGE | 2 | |
| 5 | IGNITION COIL ASSY | 3 | |
| 6 | RECTIFIER & REGULATO | 1 | |
| 7 | BOLTFLANGE | 2 | |
| 8 | WIRE HARNESS ASSY | 1 | |
| 9 | FUSE (20A-BL) (20A-BL) | 3 | |
| 10 | FUSE (10A) (10A-BL) | 2 | |
| 11 | FUSE (15A) (15A-BL) | 2 | |
| 12 | FUSE (3A-BL) | 2 | |
| 13 | Хомут | 5 | |
| 14 | Хомут | 5 | |
| 15 | Хомут | 3 | |
| 16 | RELAY ASSY (G8HN-1C4T-DJ-Y52) | 1 | |
| 17 | RELAY ASSY (8DM-11) | 2 | |
| 18 | MAIN SWITCH ASSY | 1 | |
| 19 | SENSOR SPEED | 1 | |
| 20 | NUTLOCK | 4 | |
| 21 | HOUSING FRONT AXLE | 1 | |
| 22 | BUZZER | 1 | |
| 23 | BOLT (3JK) | 1 | |
| 24 | NUT FLANGE 3GM (BLA | 1 |
