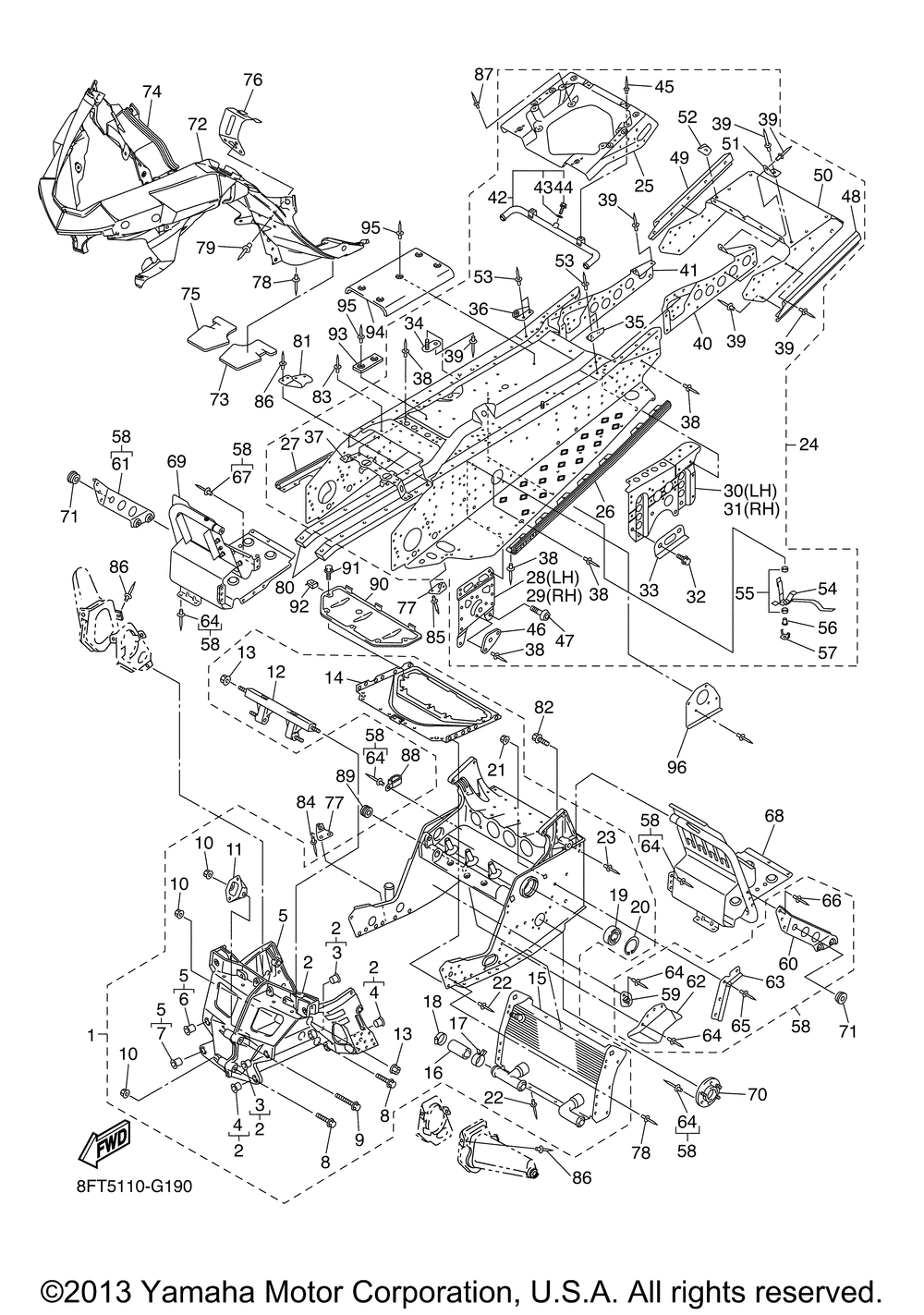

Yamaha APEX LTX RX10LTXB APEX LTX RX10LTXB FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BULKHEAD 1
3 BUSH SOLID 2
4 BUSH SOLID 2
5 BULKHEAD 2 1
8 BOLTFLANGE 3
9 BOLTFLANGE 1
10 NUT SELF LOCKING 4
11 BRACKET REGULATOR 1
12 BRACKET STEERING 1 1
13 NUTSELF-LOCKING 4
14 PROTECTOR 1
15 HEAT EXCHANGER ASSY 1
16 HOSE 7 1
17 CLIPSCISSOR 1
18 HOSE CLAMP ASSY 1
19 BEARING 1
20 CIRCLIP 54G 1
22 RIVET BLIND (4.7X16.4 YELLOW) 61
23 RIVET BLIND (4.8X17 YELLOW) 6
24 REAR FRAME COMP. 1
25 REINEFORCEMENT FRAM 1
26 REINFORCEMENT FOOTR 1
27 REINFORCEMENT FOOTR 1
28 BRACKET MAIN TRACK 1
29 BRACKET MAIN TRACK 1
30 BRACKET RR.TRACK SU 1
31 BRACKET RR.TRACK SU 1
32 BOLT FLANGE 4
33 PATCH 8 2
34 BRACKET FUEL TANK 2
35 BRACKET 1 1
36 BRACKET 2 1
37 PROTECTOR MUFFLER 1
38 RIVET BLIND 1
40 PATCH 3 1
41 PATCH 4 1
42 HEAT EXCHANGER ASSY 1
43 WASHERSEAL 1
44 BOLTFLANGE 1
45 RIVET BLIND (5 per pack) 2
46 BRACKET 2
47 BOLT BUTTON HEAD 2
48 MEMBER SIDE 1 1
49 MEMBER SIDE 2 1
50 PANEL SUB FRAME 5 1
51 PATCH 8 1
52 PATCH 9 1
53 RIVET BLIND (5 per pack) 8
54 STAY MUFFER 1
55 DAMPER MUFFLER 2
56 COLLAR 1
57 STAY MUFFLER 1
58 FRAME CONNECTION KIT 1
59 BRACKET CHAIN HOUSI 2
60 BRACKET 5 1
61 BRACKET 6 1
62 COVER 2 1
63 CLAMP WIREHARNESS 1
65 RIVET BLIND (4.8X18.6 BLACK) 4
66 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 10
68 FOOTREST COMP. 1 1
69 FOOTREST COMP. 2 1
70 HOUSING REINF SUB-A (L.H) 1
71 GROMMET 2
72 FRAME UNDER 1 1
73 DAMPER 2 1
74 FRAME UNDER 2 1
75 DAMPER 3 1
76 BRACKET GUARD FITTI 1
77 BRACKET 3 6
79 RIVET BLIND (4.7X19.5 BLACK) 3
80 PROTECTOR FRAME 2
81 BRACKET 7 4
82 BOLTFLANGE(8AB) 2
83 RIVET BLIND 12
84 RIVETBLIND (4.8X15.2 SILVER) 8
88 CLAMP 2
89 GROMMET 1
90 PROTECTOR FRAME 1
91 BOLT 5
92 NUT SPRING (4ES) 5
93 SPACER 4
94 SHIELD HEAT 1
95 RIVETBLIND (4.8X12.3) 13
96 PATCH 2 1
