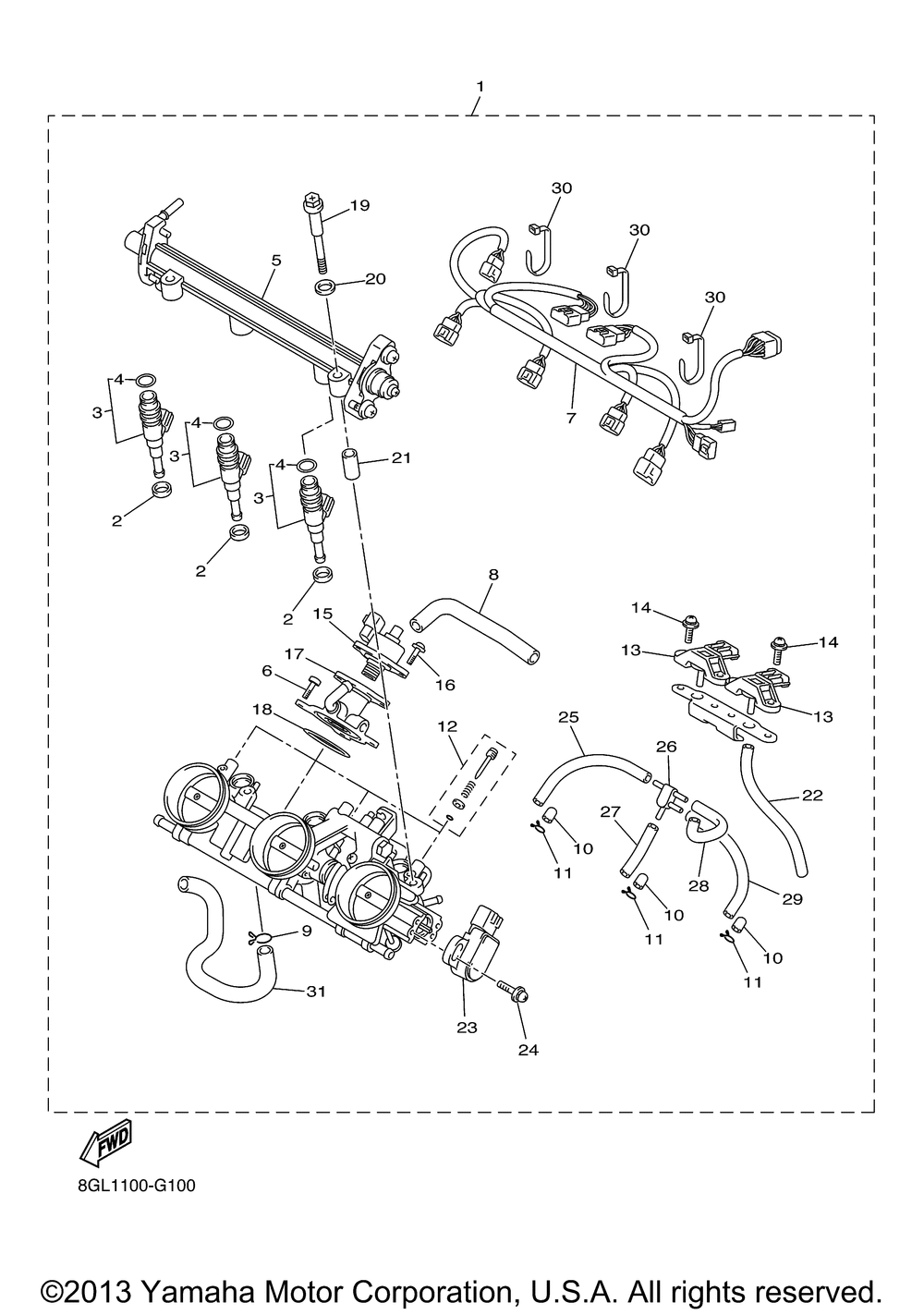

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | THROTTLE BODY ASSY | 1 | |
| 2 | GASKET MANIFOLD | 3 | |
| 3 | INJECTOR ASSY | 3 | |
| 4 | O-RING | 1 | |
| 5 | PIPE INLET ASSEMBLY | 1 | |
| 6 | SCREW | 3 | |
| 7 | EXTENSION WIRE HARN | 1 | |
| 8 | HOSE AIR | 1 | |
| 9 | CLIP | 1 | |
| 10 | CAP | 3 | |
| 11 | CLIPPIPE | 3 | |
| 12 | ADJUST SCREW SET | 3 | |
| 13 | SENSOR PRESSURE | 2 | |
| 14 | SCREW | 4 | |
| 15 | MOTOR ASSY | 1 | |
| 16 | SCREW | 3 | |
| 17 | BODY ASSY | 1 | |
| 18 | O-RING | 1 | |
| 19 | BOLT 1 | 2 | |
| 20 | WASHER | 2 | |
| 21 | COLLAR | 2 | |
| 22 | PIPE | 1 | |
| 23 | THROTTLE SENSOR ASSY | 1 | |
| 24 | SCREW | 2 | |
| 25 | HOSE | 1 | |
| 26 | CONNECTOR | 1 | |
| 27 | PIPE | 1 | |
| 28 | HOSE AIR 2 | 1 | |
| 29 | HOSE AIR 3 | 1 | |
| 30 | CLIPPIPE | 3 | |
| 31 | HOSE 1 | 1 |
