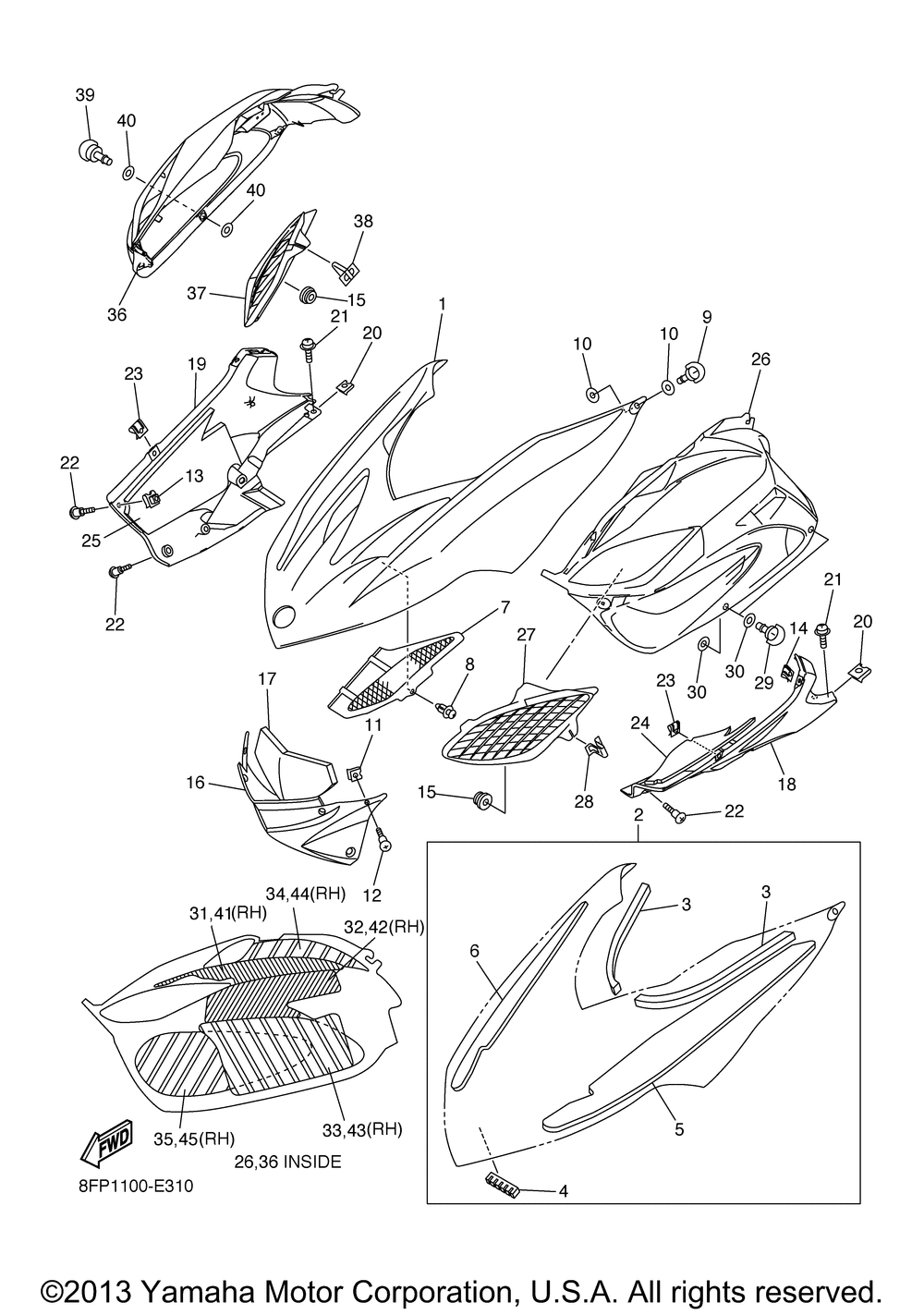

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SHROUD YB | 1 | |
| 2 | LINING SET | 1 | |
| 3 | TRIM 1 | 2 | |
| 4 | GUIDE 1 | 1 | |
| 5 | DAMPER NOISE 11 | 1 | |
| 6 | DAMPER NOISE 11 | 1 | |
| 7 | LOUVER 3 | 1 | |
| 8 | RIVET (5 per pack) | 2 | |
| 9 | HEAD (SPECIAL FASTE | 2 | |
| 10 | WASHERSPECIAL 1 (5 per pack) | 4 | |
| 11 | NUT SPRING (4ES) | 6 | |
| 12 | SCREW BINDING | 6 | |
| 13 | NUT SPRING | 2 | |
| 14 | PLATE SPRING | 2 | |
| 15 | GROMMET | 2 | |
| 16 | PANEL SUB FRAME 1 | 1 | |
| 17 | DAMPER 1 | 1 | |
| 18 | HOOD 1 | 1 | |
| 19 | HOOD 2 | 1 | |
| 21 | SCREW WITH WASHER | 2 | |
| 24 | DAMPER NOISE 18 | 1 | |
| 25 | DAMPER NOISE 19 | 1 | |
| 26 | HOOD 3 | 1 | |
| 27 | LOUVER 5 | 1 | |
| 28 | CLIP | 3 | |
| 31 | DAMPER NOISE 12 | 1 | |
| 32 | DAMPER NOISE 13 | 1 | |
| 33 | DAMPER NOISE 14 | 1 | |
| 34 | DAMPER SHROUD | 1 | |
| 35 | DAMPER | 1 | |
| 36 | HOOD ASSY 4 | 1 | |
| 37 | LOUVER 6 | 1 | |
| 41 | DAMPER NOISE 15 | 1 | |
| 42 | DAMPER NOISE 16 | 1 | |
| 43 | DAMPER NOISE 17 | 1 | |
| 44 | DAMPER SHROUD | 1 | |
| 45 | DAMPER | 1 |
