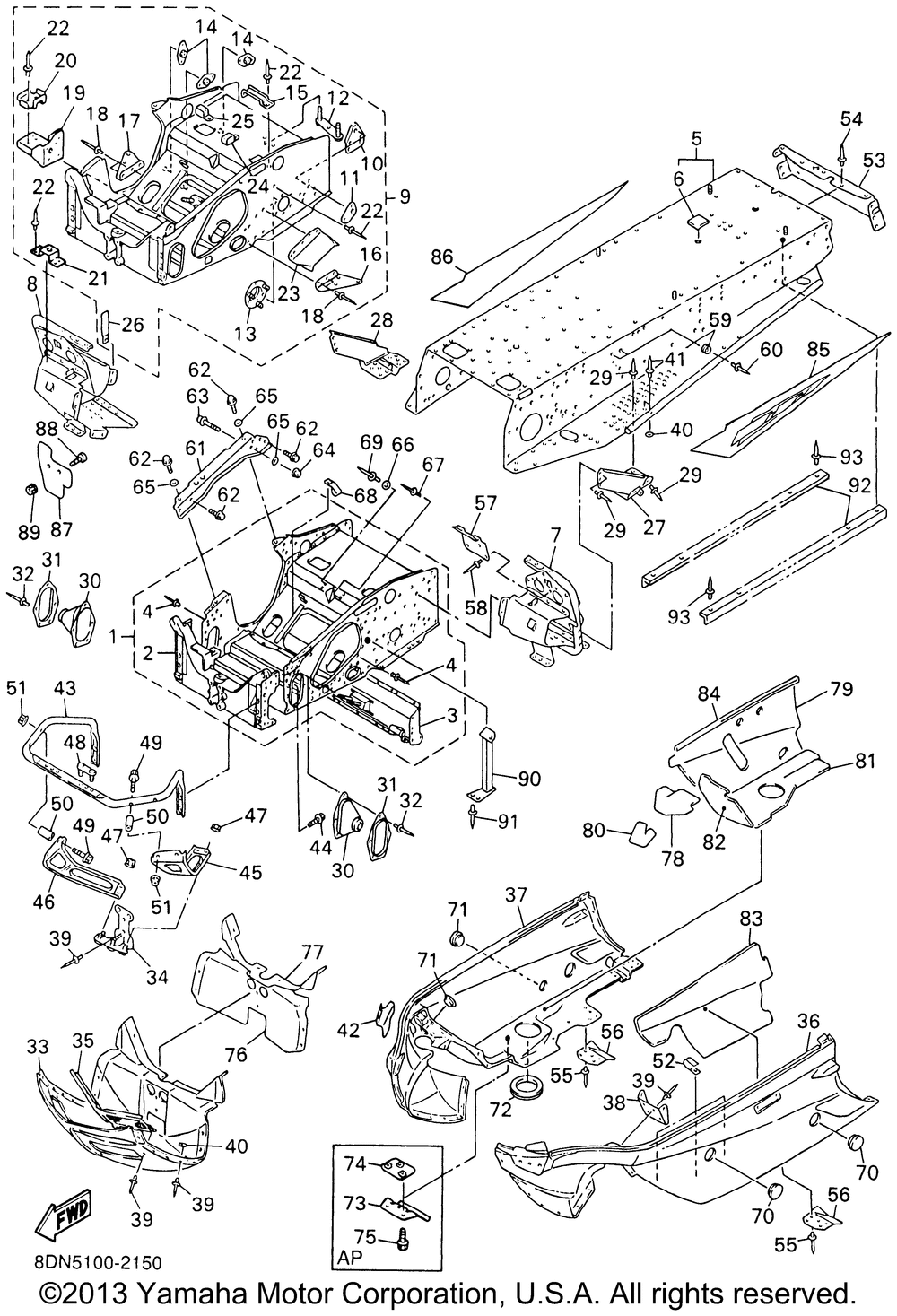

Yamaha SRX700 SRX700SG/SRX700G SRX700 SRX700SG/SRX700G FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BULKHEAD 1
3 HEAT EXCHANGER ASSY 1
4 RIVET BLIND 80
5 REAR FRAME COMP 1
6 COVER 3 2
7 FOOTREST COMP 1 1
8 FOOTREST COMP 2 1
9 FRAME CONNECTION K 1
10 BRACKET MAIN TRACK 2
11 BRKT MTRK SUSP2 2
12 BRKT 3 1
13 HSG.REINF SUBASSY3 (L.H) (USA) 1
14 BRKT CHAIN HSG 3
15 CLAMP. FUEL PIPE (USA) 2
16 PANEL SUBFRAME 6 (USA) 1
17 PANEL SUBFRAME 7 (USA) 1
18 RIVET BLIND (4.8X17 YELLOW) 4
19 STAY MUFFLER 1
20 BRACKET 6 1
21 STAY MUFFLER 1
22 RIVET BLIND 1
23 COVER 2 1
24 CLAMP 1
25 CLAMP 1
26 CLAMP 1
27 PIPE PIVOT 1 1
28 PIPE PIVOT 2 1
29 RIVET 16
30 COVER 1 2
31 PLATE STRG.BRKL1 2
32 RIVET BLIND (5 per pack) 10
33 PANEL SUB FRAME 1 1
34 PLATE BACK UP (USA) 1
35 LOUVER LOWER 1
36 FRAME UNDER 1 1
37 FRAME UNDER 2 1
38 BRACKET GUARD FIT (USA) 1
39 RIVET BLIND (4.8X18.6 BLACK) 37
40 WASHERPLATE 18
41 RIVETBLIND (4.7X16.4 BLACK) 14
42 BRACKET COOLER 1 1
43 BUMPER FRONT 2 (USA) 1
44 BOLTFLANGE(8AB) 4
45 BRACKET FRONT (USA) 1
46 BRACKET FRONT BUMPE (USA) 1
47 NUT SELF LOCKING 4
48 BRACKET 5 (USA) 2
49 BOLT FLANGE (USA) 4
50 COLLAR (USA) 4
51 Гайка с фланцем 4
52 CLAMP 3
53 REINFORCEMENT FR 1
54 RIVET BLIND (4.7X16.4 YELLOW) 9
56 PROTECTORFRAME 2
57 HOOK 1
58 RIVET BLIND 3
59 BUTTON 4
60 RIVET BLIND (81K) 4
61 REINEFORCEMENT FR 1
62 BOLT FLANGE 6
63 BOLT 1
64 NUTFLANGE (8AB) 1
65 WASHER 3
67 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 3
68 CLAMP (51Y) 1
70 PLUG 3
71 PLUG 3
72 SPACER 1
73 PROTECTOR FRAME 3 AP 1
74 PATCH 10 AP 1
75 BOLT WASHER BASED 3
76 LININGSHROUD 2 1
77 LININGSHROUD 3 (USA) 1
78 LINING SHROUD 5 1
79 LINING SHROUD 7 1
80 LININGSHROUD 8 1
81 LININGSHROUD 9 1
82 LINING SHROUD 4 1
83 DAMPER NOISE 11 1
84 TAPE5 1
85 GRAPHIC 7 1
86 GRAPHIC 8 1
87 COVER TOE HOOK 1
88 BOLT SOCKET 2
89 NUTFLANGE (4MV) 2
90 PROTECTOR FRAME 2
92 PROTECTOR FRAME 2
93 RIVET BLIND AP 16
