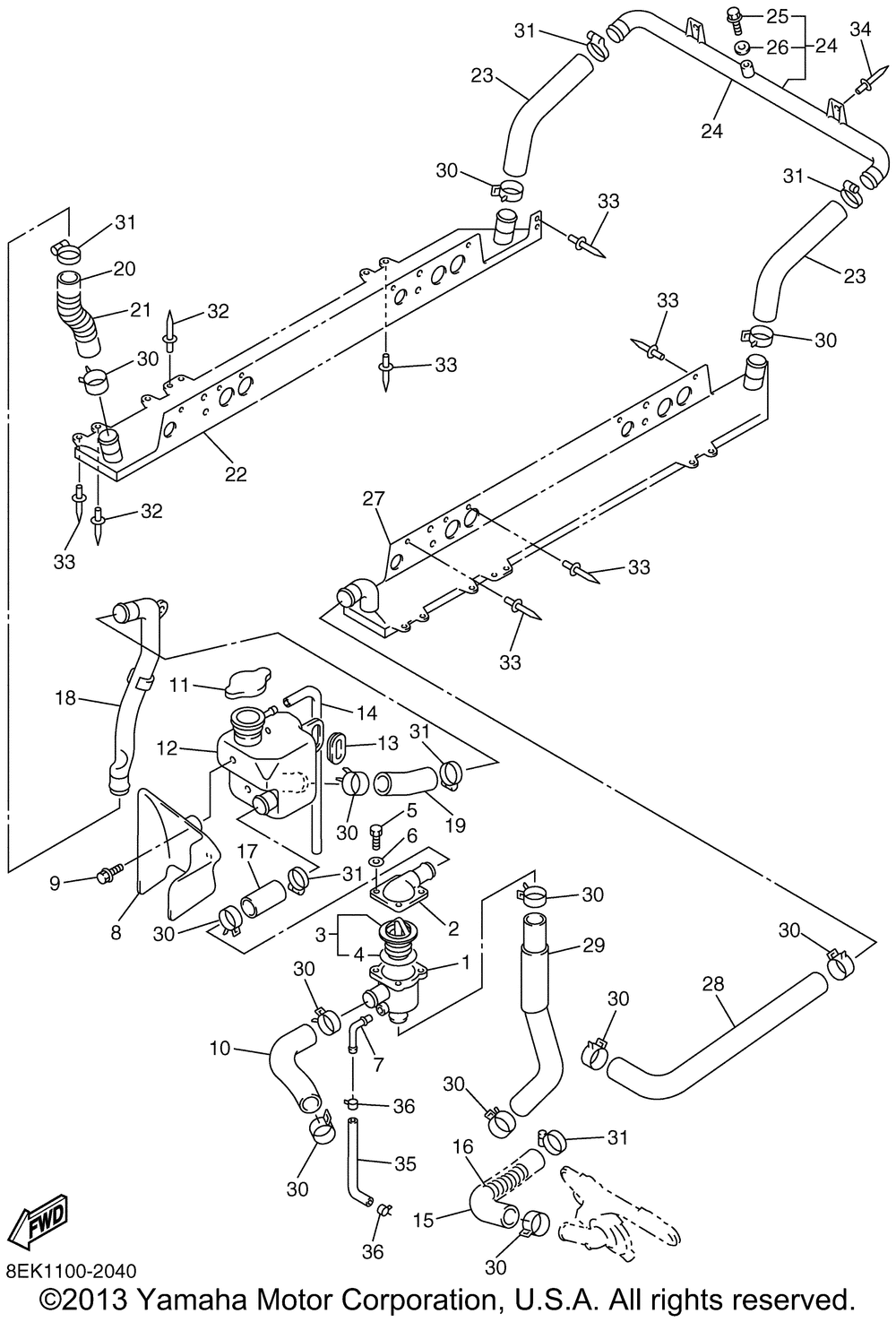

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOUSING THERMOSTAT | 1 | |
| 2 | COVER THERMOSTAT | 1 | |
| 3 | THERMOSTAT ASSY | 1 | |
| 4 | SEAL THERMOSTAT | 1 | |
| 5 | BOLT HEXAGON | 4 | |
| 6 | WASHER PLATE (6TA) | 4 | |
| 7 | JOINT HOSE 3 | 1 | |
| 8 | DUCT | 1 | |
| 9 | BOLT FLANGE | 2 | |
| 10 | PIPE 1 | 1 | |
| 11 | CAPRADIATOR | 1 | |
| 12 | TANK RESERVE | 1 | |
| 13 | GROMMET | 1 | |
| 14 | HOSE | 1 | |
| 15 | PIPE 2 | 1 | |
| 16 | SPRING COMPRESSION | 1 | |
| 17 | PIPE 9 | 1 | |
| 18 | PIPE 3 | 1 | |
| 19 | HOSE 2 | 1 | |
| 20 | HOSE3 | 1 | |
| 21 | SPRING COMPRESSIN | 1 | |
| 22 | HEAT EXCHANGER | 1 | |
| 23 | PIPE 4 | 2 | |
| 24 | HEAT EXCHANGER ASSY | 1 | |
| 25 | BOLTFLANGE | 1 | |
| 26 | WASHERSEAL | 1 | |
| 27 | HEAT EXCHANGER | 1 | |
| 28 | PIPE 5 | 1 | |
| 29 | PIPE 6 | 1 | |
| 30 | CLIPSCISSOR | 12 | |
| 31 | HOSE CLAMP ASSY | 6 | |
| 32 | RIVET BLIND | 6 | |
| 33 | RIVET BLIND (4.7X16.4 YELLOW) | 36 | |
| 35 | PIPE 7 | 1 | |
| 36 | CLIPSCISSOR | 2 |
