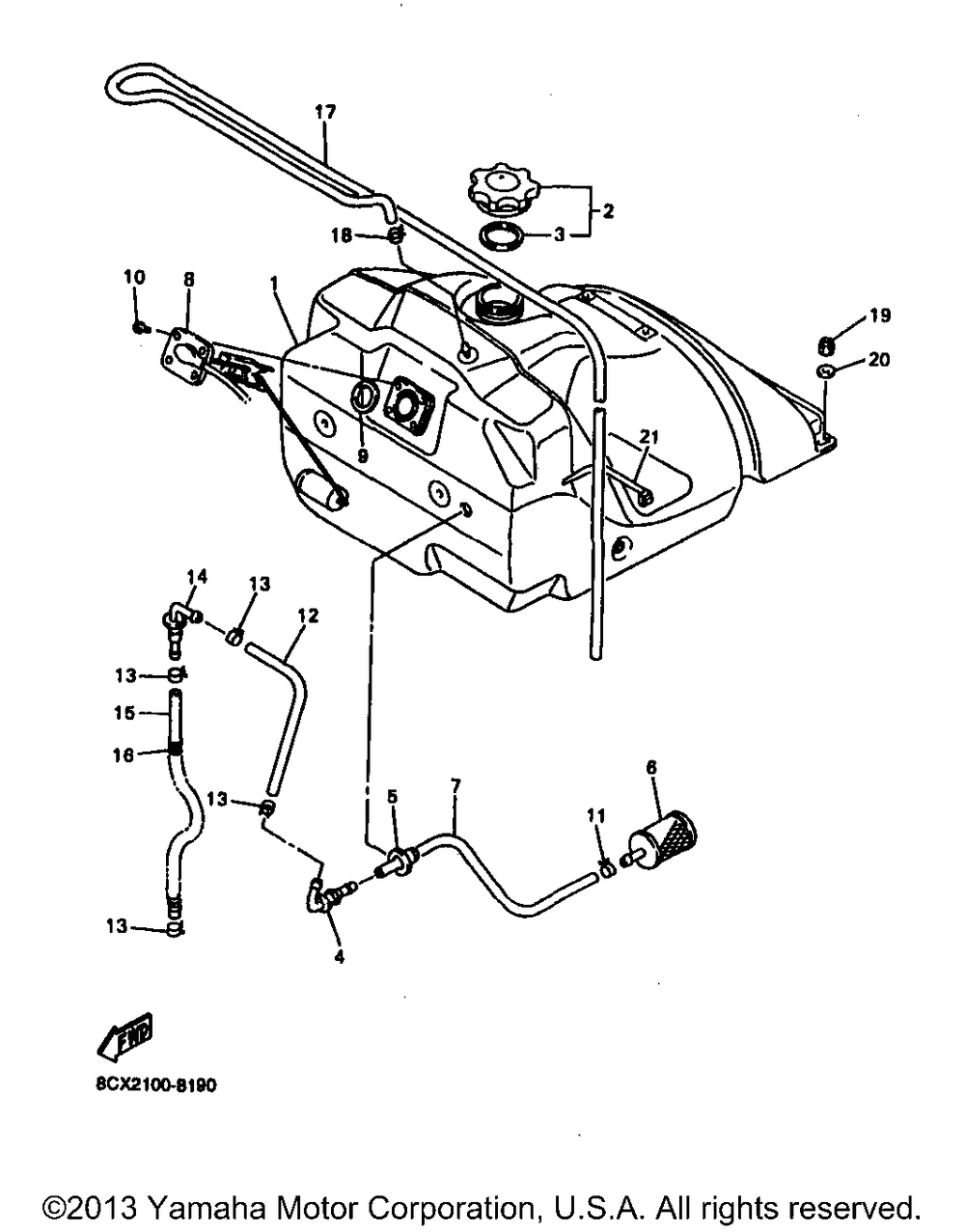

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK | 1 | |
| 2 | GAS CAP ASSY W/O GA | 1 | |
| 3 | GASKETCAP | 1 | |
| 4 | PIPE JOINT 1 | 1 | |
| 5 | GROMMET | 1 | |
| 6 | FILTER ASY | 1 | |
| 7 | TUBE FLEXIBLE 8AK | 1 | |
| 8 | SNDR UT ASYF/MTR | 1 | |
| 9 | O-RING | 1 | |
| 10 | SCREW BIND | 4 | |
| 11 | CLIPSCISSOR | 1 | |
| 12 | PIPE FUEL 1 | 1 | |
| 15 | PIPE FUEL 1 | 1 | |
| 16 | SPRINGCOMPRESSION | 1 | |
| 17 | TUBE FLEXIBLE | 1 | |
| 18 | CLIPSCISSOR FOR CAL | 1 | |
| 19 | NUTLOCK | 2 | |
| 20 | WASHERPLATE | 2 | |
| 21 | Хомут | 1 |
