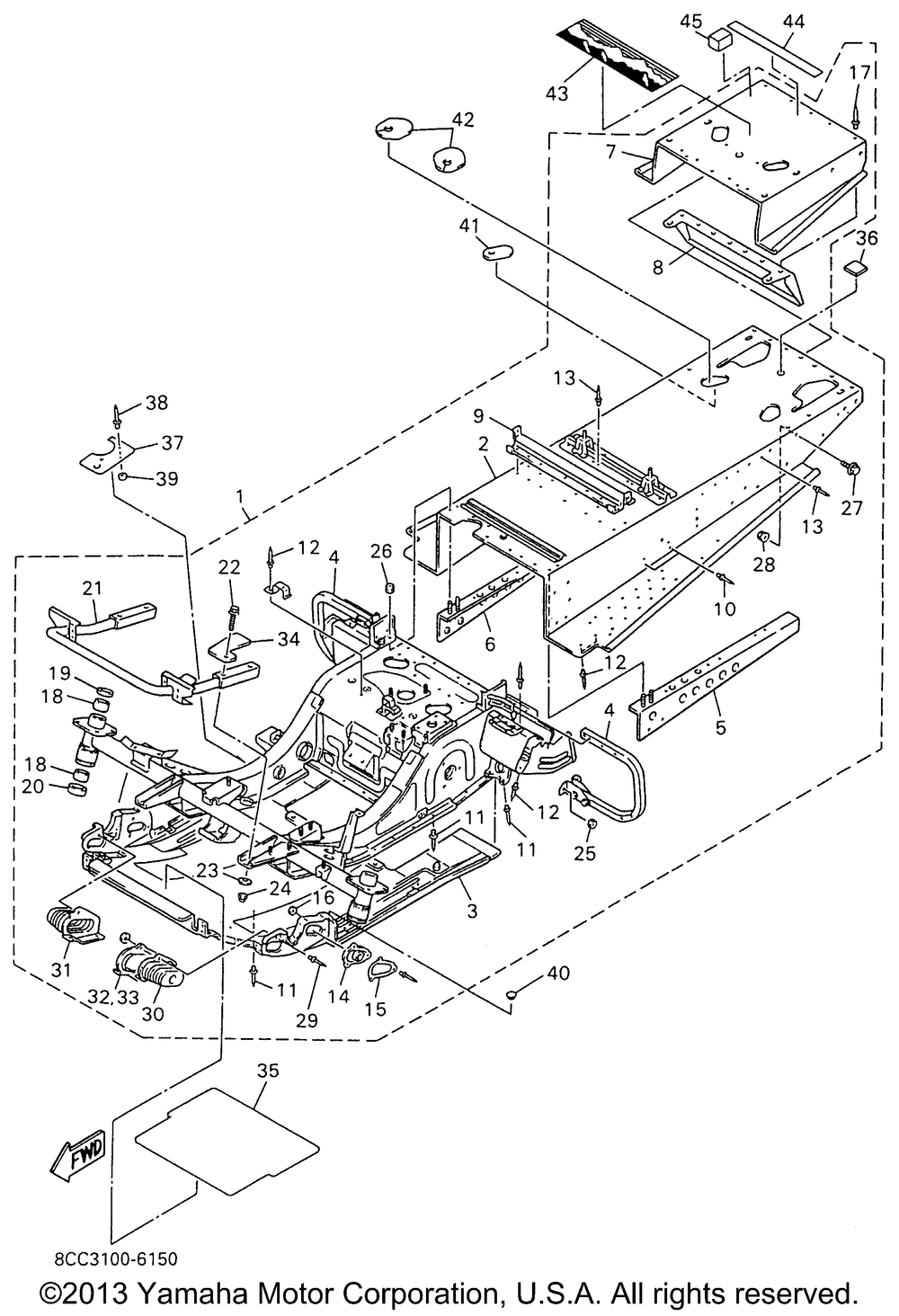

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRAME | 1 | |
| 2 | FRAME PANEL BLACK UR FOR RED | 1 | |
| 3 | BELLY PAN | 1 | |
| 4 | REINFORCEMENT | 2 | |
| 5 | PATCH 4 | 1 | |
| 6 | PATCH 5 | 1 | |
| 7 | FRAME EXT RED | 1 | |
| 8 | RNFCMNTFRAME REAR | 1 | |
| 9 | BRACKET SEAT | 1 | |
| 10 | RIVETBLIND | 4 | |
| 11 | RIVET BLIND | 39 | |
| 12 | RIVETBLIND UN | 8 | |
| 13 | . RIVET | 122 | |
| 14 | COVER 1 | 2 | |
| 15 | SPACER | 2 | |
| 16 | WASHER PLATE (90201-04325-00 ) | 6 | |
| 17 | RIVET BLIND (5 per pack) | 6 | |
| 18 | BUSHBIMETAL FORM | 4 | |
| 19 | OIL SEALSD-TYPE | 2 | |
| 20 | OIL SEALSW-TYPE | 2 | |
| 21 | BUMPERFRONT 2 | 1 | |
| 22 | BOLT FLANGE (USA) | 4 | |
| 23 | WASHERPLATE | 4 | |
| 24 | NUTLOCK (USA) | 4 | |
| 25 | NUTFLANGE | 4 | |
| 27 | BOLTFLANGE (4MY) | 2 | |
| 28 | NUTFLANGE (4MV) | 2 | |
| 29 | RIVET BLIND (5 per pack) | 6 | |
| 30 | COVER 1 | 1 | |
| 31 | COVER 2 | 1 | |
| 32 | PLATESTRG BRKT 1 | 1 | |
| 33 | PLATESTRG BRKT 2 | 1 | |
| 34 | COVER 3 | 1 | |
| 35 | SHIELDHEAT | 1 | |
| 36 | DAMPER (5 per pack) | 2 | |
| 37 | SHIELDNOISE | 1 | |
| 40 | PLUGSPEC'L SHAPE | 1 | |
| 41 | PATCH 5 | 4 | |
| 42 | PATCH 5 | 2 | |
| 43 | EMBLEM 1 | 1 | |
| 44 | LABEL WARNING | 1 | |
| 45 | SPACER | 2 |
