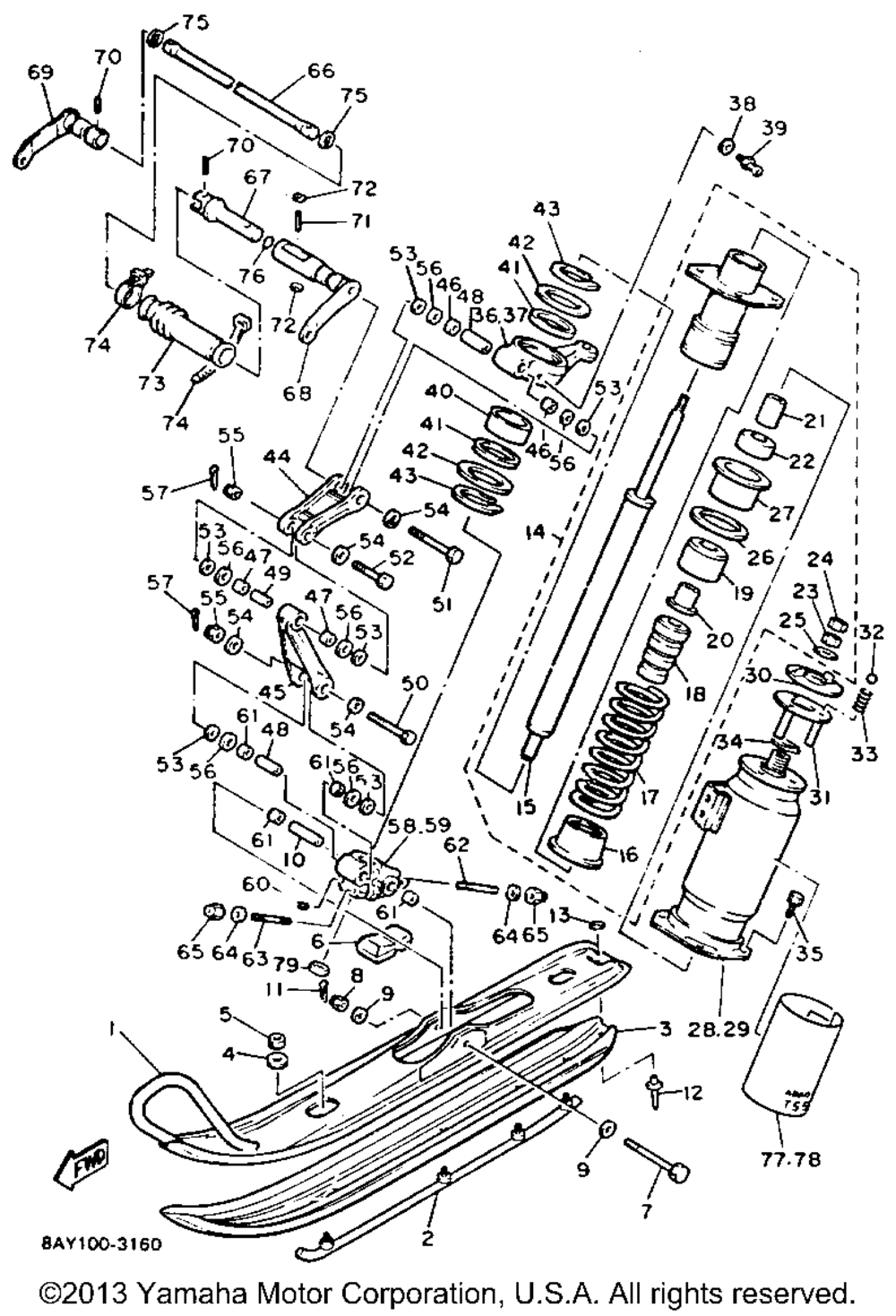

Yamaha EXCITER II SX EX570SXT EXCITER II SX EX570SXT SKI
SKI
№ Наименование Примечание Кол-во
1 SKI 1 2
2 RUNNER 1 SKI 2
3 RUNNER 2 2
4 WASHER (5 per pack) 8
5 NUTU 8
6 STOPPER 1 2
7 BOLTWITH HOLE 2
8 NUTNYLON 2
9 WASHERPLATE 4
10 COLLAR 2
11 PINCOTTER 2
12 RIVET BLIND 4
13 WASHER PLATE 2
14 ABSORBER ASY 1 2
15 DAMPER SUB-ASSY. 1
16 SEATSPRING 2 1
17 SPRINGCOMPRESSION 1
18 BUMPSTOP 1
19 PLATEBACK UP 1
20 COLLAR 1
21 COLLAR 1
22 WASHER 1
23 NUTHEXAGON 1
24 NUT (6L2) 1
25 WASHERPLATE 1
26 WASHERPLATE 1
27 SEATSPRING 1 1
28 HOLDERABSORBER (L.H) 1
29 HOLDERABSORBER 2 (R.H) 1
30 NUT 1
31 STOPPER 2 1
32 BALL 3/16 (5 per pack) 1
33 SPRINGCOMPRESSION 1
34 CIRCLIP 1
35 BOLT HEXAGON 8
36 ARMOUTSIDE 1 (LH) 1
37 ARMOUTSIDE 2 (R H) 1
38 WASHERPLATE 2
39 NIPPLEGREASE 2
40 BUSHBIMETAL FORM 2
41 OIL SEALSDO-TYPE 4
42 WASHERPLATE (T=2.0) UR UN 4
42 WASHERPLATE (T=1.0) UR UN 4
43 CIRCLIPS-TYPE 4
44 ARMFRONT 1 2
45 ARMFRONT 2 2
46 ВТУЛКА (BUSH, BIMETAL FORMED (8L0)) (10216170/050919/0161719, ЯПОНИЯ) 4
47 Втулка (BUSH, BIMETAL FORMED (8L0)) (10005030/220119/0001962, ЯПОНИЯ) 4
48 COLLAR 4
49 COLLAR 2
50 BOLTWITH HOLE 2
51 BOLT 2
52 BOLTWITH HOLE 2
53 WASHERPLATE 12
54 WASHERPLATE 8
56 WASHERSPEC'L SHAP (5 per pack) 12
58 BRACKET1 1
59 BRACKET 2 1
60 BOLTSET 2
62 BOLTSTUD 3 2
63 BOLTSTUD 3 2
64 WASHER (5 per pack) 4
65 NUTLOCK 4
66 BARSTABLZR FRONT 1
67 LINKSTABLZR FRONT 1
68 JOINT STABILIZER 1
69 JOINT STABILIZER 1
70 BOLTSET 2
71 PINDOWEL AP (5 per pack) 1
72 SLIDER AP 2
73 COVERSTABLZR FRT 1
74 Хомут 2
75 CIRCLIPS-TYPE 2
76 O-RING (82M) AP 1
77 EMBLEM 15 1
78 EMBLEM 16 1
79 CAP 1 2
