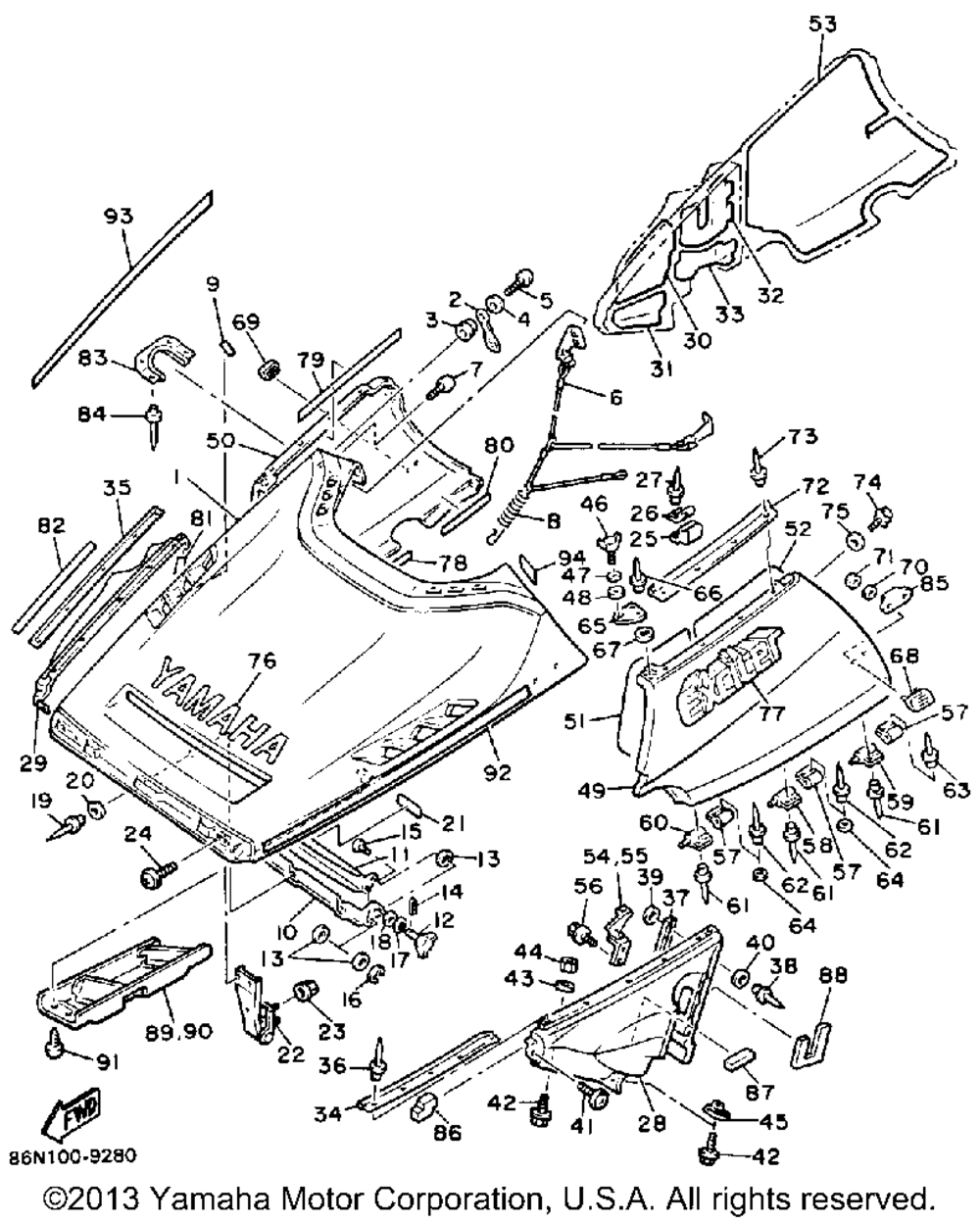

Yamaha EXCITER DELUXE (ELEC START) EX570EN EXCITER DELUXE (ELEC START) EX570EN SHROUD
SHROUD
№ Наименование Примечание Кол-во
1 SHROUD ASSY 1
2 BODYLATCH 1 2
3 COLLAR 2
4 WASHERPLATE 4
5 BOLTSOCKET 2
6 STOPPERSHROUD 1
7 BOLTSOCKET 2
8 CLAMPROD (USA) 1
9 TAPE 4 2
10 STAY 1 1
11 STAY 2 1
12 BOLTWING 2
13 WASHERPLATE 6
14 PINHAIR 2
15 PINSPEC'L SHAPE 2
16 CLIP 2
17 WASHER(3SX) 2
18 WASHER 2
19 RIVETBLIND (4.8X15.1 BLACK) 4
20 WASHER PLATE 4
21 LABELWARNING 2 UR 1
22 HINGE ASY 2
23 NUT FLANGE 4
24 SCREWWITH WASHER 4
25 STOPPER 2
26 WASHER SPECIAL 2
27 RIVETBLIND 4
28 HOOD 1 1
29 HOOD 2 1
30 LININGSHROUD 2 1
31 LINING SHROUD 3 1
32 LININGSHROUD 4 1
33 LININGSHROUD 5 1
34 BUSH RUBBER 1 1
35 BUSHRUBBER 1 1
36 RIVETSPEC'L SHAPE (5 per pack) 10
37 TRIM 1 2
38 RIVETBLIND 6
39 WASHERPLATE 6
40 WASHERPLATE 6
41 SCREWWITH WASHER (5 per pack) 4
42 BOLT WITH WASHER 6
43 WASHER (6TA) 2
44 NUTFLANGE 2
45 NUT 2
46 BOLTWING 2
47 WASHER PLATE 2
48 WASHERPLATE 2
49 HOOD 3 UR GRAY 1
50 HOOD 4 UR GRAY 1
51 DAMPERNOISE 14 1
52 DAMPERNOISE 15 1
53 LININGSHROUD 6 1
54 BRACKET 3 1
55 BRACKET4 1
56 BOLT FLANGE 4
57 BRACKET1 6
58 BRACKET 2 2
59 BRACKET 2 2
60 BRACKET 2 2
61 RIVETBLIND (4.8X12.3) 12
62 RIVETBLIND AP 8
63 RIVETBLIND UN 4
64 WASHER PLATE 8
65 STAY 3 2
66 RIVETBLIND 4
68 PROTECTOR 1 1
69 PROTECTOR 2 1
70 WASHERPLATE (5 per pack) 4
71 NUT FLANGE (4GB) 4
72 BUSH RUBBER 2 2
74 HOLDERLATCH 2
75 PLATE 2
76 ORNAMENT 1 UR FOR BLACK 1
77 ORNAMENT 2 2
78 TAPE 1 1
79 TAPE 2 2
80 TAPE 3 2
81 TAPE 3 2
82 TAPE 1 1
83 PATCH 10 1
84 RIVETBLIND (5 per pack) 4
85 DAMPER 1 2
87 TAPE5 1
88 DAMPERNOISE 18 1
89 PLATE 1 1
90 PLATE 2 1
91 SCREW TRUSS (5 per pack) 8
92 EMBLEM 3 1
93 EMBLEM 4 1
94 INDICATORCOCK 1
