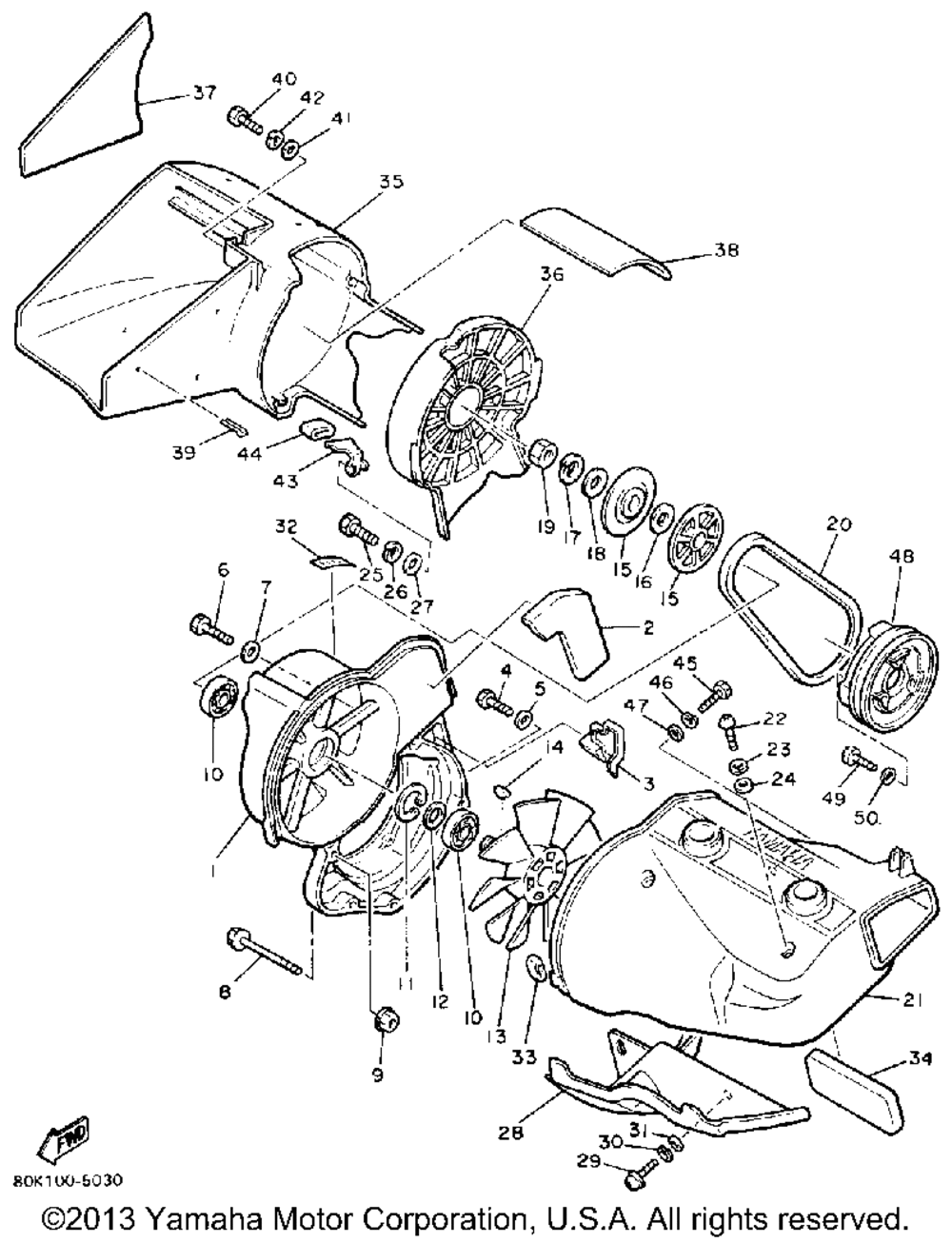

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CASE FAN | 1 | |
| 2 | DAMPERSHROUD 6 | 1 | |
| 3 | DAMPERAIR SHRD 1 | 1 | |
| 4 | BOLT (661) | 2 | |
| 5 | WASHER (5 per pack) | 2 | |
| 6 | BOLTHEX | 1 | |
| 8 | BOLT FLANGE (95822-08090) | 2 | |
| 9 | Гайка с фланцем | 2 | |
| 10 | BEARING | 2 | |
| 11 | CIRCLIPR-TYPE | 1 | |
| 12 | WASHERPLATE | 1 | |
| 13 | FAN | 1 | |
| 14 | KEYWOODRUFF | 1 | |
| 15 | PULLEY 2 | 2 | |
| 16 | WASHERCLAW (1.0T) UR UN | 1 | |
| 16 | WASHERCLAW (0.5T) UR UN | 1 | |
| 17 | WASHER(JN5) | 1 | |
| 19 | NUT | 1 | |
| 20 | BELT | 1 | |
| 21 | AIR SHROUD CYLINDER 1 | 1 | |
| 22 | SCREWPAN HEAD | 2 | |
| 23 | WASHERSPRING (5 per pack) | 2 | |
| 24 | WASHER PLATE (6TA) | 2 | |
| 25 | BOLT HEXAGON | 1 | |
| 28 | AIR SHROUDCYL 2 (USA) | 1 | |
| 32 | LABELCAUTION (USA) | 1 | |
| 33 | DAMPERAIR SHRD 1 | 2 | |
| 34 | DAMPERENG MOUNT 2 | 1 | |
| 35 | DUCT | 1 | |
| 36 | COVER FAN CASE | 1 | |
| 37 | DAMPER DUCT 2 | 1 | |
| 38 | DAMPER DUCT 3 | 1 | |
| 39 | PINCOTTER | 6 | |
| 40 | BOLTHEX SKT HEAD | 2 | |
| 41 | WASHER PLATE | 2 | |
| 43 | STAY 1 | 1 | |
| 48 | PULLEYSTARTER (USA) | 1 | |
| 49 | BOLT (682) | 3 |
