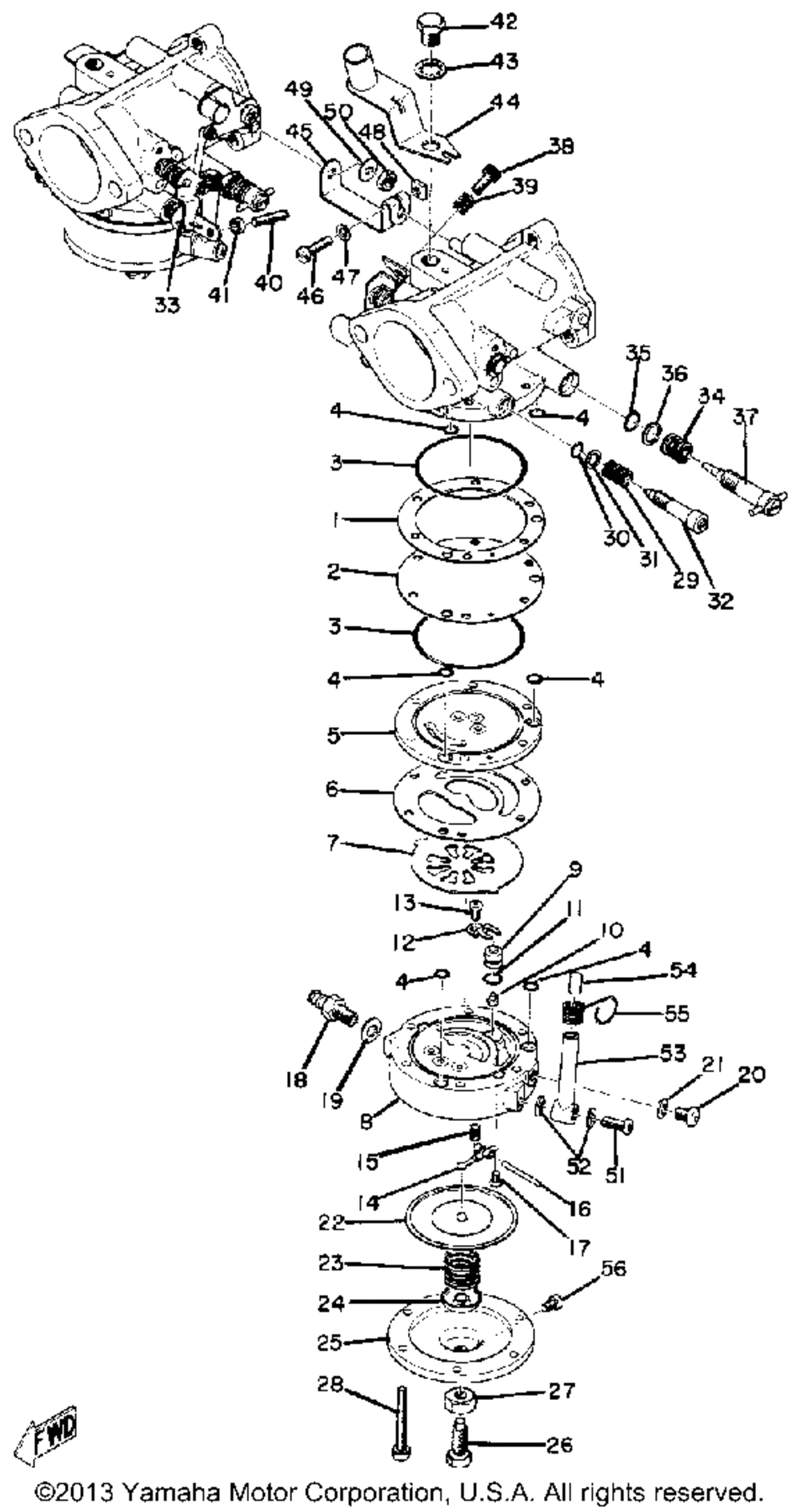

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | GASKET | 2 | |
| 1 | CARBURETOR ASY 1 | 1 | |
| 2 | DIAPHRAGMPUMP | 2 | |
| 2 | CARBURETOR ASY 2 | 1 | |
| 3 | O-RING | 4 | |
| 4 | O-RING | 12 | |
| 5 | BODYPUMP 1 | 2 | |
| 6 | GASKET | 2 | |
| 7 | VALVECHECK | 2 | |
| 8 | BODYPUMP 2 | 2 | |
| 9 | VALVE SEAT ASY (K1.4) | 2 | |
| 10 | PINFLOAT | 2 | |
| 11 | O-RING | 2 | |
| 12 | PLATEPIN FITTING | 2 | |
| 13 | SCREWPAN HEAD (5 per pack) | 2 | |
| 14 | ARMFLOAT | 2 | |
| 15 | SPRING | 2 | |
| 17 | . .SCREW COUNTERSUNK | 2 | |
| 18 | JOINT | 2 | |
| 19 | WASHER | 2 | |
| 20 | SCREW | 2 | |
| 21 | WASHER | 2 | |
| 22 | DIAPHRAGM | 2 | |
| 23 | SPRING | 2 | |
| 25 | BODYPUMP 3 | 2 | |
| 26 | SCREWSTOP | 2 | |
| 27 | NUT | 2 | |
| 29 | SPRINGAJST SCREW | 2 | |
| 30 | O-RING | 2 | |
| 31 | WASHER | 2 | |
| 32 | SCREWADJUST | 1 | |
| 33 | SCREWADJUST | 1 | |
| 34 | SPRINGAJST SCREW | 2 | |
| 35 | O-RING | 2 | |
| 36 | WASHER | 2 | |
| 37 | SCREWADJUST | 2 | |
| 38 | SCREWSTOP | 1 | |
| 39 | SPRINGAJST SCREW | 1 | |
| 40 | SCREW | 1 | |
| 41 | NUT | 1 | |
| 42 | BOLT (5 per pack) | 1 | |
| 43 | WASHERIN.TOOTH | 1 | |
| 44 | BRACKETTHROTTLE | 1 | |
| 45 | CONNECTOR | 1 | |
| 46 | . . .SCREW PAN HEAD | 1 | |
| 47 | WASHER (5 per pack) | 1 | |
| 48 | NUT | 1 | |
| 49 | WASHER (806-14593-00) | 1 | |
| 50 | NUT (5 per pack) | 1 | |
| 51 | SCREW | 2 | |
| 52 | WASHER | 4 | |
| 53 | PIPEAIRVENT | 2 | |
| 54 | CAPBLIND | 2 | |
| 55 | CLIP | 2 | |
| 56 | SCREWPAN HEAD (98502-04006) | 2 |
