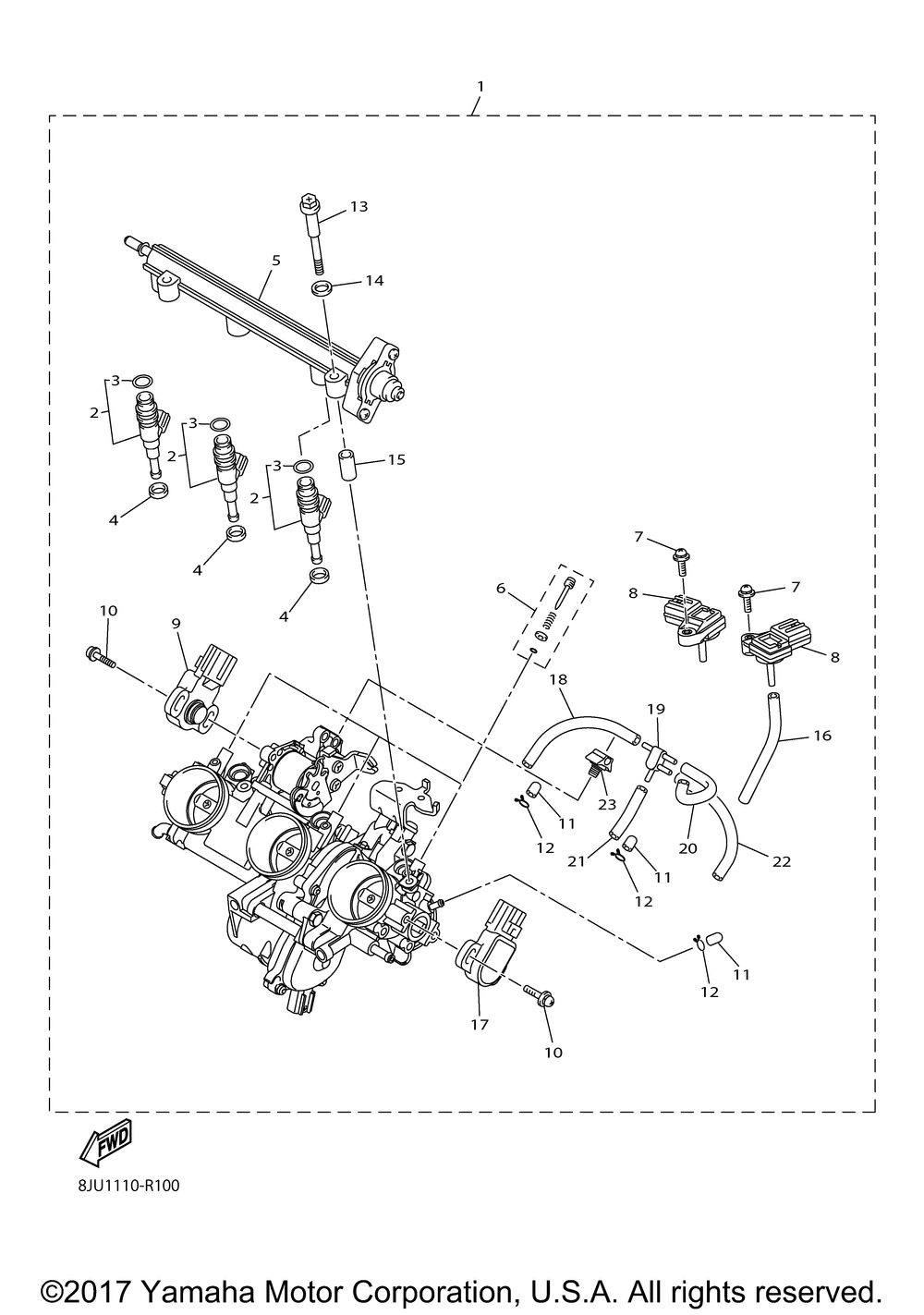

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | THROTTLE BODY ASSY | 1 | |
| 2 | INJECTOR ASSY | 3 | |
| 3 | O-RING | 1 | |
| 4 | GASKET MANIFOLD | 3 | |
| 5 | PIPE INLET ASSEMBLY | 1 | |
| 6 | ADJUST SCREW SET | 3 | |
| 7 | SCREW | 2 | |
| 8 | SENSOR PRESSURE | 2 | |
| 9 | ACCELERATOR SENSOR A | 1 | |
| 10 | SCREW | 4 | |
| 11 | CAP | 3 | |
| 12 | CLIPPIPE | 3 | |
| 13 | BOLT 1 | 2 | |
| 14 | WASHER | 2 | |
| 15 | COLLAR | 2 | |
| 16 | PIPE | 1 | |
| 17 | THROTTLE SENSOR ASSY | 1 | |
| 18 | HOSE VACUUM SENSING | 1 | |
| 19 | CONNECTOR | 1 | |
| 20 | PIPE | 1 | |
| 21 | PIPE | 1 | |
| 22 | HOSE | 1 | |
| 23 | HOLDER | 1 |
